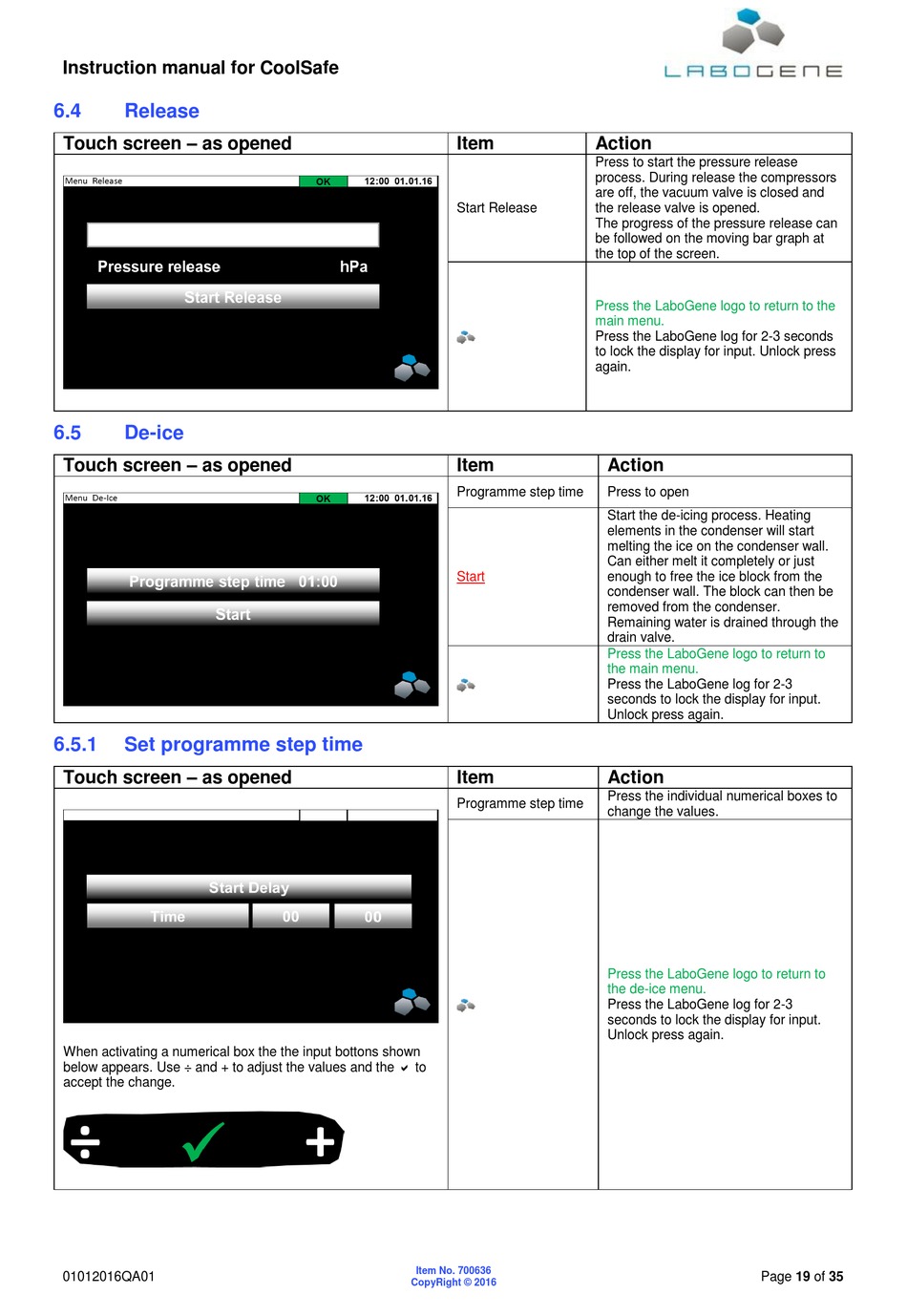

Instruction manual for CoolSafe
6.4

Release

Touch screen – as opened
6.5

De-ice

Touch screen – as opened
6.5.1

Set programme step time

Touch screen – as opened
When activating a numerical box the the input bottons shown
below appears. Use ÷ and + to adjust the values and the  to
accept the change.
01012016QA01
Item
Start Release
Item
Programme step time
Start
Item
Programme step time
Item No. 700636
CopyRight © 2016
Action
Press to start the pressure release
process. During release the compressors
are off, the vacuum valve is closed and
the release valve is opened.
The progress of the pressure release can
be followed on the moving bar graph at
the top of the screen.
Press the LaboGene logo to return to the
main menu.
Press the LaboGene log for 2-3 seconds
to lock the display for input. Unlock press
again.
Action
Press to open
Start the de-icing process. Heating
elements in the condenser will start
melting the ice on the condenser wall.
Can either melt it completely or just
enough to free the ice block from the
condenser wall. The block can then be
removed from the condenser.
Remaining water is drained through the
drain valve.
Press the LaboGene logo to return to
the main menu.
Press the LaboGene log for 2-3
seconds to lock the display for input.
Unlock press again.
Action
Press the individual numerical boxes to
change the values.
Press the LaboGene logo to return to
the de-ice menu.
Press the LaboGene log for 2-3
seconds to lock the display for input.
Unlock press again.
Page 19 of 35
