Installation

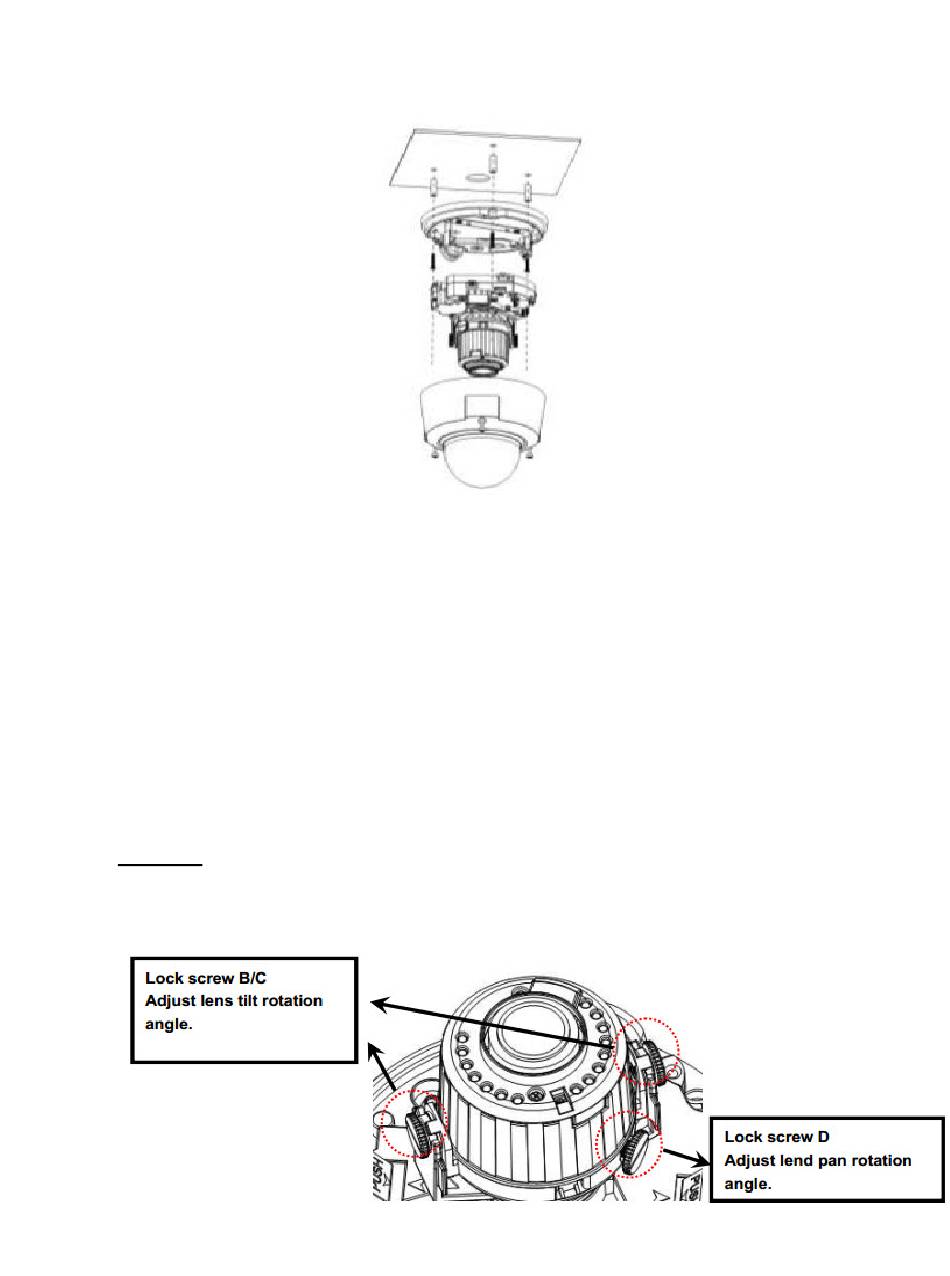

Please follow the steps listed below to install the ICIP-D2000VIR. Please refer the image above for
reference.
•
Begin by unscrewing the top portion of the housing. You will then see three screws to un-
attach the mounting plate of the camera. See above.
•
Please draw the installation holes in the installation surface and then mark four
expansion bolts holes in the surface. Insert four anchors in the holes and secure firmly.
•
Please line up the installation holes of the bottom of the pendant mount bracket to the
installation holes in the surface. Then insert the four bolts to the holes of the bottom of
the bracket. Finally fasten the device on the installation surface.
Focusing: To focus, you will notice a small joystick inside the camera (refer to structure
images). The joystick will zoom/focus for the lens using its motorization. To adjust the
position of the lens housing, follow the guide below to loosen the surrounding screws.
