4. Package

Full HD Armor Dome Instruction manual
Camera
1EA
Sponge plate L-Wrench 1.5mm
1EA & Socket Set Screw 1EA
CVBS CABLE Adaptor plate
1EA
Star Wrench
1EA
DC Male Cable 300mm
1EA
6
Full HD(HD-SDI)
CCTV Armor Dome camera
INSTRUCTION MANUAL
Please read this manual carefully before installation and operation of the product.
120503-1
HD-SDI CABLE
1EA 1EA
Mounting screws
4EA
Tapping Screw
1EA 4EA
ROUND
88.0mm
8-DRILLING HOLE
Sticker Plastic anchor
1EA 4EA
Tapping Screw
4EA

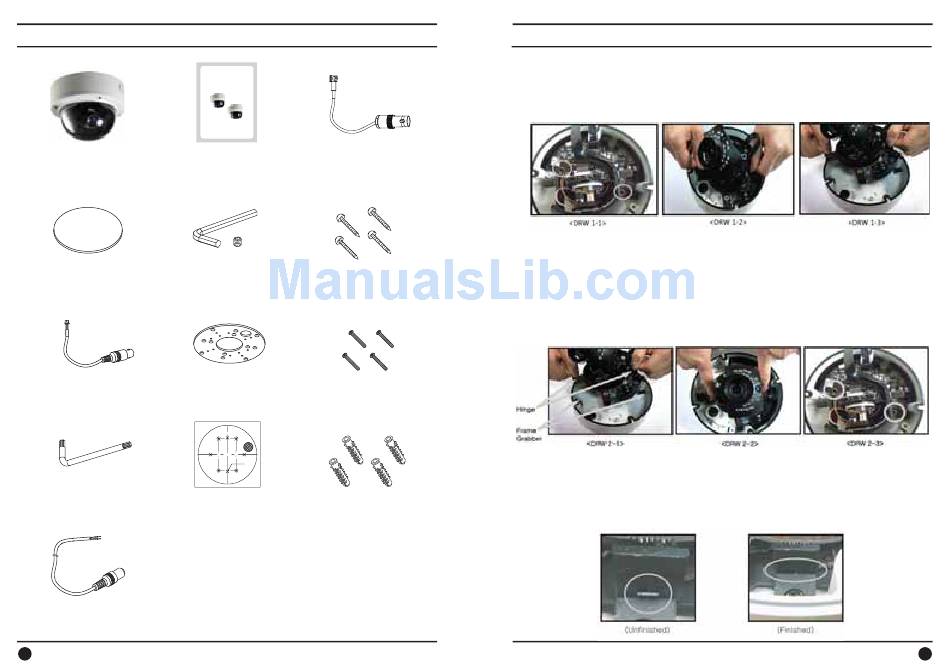

5. Installation

5-1. How to separate the camera-set from the base.
To install VDA110FHD(IR), it is required to separate the camera-set from the base first.
Please follow below process.
① Take off 4*8 Screws (2 pcs) as in Drawing 1-1.
② Grab the two hinges at both ends with both hands. Push the hinges inward to lock off the
camera-set from the base as in Drawing 1-2.
③ Lift up the camera-set from the base as in Drawing 1-3.
④ After separation, please fix the camera base tightly first onto the wall, ceiling, etc.
5-2. How to reposition the camera-set onto the base after fixing the
camera base.
① Locate the camera-set with the hinges right onto the frame Grabber and gently push
down the camera-set onto the base as in the DRW 2-1.
② Push the camera-set down onto the base with enough strength until it sounds
'click'as in the DRW 2-2. The hinges clip the camera-set onto the base with its tension.
When no sound heard, please push the camera-set down again as in the pictures below.
③ Fix the camera with 4*8 Screws into the base as in the DRW 2-3.
