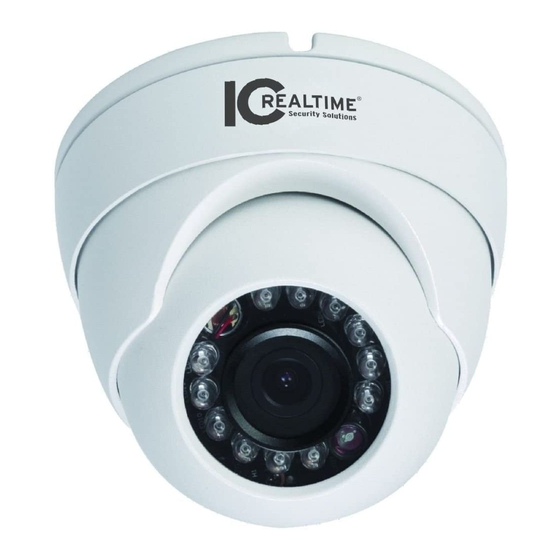

- Page 1 HD IR Waterproof Network Dome Camera User’s Manual Version 4.3.0...
- Page 2 Welcome Thank you for purchasing our Network camera! This user’s manual is designed to be a reference tool for your system. Please read the following safeguard and warnings carefully before you use this series product! Please keep this user’s manual well for future reference!
-
Page 3: Important Safeguards And Warnings
Important Safeguards and Warnings 1．Electrical safety All installation and operation here should conform to your local electrical safety codes. The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited power source is rated 12V DC or 24V AC in the IEC60950-1. (Refer to general introduction) Please note: Do not connect two power supplying sources to the device at the same time;... - Page 4 Do not touch the CCD (CMOS) optic component. You can use the blower to clean the dust on the lens surface. Always use the dry soft cloth to clean the device. If there is too much dust, please use the water to dilute the mild detergent first and then use it to clean the device.
-
Page 5: Table Of Contents
Table of Contents General Introduction ......................1 Overview ........................1 Features ........................1 Specifications ......................2 Structure ..........................4 Components ......................4 Framework and Dimension ..................5 Device Installation ......................... 6 Installation Steps ...................... 6 Quick Configuration Tool ...................... 8 Overview ........................ -
Page 6: General Introduction
1 General Introduction 1.1 Overview This series network camera integrates the traditional camera and network video technology. It adopts video data collection, transmission together. It can connect to the network directly without any auxiliary device. This series network camera uses standard H.264 video compression technology, which maximally guarantees the video quality. -
Page 7: Specifications
1.3 Specifications Please refer to the following sheet for network camera performance specification. Model ICIP D1300AIR ICIP D2000AIR ICIP D3000AIR Parameter Main Processor High performance DSP Embedded LINUX System Support real-time network, local record, and remote operation at the Resources same time. - Page 8 Lens Interface M12. Lens is the default accessories 396 (18*22) detection zones; sensitivity level ranges from 0 to 100; area threshold ranges from 0 to 100. Motion Detect Activation event: video storage, image snapshot, log, email function and etc. Manual >Video detect>Schedule Record Priority Storage Network storage...
-
Page 9: Structure
2 Structure 2.1 Components You can refer to the following figure for multiple-function combination cable information. See Figure Figure 2-1 Multiple-function combination cable Please refer to the following sheet for detailed information. Component Component Name Component 1 Device lens Component 2 Dome body Port Name... -
Page 10: Framework And Dimension
2.2 Framework and Dimension Please refer to the following two figures for dimension information. The unit is mm. See Figure 2-2 and Figure 2-3. Figure 2-2 Dimension illustration 1 Figure 2-3 Dimension illustration 2... -
Page 11: Device Installation
3 Device Installation 3.1 Installation Steps Important Before the installation, please make sure the installation environments can at least support 3x weight of the camera. Please follow the steps listed below to install the device. Please refer to Figure 3-1 for reference. Step 1 Turn clockwise to remove the decoration ring from the snap joints. - Page 12 Figure 3-1 Device installation illustration 1...
-
Page 13: Quick Configuration Tool
4 Quick Configuration Tool 4.1 Overview Quick configuration tool can search current IP address, modify IP address. At the same time, you can use it to upgrade the device. Please note the tool only applies to the IP addresses in the same segment. 4.2 Operation Double click the “ConfigTools.exe”... - Page 14 In the configuration tool search interface (Figure 4-1), please select a device IP address and then double click it to open the login interface. Or you can select an IP address and then click the Login button to go to the login interface. See Figure 4-3. In Figure 4-3, you can view device IP address, user name, password and port.
-
Page 15: Web Operation
5 Web Operation This series network camera products support the Web access and management via PC. Web includes several modules: Monitor channel preview, system configuration, alarm and etc. 5.1 Network Connection Please follow the steps listed below for network connection. ... - Page 16 Figure 5- 2 Web login After you successfully logged in, please install WEB plug-in unit. Please refer to the Web Operation Manual included in the resource CD for detailed operation instruction. See Figure 5- 3. Figure 5- 3 Web monitoring window...
-
Page 17: Faq
6 FAQ I can not boot up Please click RESET button for at least five seconds to restore factory default setup. the device or operate properly. The water leakage The unauthorized front or rear cap remove many result in water occurred. -
Page 18: Appendix Toxic Or Hazardous Materials Or Elements
Appendix Toxic or Hazardous Materials or Elements Toxic or Hazardous Materials or Elements Component Name Cr VI PBDE Circuit Board ○ ○ ○ ○ ○ ○ Component ○ ○ ○ ○ ○ ○ Device Case ○ ○ ○ ○ ○ ○...
