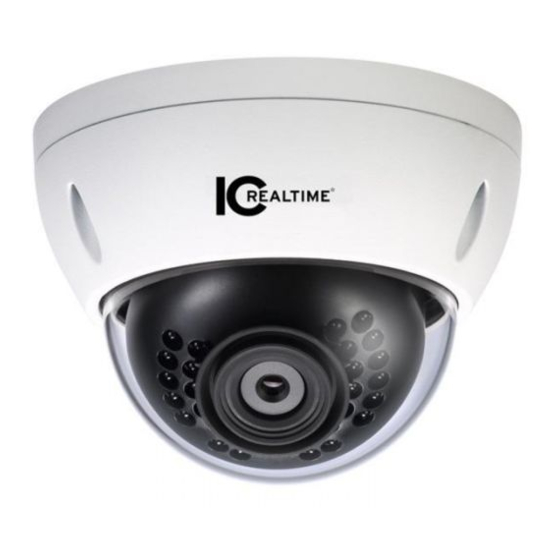

- Page 1 HD IR Vandal Proof Network Dome Camera User’s Manual Version 1.1.1...
- Page 2 Welcome Thank you for purchasing our Network camera! This user’s manual is designed to be a reference tool for your system. Please read the following safeguard and warnings carefully before you use this series product! Please keep this user’s manual well for future reference!
-
Page 3: Important Safeguards And Warnings
Important Safeguards and Warnings 1．Electrical safety All installation and operation here should conform to your local electrical safety codes. The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited power source is rated 12V DC or 24V AC in the IEC60950-1. (Refer to general introduction) Please note: Do not connect two power supplying sources to the device at the same time;... - Page 4 Do not touch the CCD (CMOS) optic component. You can use the blower to clean the dust on the lens surface. Always use the dry soft cloth to clean the device. If there is too much dust, please use the water to dilute the mild detergent first and then use it to clean the device.
-
Page 5: Table Of Contents
Table of Contents General Introduction ........................1 Overview ........................1 Features ......................... 1 Specifications ........................ 2 Structure ............................4 Components ........................4 Framework and Dimension ..................4 Device Installation ........................7 Installation Steps ......................7 Quick Configuration Tool ......................10 Overview ........................ -
Page 6: General Introduction
1 General Introduction 1.1 Overview This series network camera integrates the traditional camera and network video technology. It adopts video data collection, transmission together. It can connect to the network directly without any auxiliary device. This series network camera uses standard H.264 video compression technology, which maximally guarantees the video quality. -
Page 7: Specifications
Support motion detect. Backlight compensation: screen auto split to realize backlight compensation to adjust the bright. Support video watermark function to avoid vicious video modification. Built-in IR light. Support IR night vision. 1.3 Specifications Please refer to the following sheet for network camera performance specification. Model ICIP D3000IR Parameter... - Page 8 Support flip function. Snapshot Max 1f/s snapshot. File extension name is JPEG. Privacy Mask Supports max 4 privacy mask zones Video Setup Support parameter setup such as bright, contrast. Video Channel title, time title, motion detect, tampering, overlay Information Lens 3.6mm.
-
Page 9: Structure
2 Structure 2.1 Components You can refer to the following figure for component structure. See Figure 2-1 Figure 2-1 Component structure Please refer to the following sheet for detailed information. Component Component Name Component 1 Dome body Component 2 Dome enclosure Port Port Name Note... - Page 10 Please refer to the following two figures for dimension information. The unit is mm. See Figure 2-2 through Figure 2-4. Figure 2-2 Dimension illustration 1 Figure 2-3 Dimension illustration 2...
- Page 11 Figure 2-4 Dimension illustration 3...
-
Page 12: Device Installation
3 Device Installation 3.1 Installation Steps Important Before the installation, please make sure the installation environments can at least support 3x weight of the camera. Please follow the steps listed below to install the device. Please refer to Figure 3-1 for reference. Step 1 Use inner hex wrench in the accessories bag to open dome enclosure by unfastening three inner hex screws on enclosure. - Page 13 Figure 3-1 Device installation illustration 1 Figure 3-2 Device installation illustration 2...
- Page 14 Note: When you need to reset the device, press the Reset button in Figure 3-2 while connecting device to power. Step 6 Take dome enclosure, put it back on the camera properly regarding to screw and hole, and fasten the three inner hex screws with wrench.
-
Page 15: Quick Configuration Tool
4 Quick Configuration Tool 4.1 Overview Quick configuration tool can search current IP address, modify IP address. At the same time, you can use it to upgrade the device. Please note the tool only applies to the IP addresses in the same segment. 4.2 Operation Double click the “ConfigTools.exe”... - Page 16 In the configuration tool search interface (Figure 4-1), please select a device IP address and then double click it to open the login interface. Or you can select an IP address and then click the Login button to go to the login interface. See Figure 4-3. In Figure 4-3, you can view device IP address, user name, password and port.
-
Page 17: Web Operation
5 Web Operation This series network camera products support the Web access and management via PC. Web includes several modules: Monitor channel preview, system configuration, alarm and etc. 5.1 Network Connection Please follow the steps listed below for network connection. ... - Page 18 Figure 5- 2 Web login After you successfully logged in, please install WEB plug-in unit. Please refer to the Web Operation Manual included in the resource CD for detailed operation instruction. See Figure 5- 3. Figure 5- 3 Web monitoring window...
-
Page 19: Faq
6 FAQ I can not boot up Please click RESET button for at least 10 seconds to restore factory the device or default setup. operate properly. I can not upgrade When network upgrade operation failed, you can use port 3800 to device continue upgrade. -
Page 20: Appendix Toxic Or Hazardous Materials Or Elements
Appendix Toxic or Hazardous Materials or Elements Toxic or Hazardous Materials or Elements Component Name Cr VI PBDE Circuit Board ○ ○ ○ ○ ○ ○ Component ○ ○ ○ ○ ○ ○ Device Case ○ ○ ○ ○ ○ ○...
