Make sure the mounting surface is strong enough to hold at least three times of the
camera weight.
Keep the protection film on the dome before installation and adjustment finished to avoid
possible scratch.
Properly handle the device after unpacking. Do not expose the device in humid
environment.
The following figure is for reference only, and the actual product shall prevail.

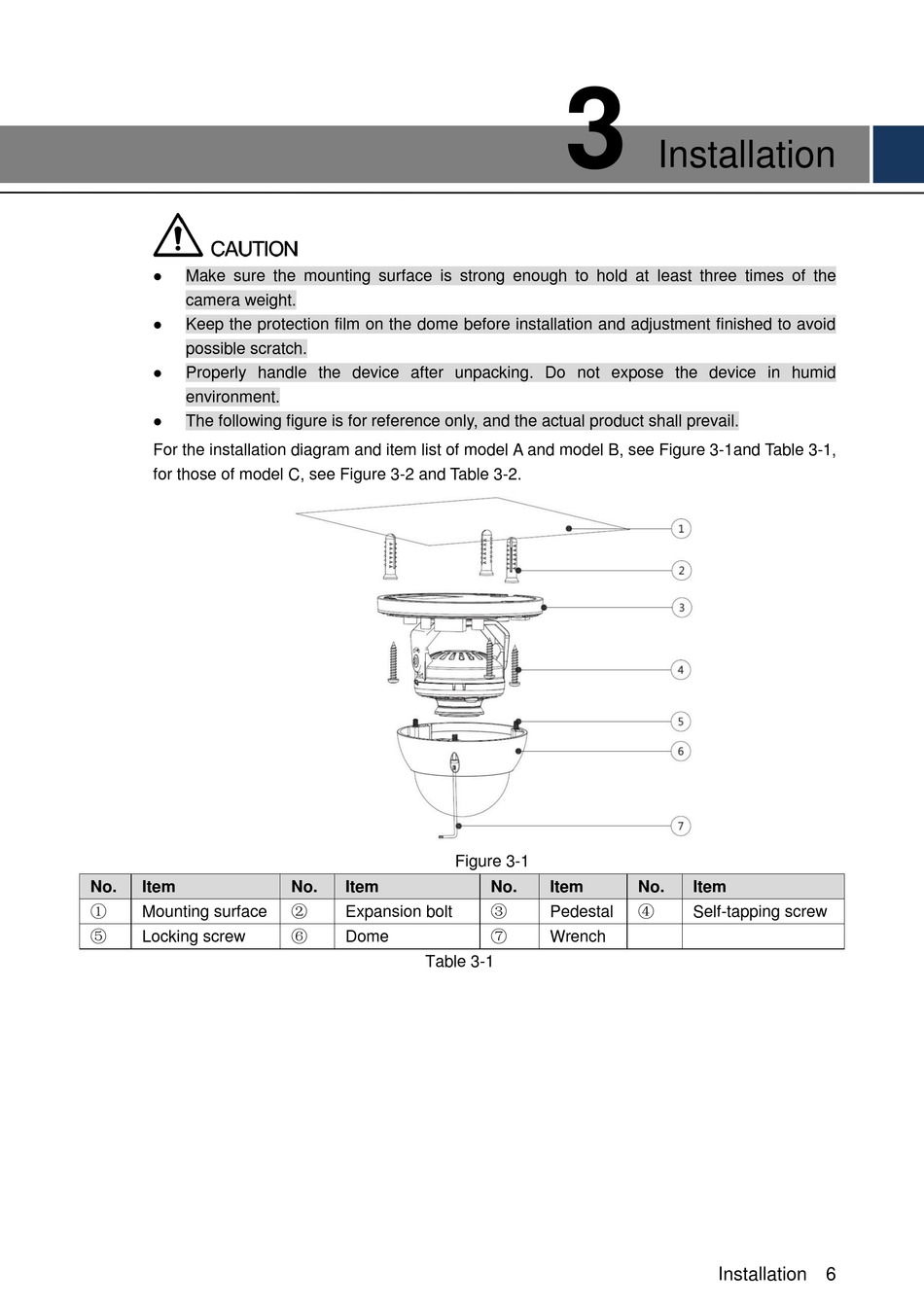

For the installation diagram and item list of model A and model B, see Figure 3-1and Table 3-1,
for those of model C, see Figure 3-2 and Table 3-2.
No.
Item
Mounting surface
Locking screw
Figure 3-1
No.
Item
Expansion bolt
Dome
Table 3-1
3

Installation

No.
Item
No.
Pedestal
Wrench
Item
Self-tapping screw
Installation 6
