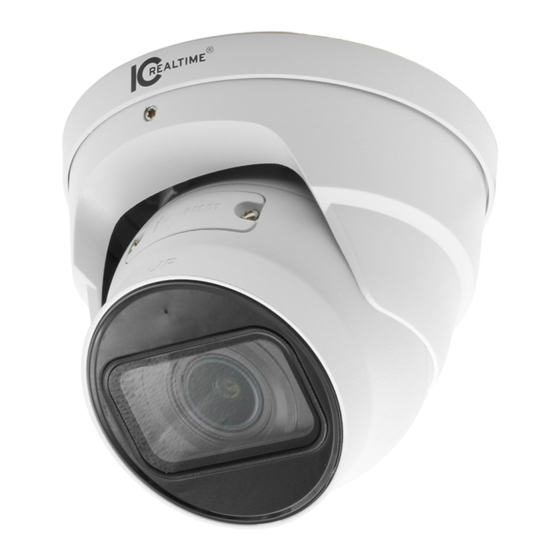

HD IR Eyeball Dome 2.0
Network Camera
Quick Start Guide
Table Of Contents
Features and Specifications
A.
Overview
Camera Installation
A.
Installation Steps (Surface Exit)
card installation
Quick Configuration Tool
A.
Overview
Web Operation
Appendices
www.icrealtime.com
IMPORTANT SAFEGUARDS AND WARNINGS
Electrical Safety
All installation and operation here should conform to your local electrical safety codes. The
power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the
Limited power source is rated 12V DC in the IEC60950-1. This series product supports PoE
too. Please note: Do not connect these two power supplying sources to the device at the same
time; it may result in device damage! We assume no liability or responsibility for all the fires or
electrical shock caused by improper handling or installation. We are not liable for any problems
caused by unauthorized modification or attempted repair.
Transportation Security
Care must be given to avoid heavy stress, violent vibration or water damage during
transportation, storage and installation.
Installation
Do not apply power to the camera before completing installation. Please install the proper
power cut-off device during the installation connection. Always follow the instruction guide the
manufacturer recommended.
Qualified engineers needed
All the examination and repair work should be done by the qualified service engineers. We are
not liable for any problems caused by unauthorized modifications or attempted repair.
2
Environment
2
This series network camera should be installed in a cool, dry place away from direct sunlight,
inflammable, explosive substances and etc. Please keep it away from the electromagnetic
radiation object and environment. Please make sure the CCD (CMOS) component is out of the
3
radiation of the laser beam device. Otherwise it may result in CCD (CMOS) optical component
4
damage. Please keep the sound ventilation. Do not allow the water and other liquid falling into
the camera. Lightning-proof device is recommended to be adopted to better prevent lightning
5
damage. The grounding studs of the product are recommended to be grounded to further
enhance the reliability of the camera.
Daily Maintenance
5
Please shut down the device and then unplug the power cable before you begin daily
maintenance work. Do not touch the CCD (CMOS) optic component. You can use the blower to
5-6
clean the dust on the lens surface. Always use the dry soft cloth to clean the device. If there is
too much dust, please use the water to dilute the mild detergent first and then use it to clean
7
the device. Finally use the dry cloth to clean the device. Please put the dustproof cap to protect
the CCD (CMOS) component when you do not use the camera.
7-8
Accessories
Be sure to use all the accessories recommended by manufacturer. Before installation, please
9
open the package and check all the components are included. Contact your local retailer ASAP
9-10
if something is broken in your package.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for IC Realtime Max Series
Summary of Contents for IC Realtime Max Series
-
Page 1: Table Of Contents
IMPORTANT SAFEGUARDS AND WARNINGS Electrical Safety All installation and operation here should conform to your local electrical safety codes. The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited power source is rated 12V DC in the IEC60950-1. This series product supports PoE too. -
Page 2: Camera Interface
IP67 level. It has the sound waterproof function suitable for use in the outdoor environments. It can be used standalone or with a network video recorder. If used standalone, it is able to utilize IC Realtime’s software suite including Smart ICRSS, IC View and ICRSS Pro. This model also Figure 1-1 supports IC Realtime’s P2P connection which allows easy remote... - Page 3 2A. INSTALLATION STEPS (Cable going through the mounting surface) Before the installation, please make sure the installation Important: environment can at least support 3x weight of the camera. Please follow the steps listed below to install the device. www.icrealtime.com...
-
Page 4: Installation Steps (Side Exit)
2B. INSTALLATION STEPS (Cable going through the side cable tray) Before the installation, please make sure the installation Important: environment can at least support 3x weight of the camera. Please follow the steps listed below to install the device. www.icrealtime.com... -
Page 5: Restore Factory Defaults & Sd
2C. RESTORE FACTORY DEFAULTS AND SD CARD INSTALLATION 3A. OVERVIEW Make sure the device is powered when attempting to press The IP Config tool is used to search the local network for IC Realtime Important: RESET button. devices as well as modify the IP addresses and upgrading firmware. - Page 6 Select “Search Setting” to modify the IP range to scan for and input To modify the device IP address, select one of the devices from the the correct login information for the device. See Figure 3-2. list and then click the pencil icon. The dialog box to modify the IP information will populate.
-
Page 7: Network Connection
This series network camera product supports the Web access and The login interface is shown as below. See Figure 4-2. management via PC. Note: If it is your first time logging into the camera (and it has not been initialized through the ConfigTool or NVR), the camera will need 4A. - Page 8 Web includes several modules: monitor channel preview, system configuration, alarm and etc. See Figure 4-3. Live: Live video of camera ● Setup: For configuration changes. ● Alarm: For monitoring alarm triggers (motion detect, IVS, ● abnormalities, etc) Logout: Logs out of the camera web GUI ●...
-
Page 9: Faq
5A. FAQ You may need to set device IP to DHCP. Device does not Please refer to section 2B for factory reset P2P status is “not After acquiring a different IP address, verify process. Cam will need to be Initialized after operate properly/ lost P2P status and set camera back to static IP connected/ offline”... - Page 10 X: Indicates that the concentration of the hazardous substance of at least one of all homogeneous materials in the parts is above the relevant threshold of the SJ/T11363-2006 standard. During the environmental-friendly use period (EFUP) period, the toxic or hazardous substance or elements contained in products will not leak or mutate so that the use of these (substances or elements) will not result in any severe environmental pollution, any bodily injury or damage to any assets.
