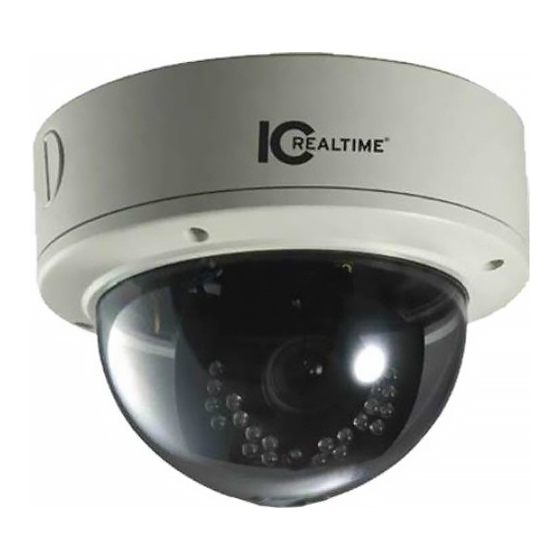

- Page 1 Full HD(HD-SDI) CCTV Armor Dome camera INSTRUCTION MANUAL Please read this manual carefully before installation and operation of the product. 120503-1...
-
Page 2: Table Of Contents
Dear Customers! Table of contents By selecting this product, you have decided to use a professional device that guarantees highest quality and reliability. We would like to thank you very much for your confidence and kindly ask you to read the following instructions carefully before Installation and operation in 1. -
Page 3: Precautions
1. Precautions 2. Limitation of liability Please read the manual carefully before installation in order to set up and use the camera correctly with best image quality. 3. Disclaimer of warranty... -
Page 4: Package
4. Package 5. Installation 5-1. How to separate the camera-set from the base. Full HD(HD-SDI) CCTV Armor Dome camera INSTRUCTION MANUAL To install VDA110FHD(IR), it is required to separate the camera-set from the base first. Please follow below process. Please read this manual carefully before installation and operation of the product. 120503-1 Full HD Armor Dome Instruction manual... -
Page 5: How To Reposition The Cable From The Back To The Side Of Base
5. Installation 5. Installation 5-3. How to reposition the cable from the back to the side of base. 5-4. How to adjust the Zoom/Focus. a. Parts location DRW 3-1 shows cable connection for factory default set up. The cable comes out through the back of camera base. -
Page 6: How To Adjust The Camera Angle
5. Installation 5. Installation 5-5. How to adjust the camera angle. 5-6. How to connect the power a. Panning 180° · Angle adjustment either to the left direction or right direction within 180° is available. ① 12VDC (DC Type) ※ Non-polarity Connect the copper wire of the power cable to the screw terminal provided at the end of the camera cable. -
Page 7: Installation Overview
5. Installation 6. Name and function of each part 5-7. Installation overview HD-SDI 2 gong Junction box Power (Industrial standard) Video Adaptor Plate (option) Ceiling Tile ④ Drilling template ⑤ Dust & Moisture ③ protectine Sponge ② Base ① Tapping Screw 4x30L-4ea ①... -
Page 8: Functions And Operation
7. Functions and operation 7. Functions and operation 7-1. On Screen Display Menu MAIN MENU VIDEO OUT VIDEO OUTSIZE FRAME RATE CVBS OUT MODE SAVE/ RETURN LEFT RIGHT AUTO MENU NORMAL 50HZ INDOOR 60HZ INDOOR OUTDOOR RETURN DOWN AUTO/COLOR/IR D TO N LEVEL D TO N TIME D/N RESET RETURN... -
Page 9: Auto Menu Set
7. Functions and operation 7. Functions and operation 7-4. AUTO MENU SET NOTE Day & Night cameras without CDS & ICR are to be set in this mode. (1) NORMAL - Sets as initial factory default value. (2) D TO N LEVEL - Sets the level of illumination in which COLOR mode (2) 50HZ INDOOR is turned into B/W mode. - Page 10 7. Functions and operation 7. Functions and operation 7-7.AE (Auto Exposure) NOTE (1) IRIS MODE In case of indoor use, ATW(IN) mode is higly recommended. - DC : Selects DC drive auto iris lens. (3) PUSH MODE : This mode can be used within the color temperature range of - ESC : Selects manual iris lens - AE HOLD : Fixes the change of the brightness.
-
Page 11: Privacy
7. Functions and operation 7. Functions and operation 7-8.PRIVACY Masks the areas you want to hide on the screen. (6) BLC (Back Light Compensation) Enables a user to directly select a desired area from a (1) AREA NUMBER: You can select up to 4 PRIVACY areas. picture, and to view the area more clearly even under backlight environment. -
Page 12: System
7. Functions and operation 7. Functions and operation (5) 2DNR 3. Up to 10 letters are available for the NAME DISPLAY. - Cuts off the noise in low light condition. 4 modes of OFF/LOW/MID/HIGH are available. using the UP and DOWN selections. NOTE Higher 2DNR level reduces more low light noise but deteriorates resolution as well. -
Page 13: Dimension(Mm)
8. Troubleshooting 9. Dimension(mm) If there are problems in operating, please refer to the checklist below. If the problem persists, please contact the agent where this product is purchased. Troubleshooting Problems · Please check that the power cord and line connection between the camera and the monitor are fixed properly. -
Page 14: Specification
10. Specification MEMO Full (HD-SDI) CCTV Armor Dome Camera MODEL Sensor Device Sony 1/2.8” progressive scan CMOS, 3MegaPixel Total Pixels 2144(H) x 1588(V) 3.4 Megapixel Effective Pixels 2096(H) x 1561(V) 3.27 Megapixel Scanning System Progressive Scan Horizontal More than 1100 TVL S/N Ratio More than 52dB 1.0 Lux with DSSX2 (F1.2, 30IRE, AGC On),... - Page 15 MEMO MEMO...
- Page 16 MEMO MEMO...
