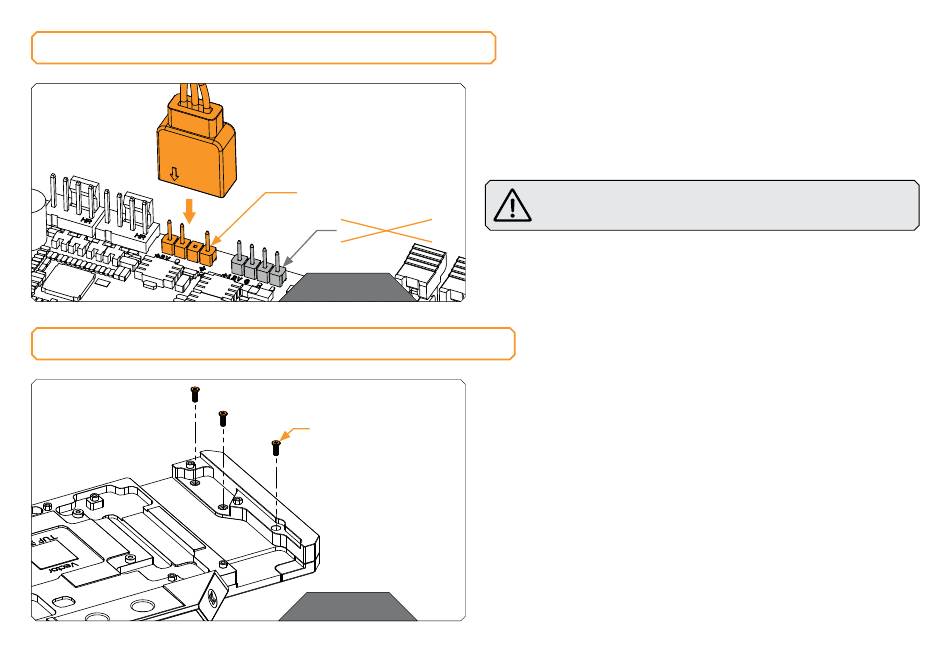

CONNECTING THE D-RGB LED STRIP

REPLACING THE LED STRIP (Optional)

D-RGB HEADER
RGB HEADER
STEP 1
M2.5 x 7 AX1
STEP 1
- 12 -
STEP 1
Plug the 4-pin D-RGB connector from the GPU water block to the
D-RGB Header on your motherboard or controller. The LED strip will
work only if the pin layout on the header is as follows: +5V, Data,
Empty, Ground.
Incorrect installation or installation to a wrong header can
damage to the LED strip or the header itself!
STEP 1
In case of replacing the D-RGB LED strip, three (3) M2.5 x 7 AX1
Screws must be removed using Phillips Head Screwdriver (as shown
in the picture).
