Attaching The Block To The Graphics Card; Checking For Contact - EK-Quantum Vector TUF RTX 3070 User Manual

M2.5 x 4 AX1 SCREW
M2.5 PVC WASHER

CHECKING FOR CONTACT

If necessary, temporarily remove the water block to check for uniform
surface contact between the block and components. Pay special
attention to the VRM section of the graphics card. Check whether
the water block makes contact with the intended integrated circuit.
Then repeat Steps from the previous section to re-attach the block.
In case you fail to obtain good contact, please check
again or contact our support service at
https://www.ekwb.com/customer-support/.
STEP 2

ATTACHING THE BLOCK TO THE GRAPHICS CARD

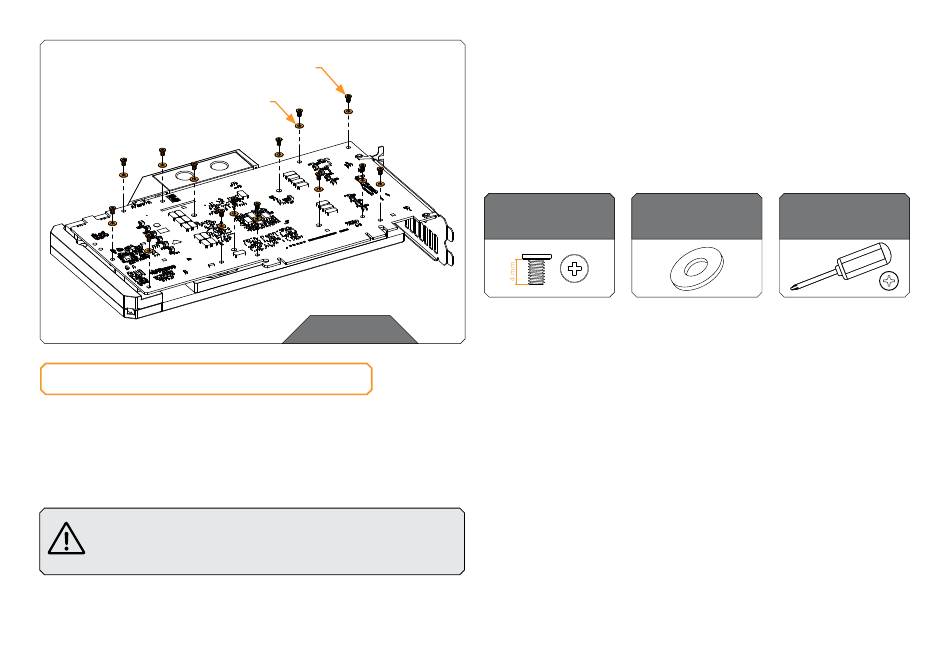

Use fourteen (14) M2.5 x 4 AX1 Screws and fourteen (14) M2.5
PVC Washers. Tighten the screws evenly using the Phillips head
screwdriver. EK recommends you start tightening the screws
around the GPU core first and then continuing outward to prevent
damaging the GPU.
For this Step, you will need:
STEP 2
- 10 -
M2.5 x 4 AX1 M 2.5 PVC Washer
Screw (14 pcs) (14 pcs)
Phillips Head
Screwdriver
