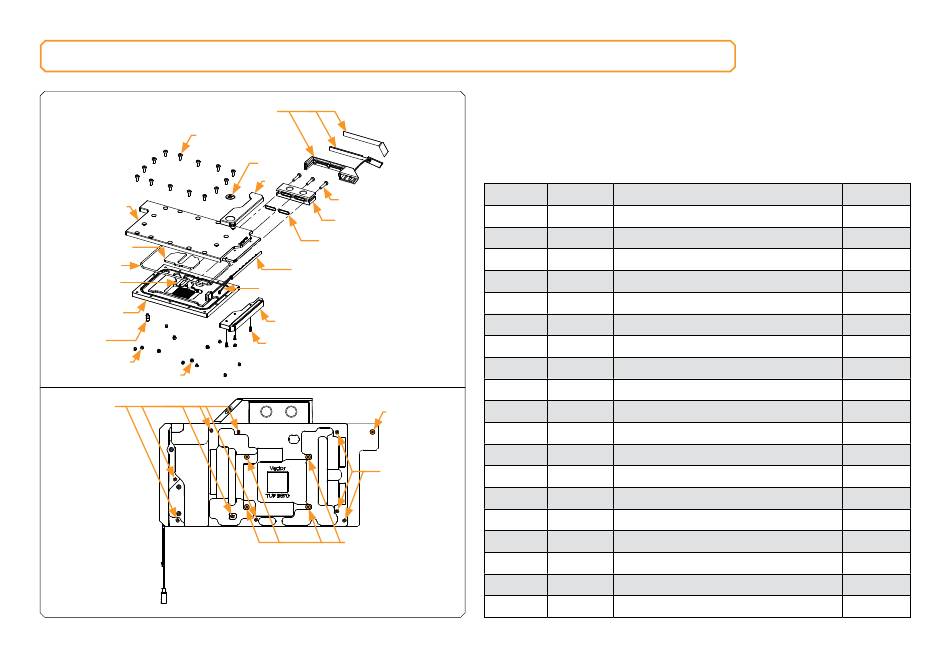

TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS

7
8
9
10
11
12
13
14
15
M3.5/2.5 x 2.5
STANDOFF
1
6
5
2
3
4
18
19
17
16
M4/2.5 x 10.5
STANDOFF
M3.5/2.5 x 2.5
STANDOFF
M4/2.5 x 2.5
STANDOFF
Technical Specification:
- Dimensions (L x H x W): 254.5 x 149 x 20.5 mm
- D-RGB cable length: 500 mm
- D-RGB LED count: 9
- D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground)
Position EAN Description
1 101743 Terminal cover + D-RGB LED
2 8311 M4 x 20 DIN7984 Screw
3 101628 FC Terminal
4 5155 FC Terminal O-ring 15 x 1 mm
5 103466 TOP Acetal - Stickout
6 100663 EK - Badge
7 9013 M4 x 8 DIN7984 Screw
8 103222 TOP Plexi - Vector TUF RTX 3070
9 103567 TOP Plexi - Vector TUF RTX 3070 Insert
10 5115 Main O-Ring 144 x 2 mm
11 101254 Jet plate
12 103221 Coldplate
13 103114 M4/M2.5 x 10.50 Standoff
14 102696 M3.5/M2.5 x 2.5 Standoff
15 8533 M4/M2.5 x 2.5 Standoff
16 9049 M2.5 x 7 AX1 Screw
17 103468 TOP Acetal - Under Stickout
18 101290 D-RGB LED Strip
19 101076 Wire Harness
