TE Connectivity PRO-CRIMPER III Instruction Sheet

PROPER USE GUIDELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use
and low volume applications. A wide selection of powered application equipment for extended-use, production operations is available.
Locator Assembly
(Supplied with Die Assembly
Die Assembly
The PRO-CRIMPER III Hand Crimping Tool is a "Commercial" grade tool and is designed
primarily for field installation, repair, maintenance work, or prototyping in industrial,
commercial, or institutional applications. Product crimped with this tool will meet the crimp
height requirement for hand tools in the appropriate Application Specification (114-series),
but may not comply with other feature parameters of the specification.
TE Connectivity offers a variety of tools to satisfy your performance requirements.
For additional information, contact the Tooling Assistance Center at 1-800-722-1111.
TE DIE TE LOCATOR
ASSEMBLY ASSEMBLY†
90758-2
†Supplied with die assembly. Also available separately.
‡Contact the TOOLING ASSISTANCE CENTER or PRODUCT INFORMATION (see below) for specific contact part numbers.
1. INTRODUCTION

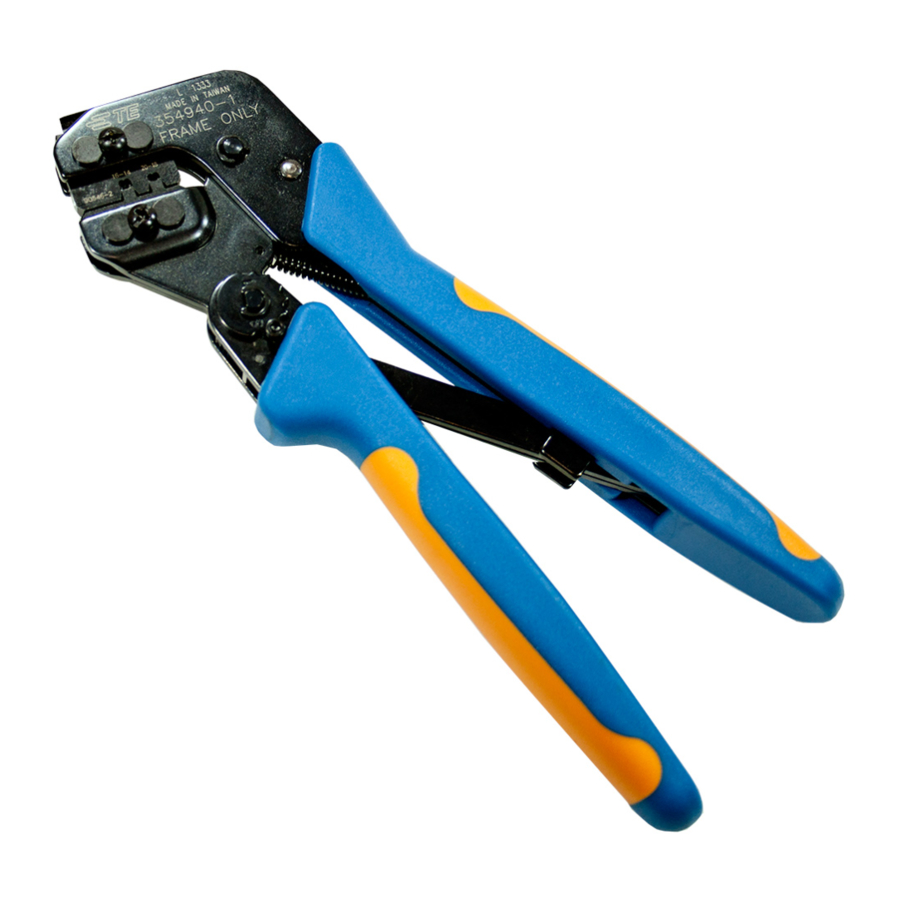

PRO-CRIMPER III Hand Crimping Tool Assembly
90758-1 consists of Die Assembly 90758-2 and
PRO-CRIMPER III Hand Crimping Tool Frame
354940-1 (see Instruction Sheet 408-9930). The die
assembly consists of crimping dies and a locator
assembly.
Read these instructions thoroughly before crimping
any contacts.
Dimensions in this instruction sheet are in
NOTE
millimeters [with inch equivalents provided in
brackets]. Figures and illustrations are for
i
reference only and are not drawn to scale.
Reasons for reissue of this instruction sheet are
provided in Section 11, REVISION SUMMARY.
©2011 Tyco Electronics Corporation, a TE Connectivity Ltd. Company
All Rights Reserved
*Trademark
TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product and/or Company names may be trademarks of their respective owners.

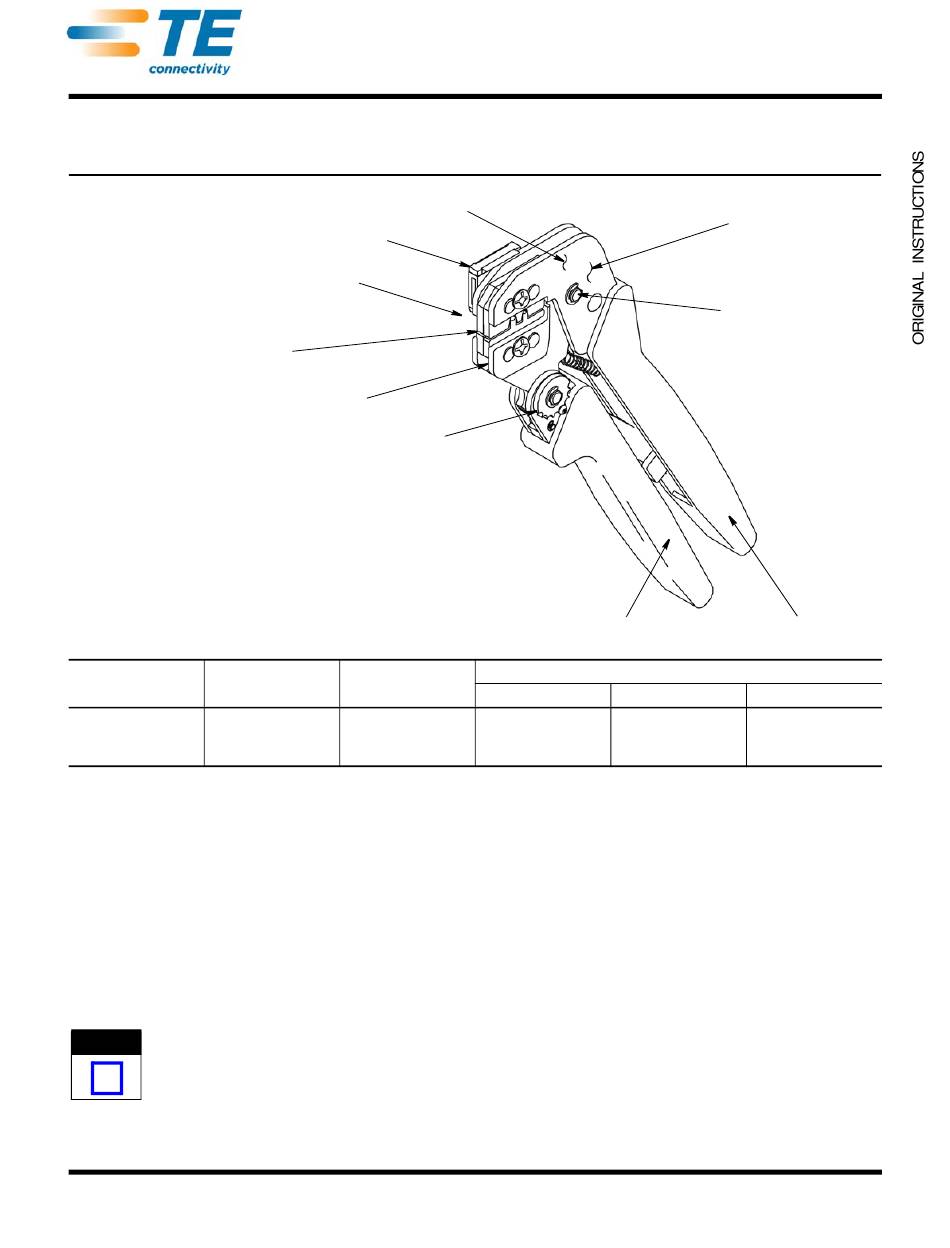

PRO-CRIMPER* III Hand
Crimping Tool Assembly 90758-1
with Die AssemblY 90758-2
Front of Tool
(Locator Side)
Moving Jaw
Ratchet
Adjustment
Wheel
CONTACT
FAMILY‡
Mini Universal
58516-1 MATE-N-LOK*
Connectors
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
Stationary Jaw
Moving Handle
SIZE (AWG)
26-22
Figure 1
2. DESCRIPTION
The tool consist of a stationary jaw and handle, a
moving jaw and handle, and an adjustable ratchet that
ensures full contact crimping. The tool frame holds a
die assembly with two crimping sections.
The die assembly features a wire anvil, an insulation
anvil, a wire crimper, and an insulation crimper.
Attached to the outside of the frame is a locator
assembly, which contains a locator, spring retainer,
and a contact support.
Die retaining pins and die retaining screws are used to
position and secure the dies in the tool frame. A nut is
used on the upper die retaining screw to hold the
locator assembly in place.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.te.com
Instruction Sheet
408-9938
01 NOV 11 Rev D
Back of Tool Frame
(Wire Side)
Pivot Pin
PRO-CRIMPER III Hand Tool
Frame 354940-1 (408-9930)
Stationary Handle
WIRE
INSUL DIA STRIP LENGTH
1.19-1.75 3.20 to 3.71
[.047-.069] [.126 to .146]
(See Figures 1 and 2)
1 of 5
LOC B
