PROPER USE GUIDELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use
and low volume applications. A wide selection of powered application equipment for extended-use, production operations is available.
Locator Assembly
Lower Terminal Support
Die Assembly

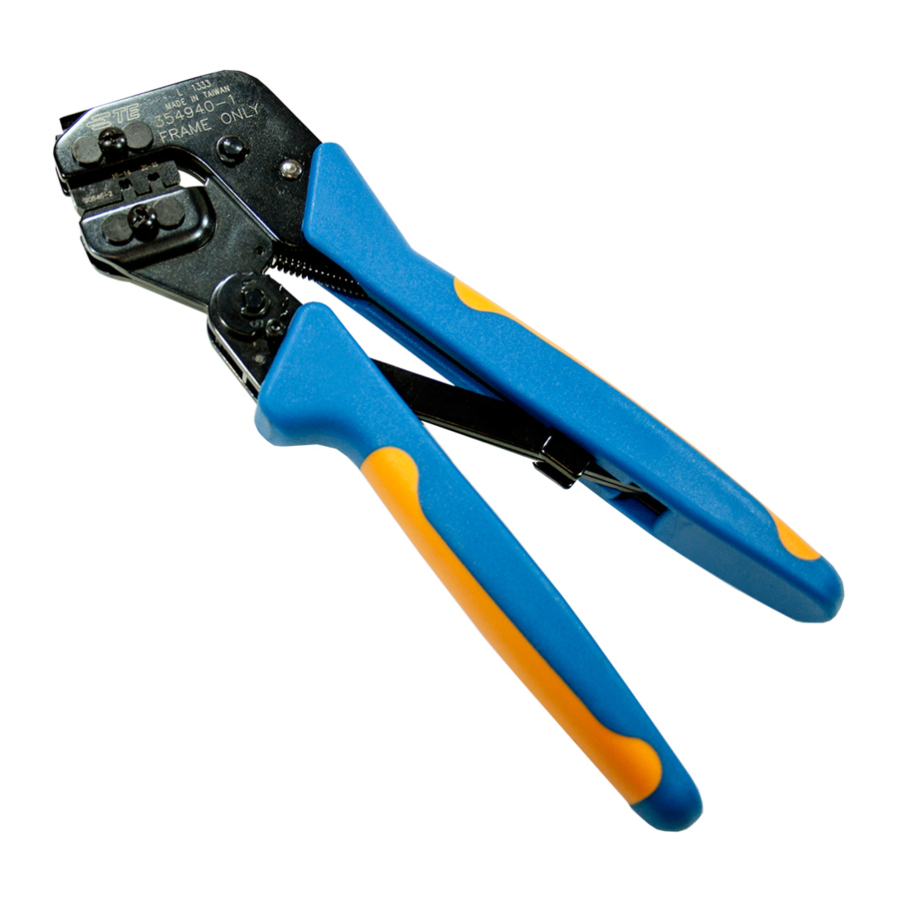

The PRO-CRIMPER III Hand Crimping Tool is a "Commercial" grade tool and is designed
primarily for field installation, repair, maintenance work, or prototyping in industrial,
commercial, or institutional applications. Product crimped with this tool will meet the crimp
height requirement for hand tools in the appropriate Application Specification (114-series),
but may not comply with other feature parameters of the specification.
TE Connectivity offers a variety of tools to satisfy your performance requirements.
For additional information, contact the Tooling Assistance Center at 1-800-722-1111.
LOCATOR
DIE ASSEMBLY
ASSEMBLY †
91359-2
58515-1
† Supplied with Die Assembly; Also Available Separately
‡ Contact PRODUCT INFORMATION at the number at the bottom of this page for specific contact part numbers
1. INTRODUCTION
PRO-CRIMPER III Hand Tool Assembly 91359-1
consists of PRO-CRIMPER III Hand Tool Frame
354940-5 and Die Assembly 91359-2. The tool
assembly is used to crimp the contacts onto the wire
listed in Figure 1. Read these instructions thoroughly
before using the tool assembly.
For additional information on the hand tool frame, refer
to 408-9930.
Reasons for reissue of this instruction sheet are
provided in Section 8, REVISION SUMMARY.
©2012 Tyco Electronics Corporation, a TE Connectivity Ltd. Company
All Rights Reserved
*Trademark
TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product and/or Company names may be trademarks of their respective owners.

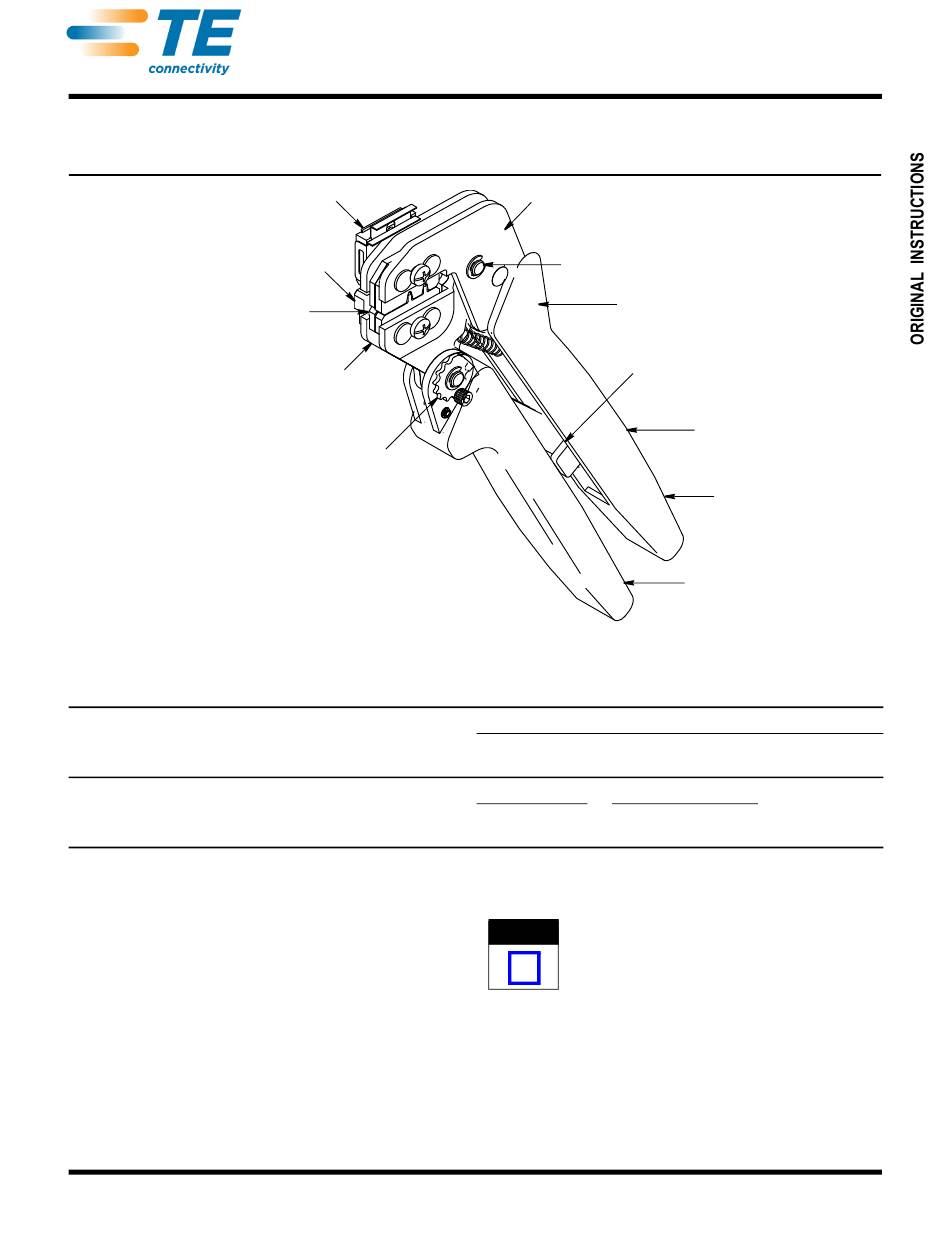

PRO-CRIMPER* III Hand Crimping
Tool Assembly 91359-1 with
Die Assembly 91359-2
Moving Jaw
Ratchet Adjustment
Wheel
PRODUCT FAMILY ‡
Electronic Control
Unit (ECU)-11
Generation II
Figure 1
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
Stationary Jaw
Pivot Pin
Back of Tool Frame
(Wire Side)
Ratchet (Ref)
WIRE
Size
Maximum Insulation
(AWG)
Diameter (mm [in.])
18
2.36 [.093]
16
2.62 [.103]
(Fluoropolymer)
Dimensions in this instruction sheet are in metric
NOTE
units [with U.S. customary units in brackets].
Figures are not drawn to scale.
i
2. DESCRIPTION
(See Figure 1)
The tool consists of a tool frame with a stationary jaw,
stationary handle, moving jaw, and moving handle and
an adjustable ratchet that ensures full crimping. The
tool features a lower terminal support for supporting
the contact during crimping, and a ratchet adjustment
wheel for adjusting the crimp height.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.te.com
Instruction Sheet
408-8739
17 JAN 12 Rev B
PRO-CRIMPER III Hand Tool
Frame 354940-5 (408-9930)
Stationary Handle
Moving Handle
Strip Length
(mm [in.])
5.7 [.22]
1 of 6
LOC B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO-CRIMPER III and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TE Connectivity PRO-CRIMPER III

  • Page 1 PRODUCT INFORMATION 1-800-522-6752 For latest revision and Regional Customer Service, *Trademark visit our website at www.te.com LOC B TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product and/or Company names may be trademarks of their respective owners.
  • Page 2 408-8739 Locator Assembly Locator and Contact Retainer Jaws Wire Crimper Short Die Retaining Pins Chamfer Long Die Lower Retaining Screw Terminal Offset Support Insulation Crimper Wire Anvil Short Die Retaining Screw Insulation Long Die Chamfer Anvil Retaining Pins Figure 2 The tool frame holds a die assembly that consists of a 6.
  • Page 3 408-8739 4. CRIMPING PROCEDURE 5. Insert the stripped wire into the contact insulation barrel and wire barrel until it butts against the wire This tool is provided with a contact support and a stop as shown in Figure 3. NOTE crimp adjustment feature.
  • Page 4: Replacement And Repair

    408-8739 6. Remove and inspect the contact. 3. Remove all lubrication and accumulated film from the dies by immersing the dies in a suitable 7. Make another sample crimp. If the contact is commercial degreaser. straight, tighten the contact support screw. If the contact is still being bent during crimping, repeat the 6.2.
  • Page 5: Revision Summary

    408-8739 7. REPLACEMENT AND REPAIR Customer-replaceable parts are shown in Figure 1. Available separately, Repair Kit 679221-1 includes a replacement nut and a variety of pins, rings, screws, and springs. If the dies are damaged or worn excessively, they must be replaced. Order the repair kit, tool assembly, and die assembly through your representative, or call 1-800-526-5142, or send a facsimile of your purchase order to...
  • Page 6 408-8739 Tooling Compatible with Die Assembly 91359-2 PRO-CRIMPER III Hand Tool Frame 354940-1 SDE-SA Hand Tool 9-1478240-0 (Instruction Sheet 408-9930) (Instruction Sheet 408-8851) SDE Bench Terminator 1490076-2 626 Adapter 679304-1 (Customer Manual 409-10052) (Instruction Sheet 408-4070) Electro-Hydraulic (BT 3500 Battery-Hydraulic) Closed Head Assembly 2031460-1 “C”-Head Assembly 2031450-1...
