PROPER USE GUIDELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use
and low volume applications. A wide selection of powered application equipment for extended-use, production operations is available.
Stationary Jaw
Front of Tool
Locator Side)
Die Assembly
Moving Jaw

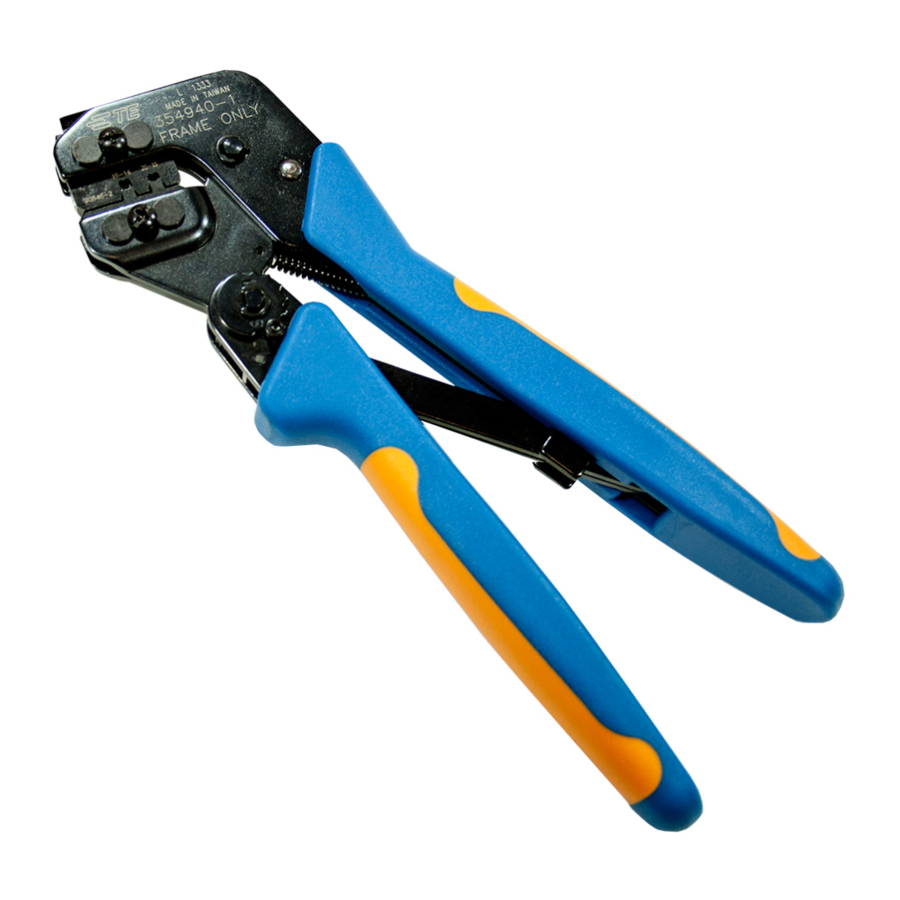

The PRO-CRIMPER III Hand Crimping Tool Assembly is a "Commercial" grade tool and is designed
primarily for field installation, repair, maintenance work, or prototyping in industrial, commercial, or
institutional applications. Product crimped with this tool will meet the crimp height requirement for hand
tools in the appropriate 114 application specification, but may not comply with other feature parameters
of the specification. TE Connectivity offers a variety of tools to satisfy your performance requirements.
For additional information, contact the Tooling Assistance Center at 1-800-722-1111.
LOCATOR
DIE ASSEMBLY
ASEMBLY PART
PART NUMBER
NUMBER†
58541-2
189382-1
† Supplied with the die assembly. Also available separately. ‡Contact the Product Information Center (below) for specific contact part numbers.
1. INTRODUCTION
PRO-CRIMPER III Hand Crimping Tool Assembly
58541-1 consists of Die Assembly 58541-2 and
PRO-CRIMPER III Hand Crimping Tool Frame
354940-1. The die assembly consists of crimping dies
and a locator assembly. Refer to Figure 1.
©2013 Tyco Electronics Corporation, a TE Connectivity Ltd. company
All Rights Reserved
*Trademark
TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product and/or company names may be trademarks of their respective owners.
PRO-CRIMPER* III Hand Crimping
Tool Assembly 58541-1
with Die Assembly 58541-2
Ratchet
Adjustment
Wheel
Moving Handle
CONTACT
FAMILY‡
67 MULTIMATE*
Type II Series
Contacts
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
Pivot Pin
Back of Tool
(Wire Side)
SIZE
(AWG)
24-20
18-14

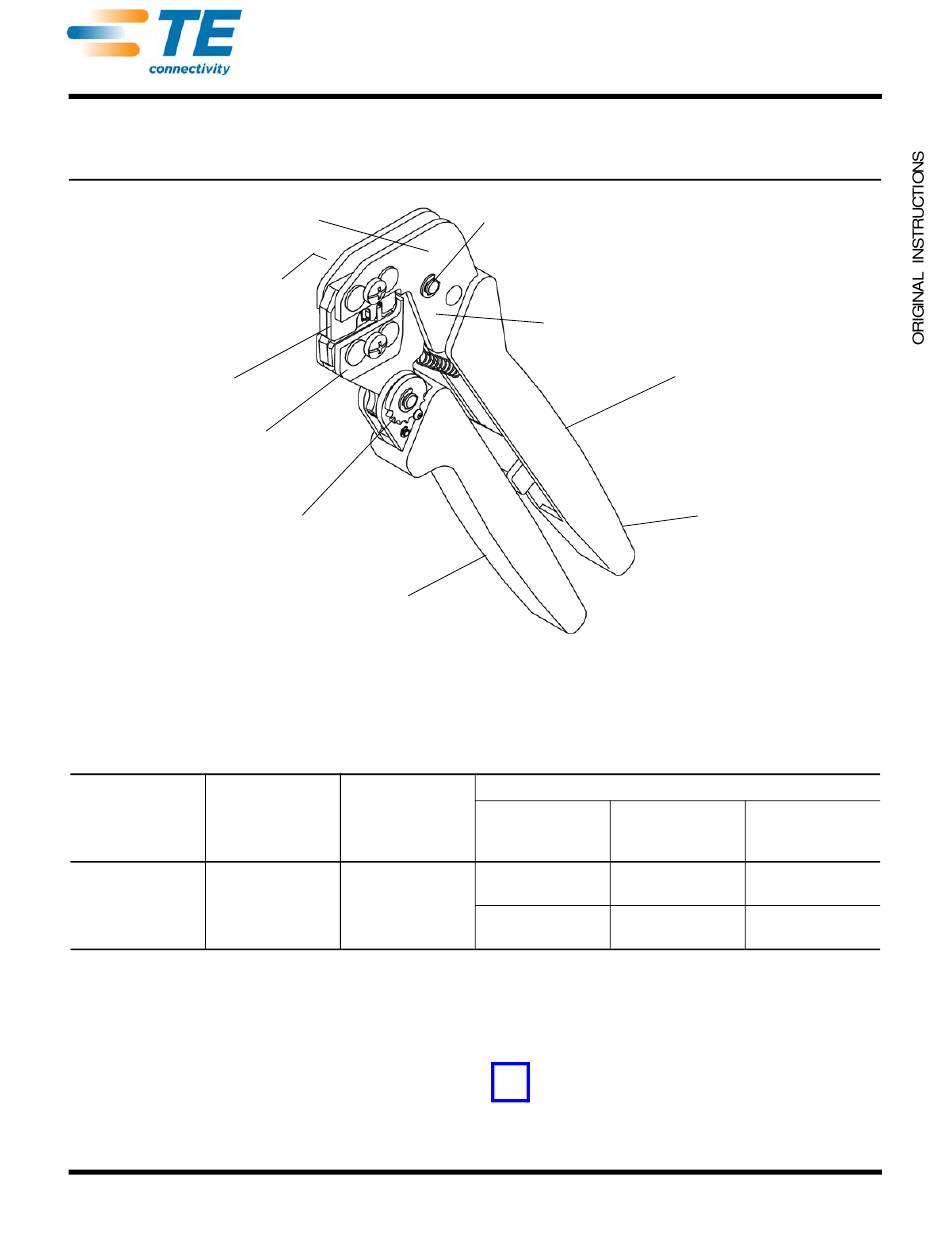

Figure 1
Read these instructions thoroughly before crimping
any contacts.
NOTE
i
NOTE
Dimensions on this sheet are in millimeters [with inch
equivalents provided in brackets]. Figures and
illustrations are for identification only and are not drawn
to scale.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.te.com
Instruction Sheet
408-4051
11 NOV 13 Rev D
PRO-CRIMPER III Hand
Crimping Tool Frame
354940-1 (See Instruction
Sheet 408-9930)
Stationary Handle
WIRE
INSULATION
STRIP LENGTH
DIAMETER
(mm [in.])
(mm [in.])
1.40 to 2.16
5.32
[.055 to .085]
[.209]
6.35
Open
[.250]
1 of 4
Advertisement
Table of Contents
Related Manuals for TE Connectivity PRO-CRIMPER III
Summary of Contents for TE Connectivity PRO-CRIMPER III
- Page 1 All Rights Reserved PRODUCT INFORMATION 1-800-522-6752 For latest revision and Regional Customer Service, *Trademark visit our website at www.te.com TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product and/or company names may be trademarks of their respective owners.
- Page 2 408-4051 Locator Tool Frame Assembly Locator Chamfer Chamfer Die Retaining Insulation Pins Crimper 189456-1 Wire Crimper 189457-1 Wire Anvil 189455 Insulation Anvil Die Retaining Chamfer 189454-1 Screws Figure 2 Reasons for reissue are provided in Section 10, screw just enough to hold the dies in place. Do not REVISION SUMMARY.
- Page 3 408-4051 Back of Tool (Wire Side) Contact (Typ) Strip Length Locator Contact Shoulder Against Locator Wire Inserted Wire In Contact Figure 3 4. CRIMPING PROCEDURE 4. Hold the contact in position and squeeze the tool handles together until ratchet engages sufficiently to NOTE NOTE hold the contact in position.
- Page 4 6. CRIMP HEIGHT ADJUSTMENT (Figure 5) Customer-replaceable parts are shown in Figure 1. 1. Remove the lockscrew from the ratchet Available separately, PRO-CRIMPER III Hand adjustment wheel. Crimping Tool Repair Kit 679221-1 includes a 2. With a screwdriver, adjust the ratchet wheel from replacement nut and a variety of pins, rings, screws, the locator side of the tool.
