PROPER USE GUIDELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use and low volume
applications. A wide selection of powered application equipment for extended- - use, production operations is available.
Front of Tool
Die Assembly
The PRO- - CRIMPER III Hand Crimping Tool is a "Commercial" grade tool
and is designed primarily for field installation, repair, maintenance work, or
prototyping in industrial, commercial, or institutional applications. Product
crimped with this tool will meet the crimp height requirement for hand tools in
the appropriate 114 series specification, but may not comply with other feature
parameters of the specification. TE offers a variety of tools to satisfy your
performance requirements. For additional information, contact the Tooling
Assistance Center at 1- - 800- - 722- - 1111.
TE Die Assembly
SOLISTRAND* Terminal (Standard)
SOLISTRAND Terminal (Standard) and
Butt Splice
58545 1
58545--1
SOLISTRAND Terminal (Long Barrel) or
Butt Splice
SOLISTRAND Terminal Parallel Splice
} Contact the Tooling Assistance Center or Product Information (at the number listed below) for specific terminal and splice part numbers.
1. INTRODUCTION
PRO--CRIMPER III Hand Crimping Tool Assembly
58546--2 consists of Die Assembly 58545--1 and
PRO--CRIMPER III Hand Crimping Tool Frame
354940--1. The tool is used to crimp the terminals and
splices onto the wire size listed in Figure 1.
E2011 Tyco Electronics Corporation, a TE Connectivity Ltd. Company
All Rights Reserved
TE logo is a trademark.
*Trademark. Other product names, logos, or company names might be trademarks of their respective owners.

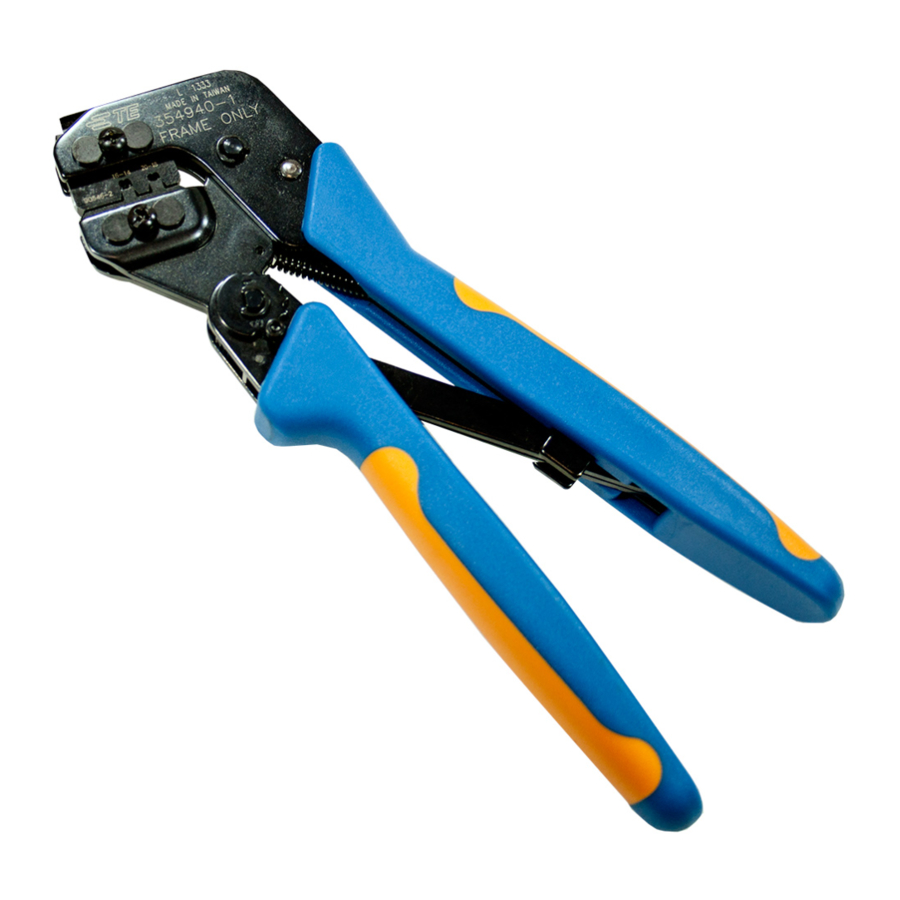

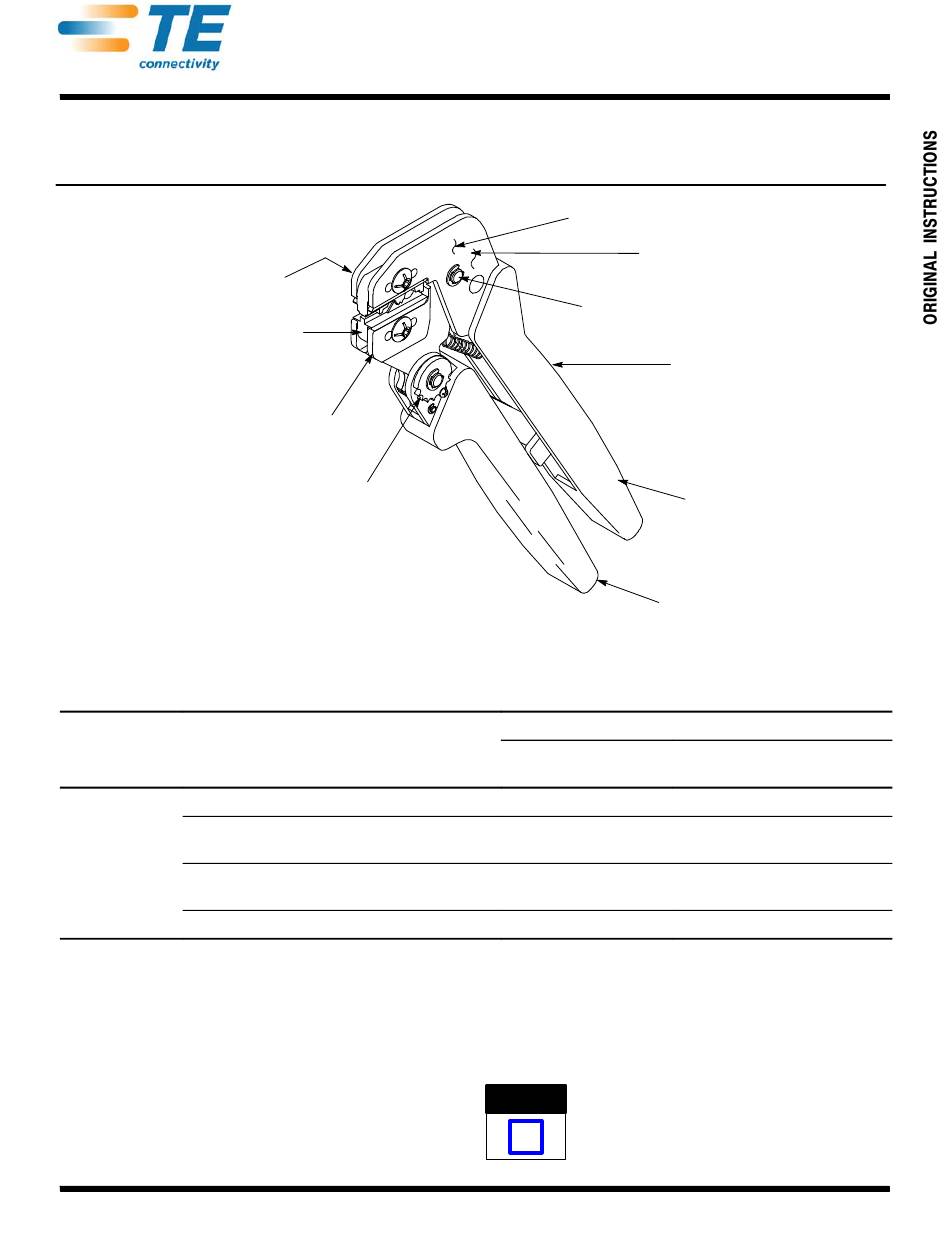

PRO- CRIMPER* III Hand
Crimping Tool Assembly 58546- 2
with Die Assembly 58545- 1
Moving Jaw
Ratchet
Adjustment
Wheel
Product Family}
TOOLING ASSISTANCE CENTER 1--800--722--1111
PRODUCT INFORMATION 1--800--522--6752
Stationary Jaw
Pivot Pin
Size
(AWG)
22--14
12--10
22--14
22--14
Figure 1
Read these instructions thoroughly before crimping
any terminals or splices.
Dimensions on this sheet are in millimeters [with
NOTE
inch equivalents provided in brackets]. Figures
i
are for reference only, and are not drawn to scale.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.te.com
Instruction Sheet
408- - 8678
17 Mar 11 Rev C
Back of Tool
(Wire Side)
PRO- - CRIMPER III Hand
Crimping Tool Frame
354940- - 1 (408- - 9930)
Stationary
Handle
Moving
Handle
Wire
Strip Length
(mm [In.])
4.37--5.16 [.172--.203]
6.35--7.14 [.25--.281]
6.35--7.14 [.25--.281]
7.94--8.73 [.312--.344]
1 of 6
