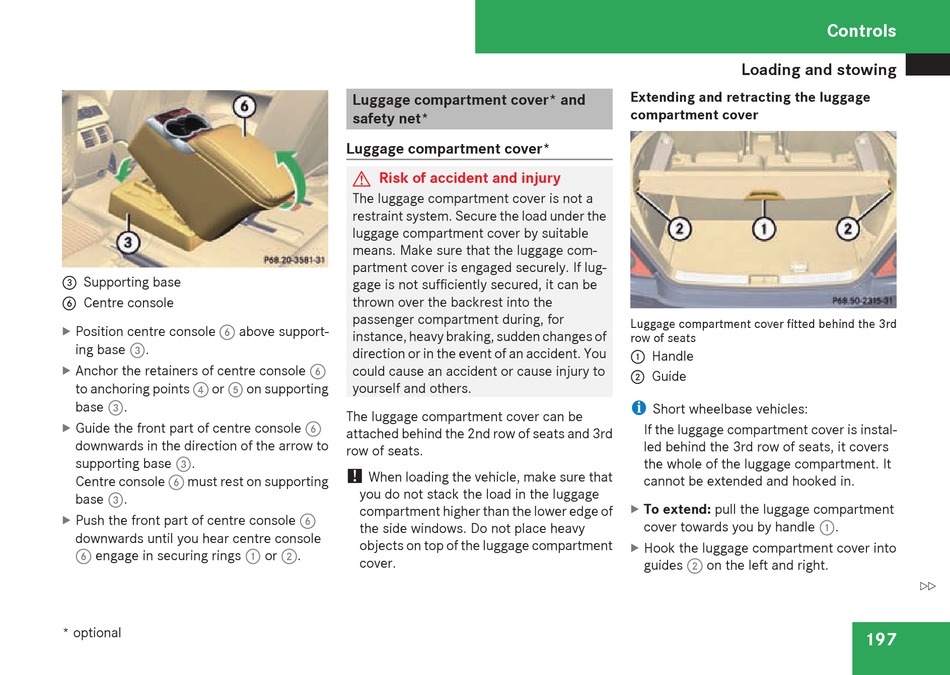

Supporting base
3
6 Centre console
Position centre console 6 above support-
X
ing base 3.
Anchor the retainers of centre console
X
to anchoring points 4 or 5
base 3.
Guide the front part of centre console
X
downwards in the direction of the arrow to
supporting base 3.
Centre console 6 must rest on supporting
base 3.
Push the front part of centre console
X
downwards until you hear centre console
6 engage in securing rings
* optional
Luggage compartment cover* and
safety net*
Luggage compartment cover*
G Risk of accident and injury
The luggage compartment cover is not a
restraint system. Secure the load under the
luggage compartment cover by suitable
means. Make sure that the luggage com-
partment cover is engaged securely. If lug-
gage is not sufficiently secured, it can be
thrown over the backrest into the
passenger compartment during, for
instance, heavy braking, sudden changes of
direction or in the event of an accident. You
6 could cause an accident or cause injury to
yourself and others.
on supporting
The luggage compartment cover can be
6
attached behind the 2nd row of seats and 3rd
row of seats.
!
When loading the vehicle, make sure that
you do not stack the load in the luggage
compartment higher than the lower edge of
6
the side windows. Do not place heavy
objects on top of the luggage compartment
1 or 2.
cover.
Loading and stowing
Extending and retracting the luggage
compartment cover
Luggage compartment cover fitted behind the 3rd
row of seats
Handle
1
Guide
2
i
Short wheelbase vehicles:
If the luggage compartment cover is instal-
led behind the 3rd row of seats, it covers
the whole of the luggage compartment. It
cannot be extended and hooked in.
To extend: pull the luggage compartment
X
cover towards you by handle 1.
Hook the luggage compartment cover into
X
guides 2 on the left and right.
Controls
Z
197
