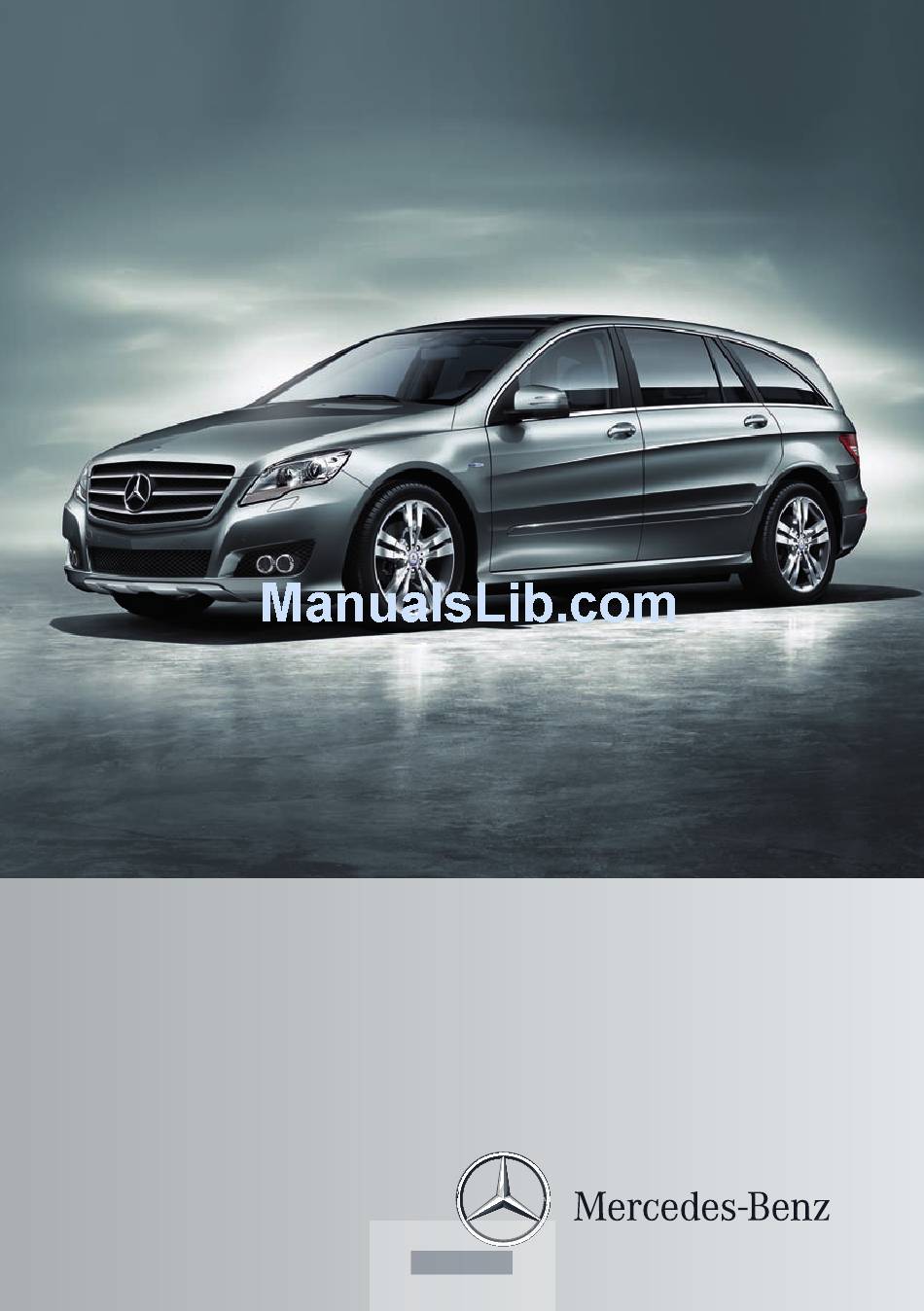

Page 1 R-Class Operator's Manual I n f o r ma t i o n P r o v i d e d b y :...
Page 2 Symbols These warning notes draw your attention to hazards that could cause damage to your Registered trademarks: vehicle. BabySmart™ is a registered trademark of the Siemens Automotive Corp. This symbol indicates useful instructions or further information that could be helpful ®...
Page 3 Welcome to the world of Mercedes-Benz Before you drive off, please familiarize yourself with your vehicle and read this manual, especially the safety and warning notes. This will help you to obtain the maximum pleasure from your vehicle and avoid endangering yourself and others.
Page 4 I n f o r m a t i o n P r o v i d e d b y :...
Page 5: Contents
Contents Index ............4 At a glance ........... 27 Introduction ......... 21 Safety ........... 37 Opening/closing ......... 71 Seats, steering wheel and mirrors ..95 Lights and windshield wipers ..113 Climate control ......... 129 Driving and parking ......143 On-board computer and displays ..
Page 6 ....135 Audio system Active service system PLUS see separate operating instructions see ASSYST PLUS service interval Authorized Mercedes-Benz Center display see Qualified specialist workshop Adaptive Damping System (ADS) ..181 AUTO lights Additives (engine oil) ......358 Display message ......
Page 7 Index Breakdown see Flat tire Back support see Towing away see Lumbar support Bulbs Backup lamp see Changing bulbs Changing bulbs ......123 Display message ......224 BAS (Brake Assist System) ....65 California Basic settings Important notice for retail see Settings customers and lessees ....
Page 8 Index Cargo compartment floor ....296 Climate control Cargo net Automatic climate control (3- zone) ..........132 Attaching ........261 Controlling automatically ....136 Important safety information ..260 Cargo tie down rings ......257 Cooling with air dehumidification . . 135 Defrosting the windshield ....
Page 9 Index Coolant (engine) Diesel particle filter ......166 Checking the level ......285 Digital speedometer Display message ......225 Displaying ........202 Notes ..........359 Setting the unit (on-board Temperature gauge ......202 computer) ........205 Cooling DIRECT SELECT lever see Climate control see Automatic transmission Crash-responsive emergency...
Page 10 Wet road surface ......167 Driver's seat DVD audio (on-board computer) ..203 see Seats Driving abroad Mercedes-Benz Service ....287 Symmetrical low beam ....114 EASY-ENTRY feature Driving on flooded roads ....168 3rd row of seats ......103 Driving safety systems Activating/deactivating ....
Page 11 Index Emergency spare wheel Exterior mirrors Storage location ......297 Adjusting ........110 Stowing .......... 298 Dipping (automatic) ....... 111 Emergency Tensioning Devices Folding in/out (automatically) ..110 Folding in/out (electrically) ... 110 Function ........... 55 Folding in when locking (on-board Safety guidelines ......
Page 12 Immobilizer .......... 68 Gear or selector lever (cleaning Indicator and warning lamps guidelines) ......... 293 DISTRONIC ........245 Genuine Mercedes-Benz parts ..352 Indicator lamps Glove box ........... 249 see Warning and indicator lamps GTW (Gross Trailer Weight) Insect protection on the radiator ..283 (definition) .........
Page 13 Index Delayed switch-off (on-board Lights computer) ........208 Activating/deactivating the Emergency lighting ......119 exterior lighting delayed switch- Manual control ....... 119 off ..........207 Overview ........118 Activating/deactivating the Reading lamp ......... 118 interior lighting delayed switch-off . 208 see Interior lighting Automatic headlamp mode ....
Page 14 Index Modifying the programming Setting for driving abroad (symmetrical) ......... 114 (SmartKey) ........... 75 Switching on/off ......115 MOExtended run-flat system ... 309 Luggage net ........251 Lumbar support Operating ........203 Adjusting the 4-way lumbar see separate operating instructions support ..........
Page 15 Index Convenience submenu ....209 Panorama sliding sunroof Displaying a service message ..287 Important safety notes ....89 Displaying the coolant Parking temperature ........202 Important safety notes ....163 Displaying the outside Parking brake ........ 164 temperature ........202 Position of exterior mirror, front- Display messages ......
Page 16 Index Pulling away (automatic Refueling transmission) ........147 Fuel gauge ........29 Important safety notes ....156 Refueling process ......158 see Fuel Qualified specialist workshop ... 24 Remote control Garage door opener ....... 275 Reporting Malfunctions relevant to safety ..24 Radar sensor system Reserve (fuel tank) Activating/deactivating ....
Page 17 Index Seat Service interval display Folding down the 2nd row of Displaying service messages ..287 seats ..........254 Hiding service messages ....287 Important safety notes ....97 Notes ..........287 Resetting the 2nd row of seats ..256 Service messages ......
Page 18 Index Door central locking/unlocking ..72 Buttons (on-board Important safety notes ....72 computer) ........199 Loss ..........78 Important safety notes ....107 Mechanical key ........ 75 Paddle shifters ....... 153 Positions (ignition lock) ....145 Steering wheel heating ....108 Problem (malfunction) .....
Page 19 Index Opening/closing (automatically Tire pressure from outside) ........83 Calling up (on-board computer) ..331 Opening/closing (from outside) ..82 Checking manually ......329 Tail lamps Display message ......231 Display message ......224 Maximum ........328 see Lights Notes ..........327 Tank Not reached (TIREFIT) ....
Page 20 Index Maximum load on a tire Towing a trailer (definition) ........345 Coupling up a trailer ...... 192 Maximum permissible tire Decoupling a trailer ....... 193 pressure (definition) ....... 344 Driving tips ........191 Maximum tire load ......337 Important safety notes ....191 Maximum tire load (definition) ..
Page 21 Index Unlocking Warning and indicator lamps Emergency unlocking ....... 81 ABS ..........240 From inside the vehicle (central Brakes ........... 239 unlocking button) ......80 Check Engine ......... 244 Cruise control ........ 171 Distance warning ......245 ® ..........241 Vanity mirror (in sun visor) ....
Page 22 Index Replacing the wiper blades .... 125 Switching on/off ......124 Winter driving Important safety notes ....324 Slippery road surfaces ....170 Snow chains ......169, 325 Winter operation Radiator cover ....... 283 Winter tires M+S tires ....... 169, 324 Wiper blades Cleaning .........
Page 23: Service And Warranty Information
Operator's Manual. approved for the type of vehicle. Country-specific differences are possible. Mercedes-Benz tests genuine parts as well as Please note that your vehicle may not be conversion parts and accessories which have equipped with all features described. This...
Page 24: Maintenance
Booklet with you when you bring the vehicle purchase price or lease price, if after a to an authorized Mercedes-Benz Center. The reasonable number of repair attempts service advisor will record every service for Mercedes-Benz USA, LLC and/or its you in the Service and Warranty Booklet.
Page 25: Safety Notes
If you sell your Mercedes, please leave the entire literature in the vehicle so that it is Contact an authorized Mercedes-Benz Center available to the next owner. for repairs or modifications to electronic components.
Page 26: Customer Relations Department
Introduction traffic rules and regulations Qualified specialist workshop laws and safety standards pertaining to An authorized Mercedes-Benz Center is a motor vehicles qualified specialist workshop. It has the necessary specialist knowledge, tools and qualifications to correctly carry out the work Problems with your vehicle required on your vehicle.
Page 27: Data Acquisition
Damage to your vehicle that arises from culpable contraventions against these instructions are not covered either by Mercedes-Benz Limited Warranty or by the New or Used-Vehicle Warranty of Daimler AG. Data stored in the vehicle...
Page 28 I n f o r ma t i o n P r o v i d e d b y :...
Page 29 Cockpit ..........28 Instrument cluster ......29 Multifunction steering wheel ..... 31 Center console ........32 Overhead control panel ...... 34 Door control panel ......35 I n f o r ma t i o n P r o v i d e d b y :...
Page 30 Cockpit Cockpit Function Page Function Page Steering wheel paddle Adjusts the steering wheel shifters manually Cruise control lever Adjusts the steering wheel electrically Instrument cluster Steering wheel heating Horn Parking brake DIRECT SELECT lever On-board diagnostics PARKTRONIC warning socket display Opens the hood Overhead control panel Releases the parking brake...
Page 31: Fuel Gauge
Instrument cluster Instrument cluster Displays and controls Function Page Function Page Speedometer with Tachometer segments Fuel gauge Adjusts the instrument Multifunction display cluster lighting: dimmer Clock Reset button Adjusts the instrument cluster lighting: brighter I n f o r ma t i o n P r o v i d e d b y :...
Page 32: Warning And Indicator Lamps
Instrument cluster Warning and indicator lamps Function Page Function Page Turn signal The lamp lights up briefly, ® but has no function. Seat belt Brakes (USA only) Diesel engine: preglow ® Distance warning signal Low-beam headlamps On vehicles without DISTRONIC, the lamp lights Check Engine (Canada up briefly but has no only)
Page 33: Settings Menu
Multifunction steering wheel Multifunction steering wheel Function Page Function Page Multifunction display Switches on the Voice COMAND; see the separate Control System; see the operating instructions separate operating instructions Rejects or ends a call Exits phone book/redial Selects a menu: scrolls memory back and forth Makes or accepts a call...
Page 34: Upper Section
Center console Center console Center console, upper section Function Page Function Page Audio system/COMAND; £ Hazard warning see the separate operating lamps instructions ATA indicator lamp c Seat heating c PARKTRONIC s Seat ventilation ® å ESP Á Level control e Adaptive Damping Selects the drive program System...
Page 35: Lower Section
Center console Center console, lower section Function Page Function Page Stowage compartment Stowage compartment Ashtray Stowage tray Cigarette lighter Stowage compartment Cup holder I n f o r ma t i o n P r o v i d e d b y :...
Page 36: Overhead Control Panel
Overhead control panel Overhead control panel Function Page Function Page p Switches the left- G SOS button (mbrace hand reading lamp on/off system) | Switches the Rear-view mirror automatic interior lighting Reading lamps control on/off Buttons for the garage door u Switches the rear opener interior lighting on/off...
Page 37: Control Panel
Door control panel Door control panel Function Page Opens the door %& Unlocks/locks the vehicle 7 Adjusts the exterior mirrors Zö\ Selects the exterior mirror, electrically folds the exterior mirrors in/out W Opens/closes the side windows n Activates/ deactivates the override feature for the side windows in the rear compartment...
Page 38 I n f o r ma t i o n P r o v i d e d b y :...
Page 39 Useful information ......38 Occupant safety ........38 Children in the vehicle ......56 Panic alarm .......... 64 Driving safety systems ....... 64 Theft deterrent locking systems ..68 I n f o r ma t i o n P r o v i d e d b y :...
Page 40: Introduction
Occupant safety Useful information interconnected electronic systems, can lead to the restraint systems no longer functioning as intended. This Operator's Manual describes all models and all standard and optional Air bags or Emergency Tensioning Devices equipment of your vehicle available at the (ETDs), for example, could deploy time of publication of the Operator's inadvertently or fail to deploy in accidents...
Page 41: Safety Guidelines
Air bags and ETDs are designed to function while driving on a one-time-only basis. An air bag or ETD that has deployed must be replaced. PRE- For your safety, Mercedes-Benz strongly ® SAFE has electrically operated reversible recommends that you have the system...
Page 42: Important Safety Notes
WARNING injuries resulting from air bag deployment. To reduce the risk of injuries during front air If you sell your vehicle, Mercedes-Benz bag inflation, the driver and front-passenger strongly recommends that you inform the must always be seated correctly and have subsequent owner that the vehicle is their seat belts fastened accordingly.
Page 43 If sized child restraint, infant you have any difficulties, please contact an restraint, or booster seat authorized Mercedes-Benz Center. recommended for the size and Do not lean your head or chest close to the weight of the child.
Page 44: Side Impact Air Bag
Contact an authorized deceleration. In the first deployment stage, Mercedes-Benz Center. the front air bag is filled with enough propellant gas to reduce the risk of injuries. I n f o r ma t i o n P r o v i d e d b y :...
Page 45: Window Curtain Air Bag
Only use seat covers which have been tested Side impact air bags will not deploy in side and approved by Mercedes-Benz for your impacts which do not exceed the system's vehicle model. Using other seat covers may...
Page 46 Mercedes-Benz Center. The OCS categorizes the occupant on the For safety reasons, Mercedes-Benz front-passenger seat by means of a weight recommends that you only use seat sensor. The front-passenger front air bag is...
Page 47 Occupant safety being up to or less than the weight of a typical If the 24 indicator lamp is not 12-month-old child in a standard child illuminated, the front passenger front air bag restraint, the 42 indicator lamp is activated and will be deployed will illuminate when the engine is started and in the event of certain frontal impacts remain illuminated.
Page 48 Occupant safety Children can be killed or seriously injured by If you place a child in a forward-facing child an inflating air bag. Note the following restraint on the front-passenger seat: important information when circumstances move the seat as far back as possible require you to place a child in the front- use the proper child restraint passenger seat:...
Page 49: System Self-Test
Contact an If an adult occupant is properly sitting on the authorized Mercedes-Benz Center. passenger seat and the OCS classifies the Only have the seat repaired or replaced at an occupant as an adult, the 42 authorized Mercedes-Benz Center.
Page 50 OCS checked as soon as possible at an authorized Mercedes-Benz Center. Do not transport a child on the front- passenger seat as long as the OCS is not functioning. Observe the additional display messages in the multifunction display ( page 220).
Page 51 Occupant safety WARNING If the 42 indicator lamp does not illuminate or remains out with the weight of a typical 12-month-old child in a standard child restraint or less, or is unoccupied, on the front- passenger seat, do not transport a child on the front-passenger seat until the system has been repaired.
Page 52 Occupant safety PRO head restraints/NECK-PRO luxury head restraints checked at an authorized restraints may not function properly and in Mercedes-Benz Center after a rear-end the event of a rear-end collision may not offer collision. the protection they are designed to provide.
Page 53 Occupant safety workshop, e.g. an authorized Mercedes- WARNING Benz Center. Always fasten your seat belt before driving off. Always make sure all of your passengers are properly restrained. You and your passengers should always wear seat belts. Failure to wear and properly fasten and position your seat belt greatly increases your risk of injuries and their likely severity in an accident.
Page 54 Only use seat belts which have been approved ribs or abdomen, which could severely by Mercedes-Benz. injure internal organs such as your liver or Do not make any modifications to the seat spleen.
Page 55: Fastening
Occupant safety keep both feet on the floor in front of the seat. When using a seat belt to secure infant restraints, toddler restraints, or children in booster seats, always follow the child seat manufacturer's instructions. WARNING Do not pass seat belts over sharp edges. They could tear.
Page 56: Releasing
Occupant safety For more information about releasing the seat To raise: slide the belt sash guide upwards. belt with release button ?, see "Releasing The belt sash guide engages in various positions. seat belts" ( page 54). To lower: press and hold belt sash guide Seat belt adjustment release :.
Page 57: Belt Force Limiters
Occupant safety Emergency Tensioning Devices, seat If the driver or front passenger have not belt force limiters fastened their seat belt after 6 seconds and the doors are closed, the 7 seat belt The seat belts for the following seats are warning lamp lights up.
Page 58: In The Vehicle
Tensioning Devices, always observe the Observe all warning signs in the vehicle safety instructions. These are available from interior and on the infant or child restraint. any authorized Mercedes-Benz Center. WARNING ® The PRE-SAFE system has electrically...
Page 59 Children in the vehicle Children can be killed or seriously injured by If you place a child in a forward-facing child an inflating air bag. Note the following restraint on the front-passenger seat: important information when circumstances move the seat as far back as possible require you to place a child in the front- use the proper child restraint passenger seat:...
Page 60: Anchors
Children in the vehicle retractor ensures the seat belt will not WARNING slacken once the child restraint system has When leaving the vehicle, always remove the been secured. SmartKey from the ignition lock. Always take Installing a child restraint system: the SmartKey with you and lock the vehicle.
Page 61 Children in the vehicle seat belt lies properly across their bodies without the need for a booster seat. Install the child restraint system according to the manufacturer's instructions. The child restraint system must be installed firmly on both brackets. An incorrectly installed child restraint system can come loose in the event of an accident, causing the child to be severely or fatally injured.
Page 62: Top Tether
Children in the vehicle Outer seats in the 2nd and 3rd row Securing rings for the third row of seats Install the LATCH-type (ISOFIX) child Remove respective covering cap : of the restraint system. Comply with the Top Tether anchorage. manufacturer's instructions when Move the head restraint upwards.
Page 63 Do not secure the Top Tether hook to the loop Not all child restraint systems, including some underneath the Top Tether anchorage if you Mercedes-Benz approved child restraint are securing a child restraint system in the systems, can be used in this seat position. For third row of seats.
Page 64 Children in the vehicle Ensure that: Top Tether hook A is hooked into Top Tether anchorage ? as shown Top Tether belt B is not twisted Top Tether belt B is routed between the seat backrest and the cargo compartment cover if the cargo compartment cover is installed.
Page 65: Child-Proof Locks Important Safety Notes
Children in the vehicle vehicle is unlocked, the door can be opened Child-proof locks from the outside. Important safety notes WARNING When leaving the vehicle, always remove the SmartKey from the ignition lock. Always take the SmartKey with you and lock the vehicle. Do not leave children unattended in the vehicle, even if they are secured in a child restraint system, or with access to an...
Page 66: Overview
Driving safety systems 1. This device may not cause harmful Panic alarm interference, and 2. this device must accept any interference received, including interference that may cause undesired operation. Any unauthorized modification to this device could void the user's authority to operate the equipment.
Page 67: Important Safety Notes
Driving safety systems section must never be exploited in a reckless may come on as well as messages in the or dangerous manner which could jeopardize multifunction display that may appear. the user's safety or the safety of others. If the ABS malfunctions, the wheels may lock Always adjust your driving style to the during hard braking, reducing the steering prevailing road and weather conditions and...
Page 68: Ets (Electronic Traction System)
Therefore, the braking distance may increase. dynamometer, please consult an authorized Mercedes-Benz Center beforehand. You could otherwise damage ® (Electronic Stability Program) the drive train or the brake system.
Page 69: Trailer Stabilization
Driving safety systems ® is activated automatically when the WARNING engine is started. ® When the å ESP OFF warning lamp is lit, ® It may be best to deactivate ESP in the ® is deactivated. following situations: ® If the ÷ ESP warning lamp and the when using snow chains ®...
Page 70: Notes
Theft deterrent locking systems You must apply the brakes yourself in order Trailers with a high center of gravity may tip to maintain the appropriate distance to the over before the system recognizes swaying of vehicle in front and prevent a collision. the trailer.
Page 71: Ata (Anti-Theft Alarm System)
10 started when the starter battery is fully seconds. charged, the immobilizer may be faulty. Contact an authorized Mercedes-Benz To deactivate: unlock the vehicle with the Center or call 1-800-FOR-MERCedes (in SmartKey or KEYLESS-GO. USA) or 1-800-387-0100 (in Canada).
Page 72 I n f o r ma t i o n P r o v i d e d b y :...
Page 73 Useful information ......72 SmartKey ..........72 Doors ............ 79 Cargo compartment ......81 Side windows ........86 Sliding sunroof ........89 I n f o r ma t i o n P r o v i d e d b y :...
Page 74: Important Safety Notes
Mercedes-Benz Center. and/or serious personal injury. They could: If the SmartKey is faulty, contact Roadside injure themselves on vehicle parts Assistance or an authorized Mercedes-Benz be seriously or fatally injured by extreme Center. heat or cold injure themselves or have an accident with...
Page 75: Locking
SmartKey Any unauthorized modification to this When it is dark, the surround lighting also device could void the user’s authority to comes on if it is activated in the on-board operate the equipment. computer ( page 207). The product label with FCC ID and IC You can also set an audible signal to confirm certification number can be found in the that the vehicle has been locked or unlocked.
Page 76 SmartKey 2. this device must accept any interference can then not be locked or started using received, including interference that may KEYLESS-GO. cause undesired operation of the device. If the KEYLESS-GO key has been removed Any unauthorized modification to this from the vehicle, e.g.
Page 77: Mechanical Key
SmartKey To unlock the vehicle: touch the inner The KEYLESS-GO function is changed as surface of the door handle. follows: To lock the vehicle: press locking To unlock the driver's door: touch the button :. inner surface of the door handle on the driver's door.
Page 78: Changing The Battery
Important safety notes It is advisable to have batteries replaced at a The battery can be obtained from any qualified specialist workshop, e.g. at an authorized Mercedes-Benz Center. authorized Mercedes-Benz Center. If the SmartKey battery is checked within WARNING the signal reception range of the vehicle, pressing the &...
Page 79 SmartKey arrow until battery tray cover : opens. When doing so, do not hold cover : shut. Remove battery tray cover :. Repeatedly tap the SmartKey against your palm until battery = falls out. Insert the new battery with the positive terminal facing upwards.
Page 80: Loss
81) or unlock ( page 81) the vehicle using the mechanical key. You have lost a Have the SmartKey canceled at an authorized Mercedes-Benz SmartKey. Center. Report the loss immediately to the vehicle insurers. If necessary, have the locks changed as well.
Page 81: Important Safety Notes
Doors Problem Possible causes/consequences and M Solutions You have lost the Report the loss immediately to the vehicle insurers. mechanical key. If necessary, have the locks changed as well. The engine cannot be The on-board voltage is too low. started using the Switch off non-essential consumers, e.g.
Page 82 Doors The central locking/unlocking button does Unsecured or improperly positioned cargo not lock or unlock the fuel filler flap. increases a child's risk of injury in the event The buttons are located on both front doors. strong braking maneuvers You cannot unlock the vehicle centrally from the inside if the vehicle has been sudden changes of direction locked with the SmartKey or KEYLESS-GO.
Page 83: Vehicle
Cargo compartment vehicle are turning at a speed of more than Pull the door handle again. 9 mph (15 km/h). Insert the mechanical key into the You could therefore be locked out when: SmartKey. the vehicle is being pushed. the vehicle is being towed. Locking the vehicle the vehicle is being tested on a If the vehicle can no longer be locked with the...
Page 84 Cargo compartment WARNING other dangers, deadly carbon monoxide (CO) gases may enter vehicle interior resulting in When leaving the vehicle, always remove the unconsciousness and death. SmartKey from the ignition lock. Always take the SmartKey with you and lock the vehicle. The tailgate swings upwards and to the Do not leave children unsupervised in the rear when opened.
Page 85 Cargo compartment To open the tailgate completely, a minimum compartment opening when closing the clearance of 7.20 ft (2.20 m) above the tailgate. Be especially careful when small ground is necessary. children are around. Opening You can open the tailgate automatically using the SmartKey or the handle in the tailgate.
Page 86 Cargo compartment To interrupt the opening procedure, press or pull the door-mounted remote tailgate switch. When the SmartKey is not inserted in the starter switch (vehicles with KEYLESS-GO: Make sure the vehicle's on-board electronics have status 0): Press button F on the SmartKey.
Page 87: Limiting The Opening Angle
Cargo compartment To open: pull remote operating switch : Press handle : in the direction of for the tailgate until the tailgate opens. arrow ; as far as it will go and hold it there. From this position, pull handle : in the To close: turn the SmartKey to position 1 direction of arrow = as far as it will go and or 2 in the ignition lock.
Page 88: Opening/Closing
Side windows Deactivating WARNING Do not keep any part of your body up against Press and hold the closing button the window pane when opening a window. The page 83) in the tailgate until you hear downward motion of the pane may pull that two short tones.
Page 89: Convenience Opening Feature
Side windows automatic operation by operating the For safety reasons, the hinged side switch again. windows can only be opened again after four seconds. You can continue to operate the side windows after you switch off the engine or remove the SmartKey. This function is Convenience opening feature available for up to five minutes or until the driver's or front-passenger door is opened.
Page 90 Side windows panorama roof with power tilt/sliding Convenience closing panel are fully closed. General information Make sure that all the side windows and the sliding sunroof or panorama roof with When you lock the vehicle, you can power tilt/sliding panel are closed. simultaneously: On vehicles with a panorama roof with power close the side windows...
Page 91: Resetting
Sliding sunroof If a side window is obstructed during closing Resetting the side windows and reopens again slightly: You must reset each side window if: Immediately after the window blocks, pull the battery has been disconnected or has the corresponding switch again until the become discharged.
Page 92: Opening/Closing
Sliding sunroof lock. This function is available for up to five The opening/closing procedure of the sliding minutes or until the driver's or front- sunroof can be immediately halted by passenger door is opened. releasing the sliding sunroof switch or, if the sliding sunroof switch was moved past the resistance point and released, by moving the sliding sunroof switch in any direction.
Page 93: Panorama Roof With Power Tilt Sliding Panel
Sliding sunroof Turn the SmartKey to position 2 in the resistance in the direction of arrow ;. By ignition lock. pressing again, the automatic opening process can be stopped. Raise the sliding sunroof fully at the rear page 90). The automatic opening feature is available only when the panorama roof with power Keep the 2 switch pressed for another tilt/sliding panel is closed.
Page 94: Resetting
Sliding sunroof sunblinds can be fully opened again When opening the roller sunblinds, you page 91). can initiate an automatic opening process. To do so, press the 2 switch briefly If this is not the case, repeat the steps beyond the point of resistance in the above again.
Page 95 If the sliding sunroof still cannot be opened or closed due to a malfunction, contact a qualified specialist workshop, e.g. an authorized Mercedes-Benz Center. I n f o r ma t i o n P r o v i d e d b y :...
Page 96 I n f o r ma t i o n P r o v i d e d b y :...
Page 97 Useful information ......96 Correct driver's seat position .... 96 Seats ............ 97 Steering wheel ........107 Mirrors ..........109 Memory functions ......112 I n f o r ma t i o n P r o v i d e d b y :...
Page 98: Correct Driver's Seat Position
Correct driver's seat position you can fasten the seat belt properly. Useful information you have moved the backrest to an almost vertical position. This Operator's Manual describes all models and all standard and optional you have set the seat cushion angle so equipment of your vehicle available at the that your thighs are gently supported.
Page 99: Important Safety Notes
Seats page 110) in such a way that you have with the driver still able to operate the a good view of road and traffic conditions. controls properly. Vehicles with a memory function: save adjust the head restraint so that it is as the seat, steering wheel and exterior mirror close to the head as possible and the center settings (...
Page 100: Adjusting The Seats
Seats Please contact an authorized Mercedes- injury to the head and neck in the event of an Benz Center for more information. accident or similar situation. Do not drive the vehicle without the seat head Other topics: restraints. Head restraints are intended to Cargo compartment enlargement help reduce injuries during an accident.
Page 101: Head Restraints Adjusting
The head restraints must only be removed at a qualified specialist workshop. Mercedes-Benz recommends that you use Push or pull the lower edge of the head a Mercedes-Benz Center for this purpose. restraint in the direction of the arrow. Adjusting the head restraint height electrically...
Page 102 Seats Adjusting the head restraint height hand side bolster : into the desired (second and third row of seats) position. To adjust the angle of the head restraint: push or pull the head restraint in the direction of arrow ;. Rear seat head restraints WARNING For safety reasons, always drive with the rear...
Page 103 Seats you must move the respective seat as far fatal injuries. The seat backrest and seat belt back as possible ( page 101). Then, fold the provide the best restraint when the wearer is seat backrest forwards. in a position that is as upright as possible and You can remove the head restraints in the the seat belt is properly positioned on the second row of seats (center seat and outer...
Page 104: Adjusting The Armrest (2Nd Row Of Seats)
Seats Adjusting seat fore-and-aft adjustment Pull lever : in the direction of the arrow to (outer seats in the 2nd row of seats) the pressure point and hold it in this position. Press your back lightly against the backrest to tilt it towards the rear. Relieve the pressure on the backrest to allow it to fold forwards.
Page 105 Seats direction of the arrow and hold it in this would apply force at the abdomen or neck. position. That could cause serious or even fatal injuries. Fold backrest ; backwards until you hear Do not fold the second-row middle seat and allow occupants to use the folded second-row it engage.
Page 106 Seats Pull release loop : in the direction of the arrow and hold it in this position. The backrest folds forwards. Slide the seat in the 2nd row of seats forwards to the stop. Pull release handle : in the direction of the arrow to the pressure point and hold it in this position.
Page 107: Multicontour Seat
Seats Seat unlocked Make sure that the SmartKey is in position 2 in the ignition lock. When the seat is unlocked, lock verification indicator : is folded out and indicator Use switch : to move the thigh cushion area ; is clearly visible. into the desired position.
Page 108: Switching The Seat Ventilation On Off
Seats Make sure that the SmartKey is in position Switching the seat heating on/off 2 in the ignition lock. Switching on/off To switch on: press button : repeatedly until the desired heating level is set. The three red indicator lamps in the button indicate the heating level you have selected.
Page 109: Important Safety Notes
Steering wheel Make sure that the SmartKey is in position Adjusting the steering wheel 2 in the ignition lock. manually To switch on: press button : repeatedly until the desired ventilation level is set. You can open the side windows and the sliding sunroof using the "Convenience opening"...
Page 110: Steering Wheel Heating
Steering wheel The steering wheel heating may switch off Adjusting the steering wheel temporarily if: electrically the temperature of the vehicle interior is above 86 ‡ (30 †). the temperature of the steering wheel is above 95 ‡ (35 †). Indicator lamp = remains on.
Page 111: Crash-Responsive
Mirrors To stop steering wheel movement do one of you press the Start/Stop button once on the following: vehicles with KEYLESS-GO. Move steering wheel adjustment stalk. When you close the driver's door with the Press one of the memory position buttons. ignition switched on, the steering wheel is Press memory button M.
Page 112: Adjusting
Mirrors Folding the exterior mirrors in or out Exterior mirrors electrically Adjusting the exterior mirrors WARNING Exercise care when using the passenger-side exterior rear view mirror. The mirror surface is convex (outwardly curved surface for a wider field of view). Objects in mirror are closer than they appear.
Page 113: Storing The Parking Position
Mirrors the exterior mirrors fold in automatically as Parking position for the exterior soon as you lock the vehicle from the mirror on the front-passenger side outside. Setting and storing the parking position the exterior mirrors fold out again automatically as soon as you unlock the You can position the front-passenger side vehicle and then open the driver's or front- exterior mirror in such a way that you can see...
Page 114: Memory Function
Memory functions Calling up a stored parking position setting Turn the SmartKey to position 2 in the ignition lock. Adjust the exterior mirror on the front- passenger side with the corresponding button ( page 110). Engage reverse gear. The exterior mirror on the front-passenger side moves to the stored parking position.
Page 115 Useful information ......114 Exterior lighting ........ 114 Interior lighting ......... 118 Replacing bulbs ......... 119 Windshield wipers ......124 I n f o r ma t i o n P r o v i d e d b y :...
Page 116: Symmetrical Low Beam
Have the headlamps converted at a qualified The exterior lighting (except the parking/ specialist workshop, e.g. an authorized standing lamps) switches off automatically if Mercedes-Benz Center, as close to the border you: as possible before driving in these countries. remove the SmartKey from the ignition lock...
Page 117: Automatic Headlamp Mode
Exterior lighting Daytime running lamps in the USA Turn the light switch to $ or Ã. In the USA, the daytime running lamps are deactivated upon delivery from the factory. If the rear fog lamp is switched on: press the light switch in to the stop. To activate the daytime running lamps: activate the daytime running lamps function in the on-board computer...
Page 118: Front Fog Lamps
Exterior lighting Pull the light switch out to the first detent. others. Therefore, turn the light switch to The green N indicator lamp on the light L in fog. switch lights up. The automatic headlamp feature is only an To switch off the front fog lamps: press aid.
Page 119: Combination Switch
Exterior lighting High-beam headlamps To switch off the rear fog lamp: press the light switch in as far as it will go. To switch on the high-beam headlamps: The yellow R indicator lamp on the light turn the SmartKey in the ignition lock to switch goes out.
Page 120: Overview
Interior lighting To switch on the hazard warning lamps: Interior lighting press button :. Overview of interior lighting All turn signals flash. If you now switch on a turn signal using the combination switch, only the turn signal lamp on the corresponding side of the vehicle will flash.
Page 121: Important Safety Notes
Replacing bulbs The interior lighting automatically switches on if you: unlock the vehicle open a door remove the SmartKey from the ignition lock The interior light is activated for a short while when the SmartKey is removed from the ignition lock. You can activate this delayed switch-off using the on-board computer page 208).
Page 122: Other Bulbs
Keep bulbs out of the reach of children. required. Otherwise, they could damage the bulbs, for Mercedes-Benz recommends that you use an example, and injure themselves. authorized Mercedes-Benz Center for this Never use a bulb which has been dropped.
Page 123: Low-Beam Headlamps
Replacing bulbs Changing the front bulbs Removing and installing the cover in the front wheel arch You must remove the cover from the front wheel housing before you can change the front bulbs. Bi-Xenon headlamps Side marker lamp: WY 5 W Turn signal lamp: WY 5 W Parking lamp/standing lamp: W 5 W BV To remove: switch off the lights.
Page 124: Parking Lamps
Replacing bulbs Parking lamp/standing lamp Turn bulb holder ; counter-clockwise and pull it out. Take the bulb out of bulb holder ;. Insert the new bulb into bulb holder ;. Insert bulb holder ; into the lamp and turn it clockwise. Align housing cover : and turn it clockwise until it engages.
Page 125: Side Marker Lamps
Replacing bulbs Insert bulb holder :. Replace the cover in the front wheel arch page 121). Side marker lamp Left-hand side trim panel Remove the cover in the front wheel arch page 121). Turn housing cover : counter-clockwise and pull it out. Pull out bulb holder ;.
Page 126 Windshield wipers Windshield wipers Switching the windshield wipers on/ WARNING Wiper blades are components that are subject to wear and tear. Replace the wiper blades twice a year, preferably in the spring and fall. Otherwise the windows will not be wiped properly.
Page 127: Rear Window Wiper
Mercedes-Benz recommends that you have the wiper blades replaced by a qualified specialist workshop, e.g. at an authorized Combination switch Mercedes-Benz Center.
Page 128 Windshield wipers Replacing the windshield wiper blades Replacing the rear window wiper blade Removing the wiper blades Removing the wiper blade Remove the SmartKey from the ignition lock. Fold the wiper arm away from the windshield. Remove the SmartKey from the ignition lock.
Page 129 Windshield wipers For safety reasons, you should remove the SmartKey from the ignition lock. Switch off the engine using the Start/Stop button and open the driver's door. Remove the cause of the obstruction. Switch the windshield wipers back on. The windshield wipers are inoperative The windshield wiper drive is malfunctioning.
Page 130 I n f o r ma t i o n P r o v i d e d b y :...
Page 131: Climate Control
Useful information ......130 Overview of climate control sys- tems ........... 130 Operating the climate control sys- tem ............. 134 Setting the air vents ......141 I n f o r ma t i o n P r o v i d e d b y :...
Page 132: Important Safety Notes
Overview of climate control systems sunroof/panorama roof with power tilt/ Useful information sliding panel closed. This Operator's Manual describes all Ventilate the vehicle for a brief period models and all standard and optional during warm weather, e.g. using the equipment of your vehicle available at the convenience opening feature ( page 87).
Page 133: Dual-Zone Automatic Climate Control
Overview of climate control systems Control panel for dual-zone automatic climate control To set the temperature, left ( page 137) To set climate control to automatic ( page 136) To defrost the windshield ( page 138) To increase the airflow ( page 138) To direct the airflow through the defroster vents ( page 138)
Page 134 Overview of climate control systems Control panel for 3-zone automatic climate control Canada only Front control panel To set the temperature, left ( page 137) To set climate control to automatic ( page 136) To direct the airflow through the defroster vents, left ( page 138) To defrost the windshield ( page 138)
Page 135 Overview of climate control systems To switch the MONO function on/off ( page 138) Rear control panel To increase the airflow ( page 138) To set the temperature ( page 137) To set the rear-compartment climate control to automatic ( page 136) To direct the airflow through the rear air vents ( page 138)
Page 136: Activating/Deactivating Climate Control
Operating the climate control system To reduce the airflow ( page 138) To switch the rear window defroster on/off ( page 139) To activate/deactivate air-recirculation mode ( page 140) Interior temperature sensor To switch climate control on/off ( page 134) Rear control panel To increase the airflow ( page 138)
Page 137: Cooling With Air Dehumidification
Operating the climate control system Switching the front climate control on/ To switch off: press the Y button. off using the front control panel MODE is shown in the display behind the Y symbol. Turn the SmartKey to position 2 in the Press button ^.
Page 138: Indicator Lamp
Operating the climate control system Automatic mode will achieve optimal The cooling with air dehumidification operation if cooling with air dehumidification function uses refrigerant R134a. This is also activated. If desired, cooling with air coolant does not contain dehumidification can be deactivated. chlorofluorocarbons, and therefore does not damage the ozone layer.
Page 139: Setting The Temperature
Operating the climate control system To increase/reduce the front- To deactivate: press the K or I compartment temperature using the button. front control unit: turn the SmartKey in Automatic airflow is deactivated and the the ignition lock to position 2. airflow is controlled according to the level set.
Page 140: Defrosting The Windshield
Operating the climate control system Only change the temperature setting in Setting the airflow small increments. Start at 72 ‡ (22 †). Turn the SmartKey to position 2 in the ignition lock. To increase/reduce: press the K or Setting the air distribution I button.
Page 141: Problem With The Rear Window Defroster
Operating the climate control system Windows fogged up on the outside The climate control system switches to the following functions: Switch on the windshield wipers. cooling with air dehumidification on Press the P/\ or O/c high airflow air distribution button. high temperature You should only select this setting until air distribution to the windshield and...
Page 142 Operating the climate control system Air-recirculation mode deactivates Activating/deactivating air- automatically: recirculation mode after approximately five minutes if You can deactivate the flow of fresh air if outside temperatures are less than about unpleasant odors are entering the vehicle 41 ‡ (5 †) from outside.
Page 143: Air Vents Important Safety Notes
Setting the air vents Residual heat is deactivated Setting the center air vents automatically: after about 30 minutes when the ignition is switched on if the battery voltage drops if the coolant temperature is too low Setting the air vents Important safety notes WARNING Center air vent, left...
Page 144: Rear
Setting the air vents Setting the rear-compartment air vents Setting the center vents in the rear compartment Side air vents in the rear compartment (third row of seats) Defroster vent B-pillar air vent Thumbwheel for B-pillar air vent Rear control panel To open/close: turn thumbwheel = up or Rear-compartment air vent, right down.
Page 145 Useful information ......144 Breaking-in notes ......144 Driving ..........144 Automatic transmission ....150 Refueling ..........156 Parking ..........163 Driving tips ........165 Driving systems ........ 170 Trailer towing ........191 I n f o r ma t i o n P r o v i d e d b y :...
Page 146 Driving Always observe the respective speed Useful information restrictions. This Operator's Manual describes all models and all standard and optional Driving equipment of your vehicle available at the time of publication of the Operator's Important safety notes Manual. Country-specific differences are possible.
Page 147: Start/Stop Button
Driving Where possible, avoid spinning the drive If you depress the brake pedal and press the wheels when pulling away on slippery Start/Stop button, the engine starts roads. You could otherwise damage the immediately. drive train. The Start/Stop button can be removed from the ignition lock.
Page 148: Starting The Engine
Driving Do not run the engine in confined areas (such as a garage) which are not properly ventilated. If you think that exhaust gas fumes are entering the vehicle while driving, have the cause determined and corrected immediately. If you must drive under these conditions, drive only with at least one window fully open at all times.
Page 149: Pulling Away
Driving Using KEYLESS-GO to start the engine when the engine is idling normally and when your right foot is firmly on the brake pedal. WARNING As long as the SmartKey is in your vehicle, the It is only possible to shift the transmission vehicle can be started.
Page 150 Driving WARNING Never leave the vehicle when it is held by hill start assist. After approximately one second, hill start assist will no longer brake your vehicle and it could roll away. Take your foot off the brake pedal. Once you have taken your foot off the brake pedal, the vehicle is held for around one second.
Page 151 If the engine does not start after several attempts: Consult a qualified specialist workshop, e.g. an authorized Mercedes-Benz Center. The engine does not The on-board voltage is too low because the battery is too weak start. You cannot hear or discharged.
Page 152: Direct Select Lever
Only depress the accelerator pedal slightly. running smoothly and Have the cause rectified immediately at a qualified specialist is misfiring. workshop, e.g. an authorized Mercedes-Benz Center. Otherwise, non-combusted fuel may get into the catalytic converter and damage it. The coolant The coolant level is too low.
Page 153: Transmission Position Display
Automatic transmission Engaging park position P Unsupervised use of vehicle equipment could result in an accident and/or serious personal Push the DIRECT SELECT lever in the injury. direction of arrow P. Using the SmartKey: The automatic transmission shifts automatically into park position P if you make sure that the ignition is switched on.
Page 154: Changing Gear
Have the vehicle electronics a shift range restriction, if selected checked at a qualified specialist the selected drive program workshop, e.g. an authorized Mercedes-Benz Center, E/S( page 153) immediately. the position of the accelerator pedal the road speed...
Page 155: Driving Tips
Automatic transmission Driving tips Program selector button Kickdown General information Use kickdown for maximum acceleration. The program selector button allows you to choose between different driving Vehicles for USA: fully depress the characteristics. accelerator pedal. The transmission shifts to a lower gear depending on the engine speed.
Page 156: Automatic Drive Program
Automatic transmission You can restrict or derestrict the shift range 5 To use the braking effect of the by using the steering wheel paddle shifters. engine on downhill gradients and for driving: on steep mountain roads Automatic drive program in mountainous terrain Drive program E is characterized by the in arduous conditions following:...
Page 157 Automatic transmission Selecting the ideal shift range Pull the left-hand steering wheel paddle shifter and hold it in position. The automatic transmission shifts to the gear which allows optimum acceleration and deceleration. To do this, the automatic transmission shifts down one or more gears.
Page 158: Emergency Mode
Possible causes/consequences and M Solutions The transmission has The transmission is losing oil. problems shifting gear. Have the transmission checked at a qualified specialist workshop, e.g. an authorized Mercedes-Benz Center, immediately. The acceleration ability The transmission is in emergency mode. is deteriorating.
Page 159: Gasoline
You can find more information under “Fuel” injury. page 356), or by contacting an authorized Mercedes-Benz Service Center WARNING or visiting http://www.mbusa.com (USA Do not fill diesel tanks with gasoline. Do not only).
Page 160: Fuel Filler Flap
Refueling obtained from oil companies, e.g. at gas Turn the fuel filler cap counter-clockwise stations. and remove it. Insert the fuel filler cap into the holder bracket on the inside of filler flap ;. Refueling Completely insert the pump nozzle into the filler neck and refuel.
Page 161 Refueling Open the tailgate. Open the right-hand side trim panel page 123). Pull emergency release : in the direction of the arrow. The fuel filler flap is unlocked. Open the fuel filler flap. I n f o r ma t i o n P r o v i d e d b y :...
Page 162 Refueling Problems with fuel and the fuel tank Problem Possible causes/consequences and M Solutions Fuel is leaking from the Risk of explosion or fire vehicle. The fuel line or the fuel tank is defective. Turn the SmartKey to position 0( page 145) in the ignition lock immediately and remove it.
Page 163: Adding
Contact an Do not inhale any ammonia vapors that may authorized Mercedes-Benz Center with any be released. Only refill the DEF tank in well questions or, if necessary, contact Roadside ventilated areas.
Page 164 Refueling use a sponge and cold water to clean it. DEF Turn DEF filler cap ? counter-clockwise residues crystallize after time and and open it. contaminate the affected surfaces. Filler cap ? is secured with a plastic strap. DEF is not a fuel additive and must not be added to the fuel tank.
Page 165: Switching Off
Parking Insert DEF cap : as shown and turn it turn the SmartKey in the ignition lock to clockwise as far as it will go. position 0 and remove the SmartKey from the ignition lock, or press the KEYLESS-GO Stow lug wrench ; and ratchet wrench Start/Stop button.
Page 166: Parking Brake
Parking automatic transmission shifts to P automatically. Using KEYLESS-GO Press the Start/Stop button ( page 145). The engine stops and all the indicator lamps in the instrument cluster go out. When the driver's door is closed, this corresponds to SmartKey position 1. When the driver's door is open, it corresponds to SmartKey position 0 or "SmartKey To apply: depress parking brake ;...
Page 167: Drinking And Driving
Driving tips Fuel consumption also increases when Driving tips driving in cold weather, in stop-and-go traffic General driving tips and in mountainous terrain. Important safety notes Drinking and driving WARNING WARNING Always remember that you must concentrate Drinking and driving and/or taking drugs and primarily on driving the vehicle.
Page 168: Driving Tips
Furthermore, all specific drive train. This type of damage is not service work must be carried out at regular covered by the Mercedes-Benz warranty. intervals and in accordance with the Mercedes-Benz service requirements. Details Heavy and light loads can be found in the Service Booklet.
Page 169: Maintenance
Have the brake pads and brake fluid installed warm up the brake discs, thereby drying them or replaced at a qualified specialist workshop, more quickly and protecting them against e.g. an authorized Mercedes-Benz Center. corrosion. WARNING If other than recommended brake pads are...
Page 170: Driving On Flooded Roads
Driving tips at high speeds. This improves the grip of the For this reason, in the event of heavy rain or brake pads. in conditions in which hydroplaning can occur you must drive in the following manner: WARNING reduce your speed Make sure that you do not endanger other avoid ruts road users when you apply the brakes.
Page 171: Snow Chains
Winter tires which have been specially approved for your At temperatures below 45 ‡(+7 †), use vehicle by Mercedes-Benz, or are of a winter tires or all-season tires. Both types of corresponding standard of quality. tire are identified by the M+S marking.
Page 172: Driving System
Driving systems If you intend to mount snow chains, please Drive particularly carefully on slippery road bear the following points in mind: surfaces. Avoid sudden acceleration, steering and braking maneuvers. Do not use cruise you may not attach snow chains to all control.
Page 173: Cruise Control
Driving systems Cruise control lever The use of the cruise control can be dangerous on winding roads or in heavy traffic because conditions do not allow safe driving at a constant speed. The use of the cruise control can be dangerous on slippery roads.
Page 174: Deactivating
Driving systems Storing the current speed or calling up vehicle's speed to the last speed stored the last stored speed after you have finished overtaking. WARNING Making adjustments in 1 mph (Canada: The set speed stored in memory should only 1 km/h) increments be set again if prevailing road conditions and Briefly press the cruise control lever to the...
Page 175: Important Safety Notes
Driving systems DISTRONIC intended to make cruise control more effective and usable when traffic speeds vary. Important safety notes It is not however, intended to, nor does it, replace the need for extreme care. DISTRONIC regulates the speed and automatically helps you maintain the The responsibility for the vehicle's speed, distance to the vehicle detected in front.
Page 176 Driving systems conditions make it advisable to travel at a The Distronic will not react to stationary constant speed. objects in the roadway (e.g. a stopped vehicle in a traffic jam or a disabled vehicle). The WARNING Distronic will also not respond to oncoming vehicles.
Page 177: Distronic
Driving systems Cruise control lever detected, because it has changed lanes, for example, DISTRONIC is deactivated and you hear a warning tone. Briefly pull the cruise control lever towards you ? or press it up : or down ; to the pressure point.
Page 178 Driving systems Press the cruise control lever to the for the vehicle's distance from other vehicles, pressure point, up : for a higher speed or the speed being driven and for braking in good down ; for a lower speed. time.
Page 179: Setting The Specified Minimum Distance
Driving systems DISTRONIC displays in the time, or adjusts the vehicle's speed to the speedometer last speed stored. Setting the specified minimum distance You can set the specified minimum distance for DISTRONIC by varying the time span between one and two seconds. This time span determines the distance that DISTRONIC should maintain from the vehicle in front, depending on the road speed.
Page 180: Displays In The Multifunction Display
Driving systems Display when DISTRONIC is activated WARNING After this time, you will see the following in DISTRONIC brakes your vehicle with a the multifunction display while DISTRONIC is maximum deceleration of 13 ft/s (4 m/s activated: This corresponds to approximately 40% of your vehicle's maximum possible braking power.
Page 181: Distronic
Driving systems the vehicle's speed to the last speed stored The driver must always be alert, observe all after you have finished overtaking. traffic and intercede as required by means of steering or braking the vehicle. DISTRONIC is automatically deactivated if: you apply the parking brake.
Page 182: Airmatic Package
Driving systems Other vehicles changing lane detected vehicle turns a corner and reveals an obstacle or stationary vehicle, DISTRONIC will not brake for these. Crossing vehicles DISTRONIC has not detected the vehicle cutting in yet. The distance to this vehicle will be too short.
Page 183: Ads (Adaptive Damping System)
Driving systems ADS (Adaptive Damping System) Make changes to the vehicle level while the vehicle is in motion. This enables the vehicle ADS is continuously electronically-controlled. to adjust to the new level as quickly as It adapts the damping characteristics to suit possible.
Page 184 Driving systems The vehicle is automatically lowered to high- While the adjustment is taking place, a speed level when you: message appears in the multifunction display, e.g.: drive faster than 70 mph (112 km/h) drive between 60 mph (96 km/h) and 70 mph (112 km/h) for approximately 20 seconds.
Page 185 Damage of this sort is not covered by the the message will disappear. Mercedes-Benz Limited Warranty. All Once highway level has been reached, wheels must remain either on the ground indicator lamp ; goes out. A message or be fully raised.
Page 186: Parktronic
Driving systems Range of the sensors PARKTRONIC Important safety notes General notes The sensors must be free of dirt, ice and WARNING slush; otherwise they may not function The PARKTRONIC is a supplemental system. correctly. Clean the sensors regularly, taking It is not intended to, nor does it replace, the care not to scratch or damage them need for extreme care.
Page 187: Warning Display
Driving systems When parking, pay particular attention to objects above or below the sensors, such as flower pots or trailer drawbars. PARKTRONIC does not detect such objects when they are in the immediate vicinity of the vehicle. You could damage the vehicle or the objects.
Page 188: Deactivating/Activating
Driving systems Deactivating/activating PARKTRONIC To deactivate/activate PARKTRONIC Indicator lamp If indicator lamp ; lights up, PARKTRONIC is deactivated. PARKTRONIC is automatically activated when you turn the SmartKey to position 2 in the ignition lock. Trailer towing PARKTRONIC is deactivated for the rear area when you establish an electrical connection between your vehicle and a trailer.
Page 189: Rear View Camera
Driving systems Problems with PARKTRONIC Problem Possible causes/consequences and M Solutions Only the red segments PARKTRONIC has malfunctioned and has switched off. in the PARKTRONIC If problems persist, have PARKTRONIC checked at a qualified warning displays are lit. specialist workshop. You also hear a warning tone for approximately two seconds.
Page 190 Mercedes-Benz Even if the object you approach is directly on recommends that you consult a Mercedes- the ground, do not approach the object any Benz Center for this purpose.
Page 191: Blind Spot Assist
Driving systems vehicles, such as motorcycles or bicycles, or may only detect them too late. Monitoring may be affected by dirty sensors, strong spray or poor visibility caused by snow, rain or mist, for example. In this case, vehicles are detected late or not at all. Always pay attention to traffic conditions and your surroundings.
Page 192 Driving systems Due to the nature of the system: warnings may be issued in error when driving close to crash barriers or similar solid lane borders. warnings may be interrupted when driving alongside particularly long vehicles, for example trucks, for a prolonged time. The two sensors for Blind Spot Assist are integrated into the sides of the rear bumper.
Page 193: Trailer Towing
Switching on Blind Spot Assist towing. Make sure that the radar sensor system Contact a Mercedes-Benz Center if you need page 208) and Blind Spot Assist further explanation of the information page 210) are activated in the on-board contained in this Operator's Manual.
Page 194: Coupling Up A Trailer
Trailer towing Do not install hired trailer couplings or the brake systems of both the vehicle and other detachable trailer couplings on the the trailer. bumpers of your vehicle. The vehicle's wiring harness features a To reduce the risk of damage to the ball line to the brake indicator lamp.
Page 195: Decoupling A Trailer
Trailer towing Please observe the following when towing a If the automatic transmission continues to trailer: shift back and forth between two gears when driving up or downhill, restrict the To acquaint yourself with driving with a shift range. Select shift range 4, 3, 2, or 1. trailer and with the resulting changes to A lower gear and lower speed reduce the handling, you should practice cornering,...
Page 196: Power Supply
7-pin connector nor the permissible Gross Vehicle Weight supplied as part of the Mercedes-Benz- Rating (GVWR) may be exceeded. The approved trailer coupling. I n f o r ma t i o n P r o v i d e d b y :...
Page 197 Depending on your trailer, you may need an adapter to connect your trailer to the vehicle. Further information is available from any authorized Mercedes-Benz Center. I n f o r ma t i o n P r o v i d e d b y :...
Page 198 I n f o r ma t i o n P r o v i d e d b y :...
Page 199 Useful information ......198 Important safety notes ....198 Displays and operation ....198 Menus and submenus ...... 201 Display messages ......213 Warning and indicator lamps in the instrument cluster ......238 I n f o r ma t i o n P r o v i d e d b y :...
Page 200: Important Safety Notes
"At a glance" section the vehicle. Bring the vehicle to an authorized page 29). Mercedes-Benz Center to address the malfunction and warning messages. WARNING A driver's attention to the road and traffic...
Page 201: Operating The On-Board Computer
Displays and operation surface is free of ice. The road may still be icy, Multifunction display especially in wooded areas or on bridges. Changes in the outside temperature are Rejects or ends a call displayed after a short delay. Exits phone book/redial memory Makes or accepts a call Speedometer with segments Switches to the redial memory...
Page 202: Multifunction Display
Displays and operation Multifunction display Values and settings as well as display messages are shown in the multifunction display. Display area for menus or submenus Transmission position Drive program Status bar with outside temperature or speed ( page 206) For further information on displaying the transmission position, see ( page 151).
Page 203: Menu Overview
Menus and submenus Menus and submenus Menu overview The number of menus shown depends on the optional equipment in the vehicle. Function Standard display menu ( page 202) tire pressure loss warning system (Canada only) ( page 329) tire pressure monitor (USA only) ( page 331) ASSYST PLUS service interval display ( page 287)
Page 204: Odometer
Menus and submenus Function Trip computer menu ( page 210) Telephone menu ( page 211) Standard display menu the engine compartment to catch fire. You could be seriously burned. Standard display Steam from an overheated engine can cause Press the V or U button on the serious burns which can occur just by opening steering wheel to select the standard the engine hood.
Page 205: Operating
Menus and submenus Press the V or U button on the steering wheel to select the standard display. Press the & or * button to select digital speedometer or the outside temperature. Waveband Current station To select a stored station: briefly press the &...
Page 206: Airmatic/Compass Menu
Menus and submenus To select the next/previous track: Route guidance inactive briefly press the & or * button. The direction of travel appears in the To select a track from the track list multifunction display. If the name of the (rapid scrolling): press and briefly hold the street is part of the navigation system data, &...
Page 207: Settings
Menus and submenus Instrument cluster Settings menu Introduction Selecting the unit of measurement for distance This function is only available in Canada. Display unit Speedometer/ Odometer function allows you to choose whether certain displays appear in kilometers or miles. The selected unit of measurement for distance applies to: Settings menu can be used for:...
Page 208: Selecting The Language
Menus and submenus Press the W or X button to select module, see the separate operating instructions. miles as the unit of measurement for distance. Time/date In the submenu, you can set the time and date. Press the &, V or U button to select a different display.
Page 209: Exterior Lighting Delayed Switch Off
Menus and submenus Activating/deactivating the exterior Press the W or X button to select the lighting delayed switch-off Lighting submenu. Headlamp deactivation If the function is Daytime Running Press & to select activated and the light switch is in the Ã Lamps.
Page 210: Interior Lighting
Menus and submenus Before leaving the vehicle, turn the Press the & button to select SmartKey to position 0 in the ignition lock. Automatic Door Locking. Turn the SmartKey to position 2 in the Press the W or X button to switch ignition lock and back to position 0.
Page 211: Activating/Deactivating
Menus and submenus Canada only: Do not leave children unattended in the vehicle, or with access to an unlocked vehicle. This device complies with RSS-210 of Children could open the driver's door and Industry Canada. Operation is subject to unintentionally activate the easy-entry/exit the following two conditions: feature, which could result in an accident 1.
Page 212: Trip Computer Menu
Menus and submenus If you have switched the function on and you Press V or U on the steering wheel fold the exterior mirrors in using the button to select the Additional functions menu. on the door ( page 110), they will not fold Press the &...
Page 213: Calling Up The Range
Menus and submenus When 9,999 hours or 99,999 miles have been Telephone menu exceeded, the trip computer is automatically Introduction From Reset. reset ® You can establish a Bluetooth connection to Resetting values COMAND (see the separate operating instructions). Press the V or U button on the steering wheel to select the trip WARNING computer menu.
Page 214: Number From The Phone Book
Menus and submenus Press the V or U button on the steering wheel to select the Telephone menu. Press the 6 button to switch to the redial memory. Press the & or * button to select the desired name or number. Press the 6 button on the steering Press the 6 button to start dialing.
Page 215: Display Messages
WARNING All categories of messages contain important information which should be taken note of and, where a malfunction is indicated, addressed as soon as possible at an authorized Mercedes-Benz Center. Failure to repair the condition noted may cause damage not covered by the Mercedes-Benz Limited Warranty, or result in property damage or personal injury.
Page 216: Display Message
Display messages Safety systems Display messages Possible causes/consequences and M Solutions !÷ Risk of accident ® ABS (Anti-lock Braking System), ESP (Electronic Stability Unavailable See ® Program), BAS (Brake Assist), PRE-SAFE , hill start assist and Operator's Manual ® trailer stabilization are temporarily not available. In addition, the ÷, å...
Page 217 Display messages Display messages Possible causes/consequences and M Solutions !÷ Risk of accident ® ® ® ABS, ESP , BAS, PRE-SAFE , hill start assist and ESP trailer Inoperative See stabilization are not available due to a malfunction. Operator's Manual The $ (USA only)/J (Canada only), ÷, å...
Page 218: Display Message
Display messages Display messages Possible causes/consequences and M Solutions If the display message is shown while the vehicle is in motion and the ÷ warning lamp flashes, the electronic traction system is deactivated. Otherwise, the brakes on the drive wheels could overheat.
Page 219 Display messages Display messages Possible causes/consequences and M Solutions You are driving with the parking brake applied. A warning tone also (USA sounds. only) (Canada Release the parking brake only) Release Parking Brake Risk of accident (USA There is not enough brake fluid in the brake fluid reservoir. only) (Canada Additionally, the red $ (USA only)/ J (Canada only)
Page 220: Display Message
In the event a malfunction of the SRS is indicated as outlined above, the SRS may not be operational. For your safety, we strongly recommend that you contact an authorized Mercedes-Benz Center immediately to have the system checked. Otherwise the SRS may not be activated when needed in an accident, which could result in serious or fatal injury, or it might deploy unexpectedly and unnecessarily which could also result in injury.
Page 221 Display messages Display messages Possible causes/consequences and M Solutions Front Passenger The front-passenger air bag is enabled during the journey, even Airbag Enabled though: See Operator's a child, a small adult or an object weighing less than the Manual system's weight threshold is located on the front-passenger seat.
Page 222 Display messages Display messages Possible causes/consequences and M Solutions Visit a qualified specialist workshop immediately. WARNING If the 42 indicator lamp remains off even after performing the above corrective steps, do not have any children 12 years old and under and other small individuals use the front- passenger seat until the system has been repaired.
Page 223 Display messages Display messages Possible causes/consequences and M Solutions Front Passenger The front-passenger air bag is deactivated during the journey even Airbag Disabled though an adult or a person larger than a certain size is occupying the front-passenger seat. If additional forces are applied to the See Operator's seat, the system may interpret the occupant's weight as lower Manual...
Page 224: Lights
Display messages WARNING If the 42 indicator lamp remains lit with an adult occupant on the front-passenger seat even after performing the above corrective steps, do not have any passenger use the front- passenger seat until the system has been repaired. Lights Display messages about LEDs: This display message will only appear if all LEDs have failed.
Page 225: Display Message
Display messages Display messages Possible causes/consequences and M Solutions The front left-hand or front right-hand turn signal is defective. Check whether you are permitted to change the bulb yourself Turn Signal Front page 119). Left Turn Signal Front Right Visit a qualified specialist workshop. The turn signal in the left-hand or right-hand exterior mirror is defective.
Page 226: Display Message
Display messages Display messages Possible causes/consequences and M Solutions The left-hand or right-hand front fog lamp is defective. Check whether you are permitted to change the bulb yourself Front Foglamp Left page 119). Front Foglamp Right Visit a qualified specialist workshop. The left-hand or right-hand rear fog lamp is defective.
Page 227: Display Message
Display messages Display messages Possible causes/consequences and M Solutions The light sensor is defective. Visit a qualified specialist workshop. AUTO Light Inoperative USA only: Switch off the daytime running lamps in the on-board computer page 206). Switch the lights on and off using the light switch. The lights are still switched on when you leave the vehicle.
Page 228 Display messages Display messages Possible causes/consequences and M Solutions The coolant is too hot. Pull over and stop the vehicle safely and switch off the engine, Coolant Stop car, paying attention to road and traffic conditions. switch engine off Make sure that the air supply to the engine radiator is not blocked, e.g.
Page 229: Display Message
Display messages Display messages Possible causes/consequences and M Solutions The engine fan is defective. At coolant temperatures under 248 ‡ (120 †), drive to the next qualified specialist workshop. Avoid subjecting the engine to heavy loads, e.g. driving in mountainous terrain, and stop-and-go traffic. The battery is not being charged.
Page 230: Display Message
Display messages Display messages Possible causes/consequences and M Solutions The fuel level has dropped into the reserve range. Refuel at the nearest gas station. Reserve Fuel There is only a very small amount of fuel in the fuel tank. Refuel at the nearest gas station without fail. The fuel system pressure is too low.
Page 231: Driving Systems
Display messages Driving systems Display messages Possible causes/consequences and M Solutions ° The vehicle level is too low when the vehicle is stationary. Do not pull away. Vehicle Rising The vehicle level is set when the display message disappears. Wait briefly °...
Page 232: Display Message
Display messages Display messages Possible causes/consequences and M Solutions Blind Spot Assist Blind Spot Assist is temporarily inoperative if: Currently the sensors are dirty. Unavailable, See its function is impaired due to heavy rain or snow. Operator's Manual the radar sensor system is outside the operating temperature range.
Page 233: Tires
Display messages Display messages Possible causes/consequences and M Solutions DISTRONIC DISTRONIC is defective or the display has failed. Inoperative Visit a qualified specialist workshop. DISTRONIC DISTRONIC is deactivated and is temporarily inoperative if: Currently the DISTRONIC cover in the radiator grill is dirty. Unavailable See its function is impaired due to heavy rain, snow or fog.
Page 234 Display messages Do not overinflate tires. Overinflated tires can adversely affect handling and ride comfort, wear unevenly, increase stopping distance, and result in sudden deflation (blowout) because they are more likely to become punctured or damaged by road debris, potholes etc. Display messages Possible causes/consequences and M Solutions Tire Pressure...
Page 235 Display messages Display messages Possible causes/consequences and M Solutions Check Risk of accident Tire(s) The tire pressure in one or more tires has dropped significantly. The wheel position is displayed in the multifunction display. Stop the vehicle without making any sudden steering or braking maneuvers.
Page 236: Display Message
Display messages Display messages Possible causes/consequences and M Solutions Risk of accident The tire pressure in one or more tires has dropped significantly. Tire Pressure Check Tires Stop the vehicle without making any sudden steering or braking maneuvers. Pay attention to the traffic conditions as you do so. If necessary, change a wheel ( page 346).
Page 237: Display Message
Display messages Display messages Possible causes/consequences and M Solutions Drive to workshop You cannot change the transmission position due to a malfunction. without shifting If transmission position D is selected: gears. Drive to a qualified specialist workshop without shifting the transmission from position D.
Page 238: Keyless-Go
Display messages Display messages Possible causes/consequences and M Solutions ® The Bluetooth connection between your mobile phone and COMAND is not activated. Bluetooth ready ® If desired, activate the Bluetooth connection between your mobile phone and COMAND (see the separate Operator's Manual).
Page 239 Display messages Display messages Possible causes/consequences and M Solutions The KEYLESS-GO key is not in the vehicle. If the engine is switched off, you can no longer lock the vehicle Key Not Detected centrally or start the engine. (Red display message) Pull over and stop the vehicle safely as soon as possible, paying attention to road and traffic conditions.
Page 240: Warning Lamp
Warning and indicator lamps in the instrument cluster Warning and indicator lamps in the instrument cluster Seat belts Problem Possible causes/consequences and M Solutions The seat belt warning lamp reminds the driver and front passenger to fasten their seat belts. After starting the engine, the red seat Fasten your seat belt (...
Page 241: Warning Lamp
Warning and indicator lamps in the instrument cluster Problem Possible causes/consequences and M Solutions Risk of injury The red seat belt The driver or front passenger has not fastened their seat belt. In warning lamp flashes addition, you are driving faster than 15 mph (25 km/h) or you have and an intermittent briefly driven faster than 15 mph (25 km/h).
Page 242: Warning Lamp
Warning and indicator lamps in the instrument cluster Problem Possible causes/consequences and M Solutions Risk of accident The yellow ABS warning ABS (Anti-lock Brake System) is deactivated due to a malfunction. lamp is lit while the ® (Electronic Stability Program), BAS (Brake Assist), engine is running.
Page 243: Warning Lamp
Warning and indicator lamps in the instrument cluster Problem Possible causes/consequences and M Solutions Risk of accident The yellow ABS warning ® EBD is faulty. Therefore, ABS, BAS, PRE-SAFE , hill start assist and lamp is lit while the ® trailer stabilization, for example, are also not available due engine is running.
Page 244 Warning and indicator lamps in the instrument cluster Problem Possible causes/consequences and M Solutions At least one wheel is spinning and the electronic traction system ÷ is deactivated to prevent the brakes on the drive wheels from ® The yellow ESP overheating.
Page 245: Warning Lamp
In the event a malfunction of the SRS is indicated as outlined above, the SRS may not be operational. For your safety, we strongly recommend that you contact an authorized Mercedes-Benz Center immediately to have the system checked. Otherwise the SRS may not be activated when needed in an accident, which could result in serious or fatal injury, or it might deploy unexpectedly and unnecessarily which could also result in injury.
Page 246: Check Engine Warning Lamp
Warning and indicator lamps in the instrument cluster Engine Problem Possible causes/consequences and M Solutions ! (USA only) There may be a malfunction, for example: ; (Canada only) in the engine management The yellow Check in the fuel injection system Engine warning lamp in the exhaust system lights up while the...
Page 247: Warning Lamp
Warning and indicator lamps in the instrument cluster Driving systems Problem Possible causes/consequences and M Solutions · Risk of accident The red distance The warning is issued if you approach a stationary vehicle or a warning lamp lights up vehicle driving ahead of you at too high a speed. while the vehicle is in Be prepared to brake immediately.
Page 248 Warning and indicator lamps in the instrument cluster indicated on the Tire and Loading Information placard or, if available, the tire inflation pressure label, you should determine the proper tire inflation pressure for those tires. As an added safety feature, your vehicle has been equipped with a tire pressure monitoring system (TPMS) that illuminates a low tire pressure warning lamp when one or more of your tires are significantly underinflated.
Page 249 Useful information ......248 Loading guidelines ......248 Stowage areas ........248 Features ..........262 I n f o r ma t i o n P r o v i d e d b y :...
Page 250: Loading Guidelines
Stowage areas never be exceeded. The gross load limit and Useful information the GVWR are specified on the vehicle identification plate on the B-pillar of the This Operator's Manual describes all driver's door ( page 333). models and all standard and optional The load must also be distributed so that the equipment of your vehicle available at the weight on each axle never exceeds the gross...
Page 251: Glove Box
Stowage areas Do not pile luggage or cargo higher than the seat backrests. If so equipped, always use the cargo net when transporting cargo. The cargo net cannot secure hard or heavy objects. Parcel nets cannot secure hard or heavy objects.
Page 252: Rd Row Of Seats
Stowage areas Stowage compartments under the Stowage compartments in the rear armrest Stowage compartments above the center The stowage compartment and the stowage air vents, 2nd row of seats tray can be opened separately. Depending on the equipment in the vehicle, a In vehicles with the Rear Seat control panel may be installed instead of the Entertainment System, a DVD player is...
Page 253: Nd Row Of Seats
Liquids spilled on vehicle goods in the event of an accident. equipment may cause damage that is not covered by the Mercedes-Benz Limited Storage bags are located in the rear Warranty. compartment on the driver's and front- passenger seat backrests.
Page 254 Stowage areas The stowage compartment and cup holder will only be illuminated if the center console is installed in the rear position (position 0). Pull release handle A. The front part of center console : detaches from supporting base ?. Lift center console : upwards in the direction of arrow B and hold center console : in this position.
Page 255: Important Safety Notes
Stowage areas Cargo compartment enlargement Important safety notes WARNING When expanding the cargo volume, always fully fold the corresponding seats and, if so equipped, always use the cargo net when transporting cargo. Unless you are transporting cargo, the seat backrests must remain properly locked in the upright position.
Page 256: Seats
Stowage areas third-row seat occupants to use folded second-row seats as a footrest while driving. Third-row seat occupants must, like all vehicle occupants, keep both feet on the floor in front of their seat. Otherwise, occupants could slide under their seat belt in a collision. If occupants slide under the seat belt, it would apply force at the abdomen or neck.
Page 257 Stowage areas Folding down the outer seats in the 2nd row of seats If you want to fold the outer seats down in the 2nd row of seats, the front seats must not be in the rearmost position. Otherwise, you could damage the front seats and outer seats in the 2nd row.
Page 258 Stowage areas Fold backrest = slowly forwards. Make absolutely sure that you reset the seats to the driving position in the specified Seat cushion C is released and moves order: automatically to a vertical position. Loop D can be used to pull the backrests reset the seats in the 3rd row of seats of the 3rd row of seats upright when the reset the outer seats in the 2nd row of...
Page 259: Cargo Tie Down Rings
Stowage areas Pull release lever ; upwards beyond the When the seat is locked, lock status indicator : is folded in and indicator pressure point to the stop and fold backrest : upwards by about 45 ˚. area ; is barely visible. Insert the head restraint ( page 100).
Page 260: Securing Hooks
Stowage areas Footwell of the second row of seats Securing hooks Only use the mounting hooks to secure items of luggage up to maximum of 9 lbs (4 kg) in weight. There is one cargo tie-down ring : in the footwell behind the driver’s seat and one in the footwell behind the front-passenger seat.
Page 261: Compartment Cover
Stowage areas Extending and retracting the cargo To install: extend cargo compartment compartment cover cover ; if you wish to install cargo compartment cover ; behind the second row of seats ( page 260). You must not install the extensions if you wish to install the cargo compartment cover behind the 3rd row of seats.
Page 262 Stowage areas Press button : and insert the right-hand side section into the recess of the side trim. Ensure that the cargo compartment cover has engaged properly. Extending the cargo compartment cover The cargo compartment cover is equipped with two extensions that are fastened securely to the cargo compartment cover Slide guide rail : into guide ;...
Page 263 Stowage areas Insert guide rod ; into retainer : in the direction of the arrow. Slide guide rod ; forwards into retainer : in the direction of the arrow. Tightening the cargo net The brackets behind B-pillar : are required for the complete cargo compartment enlargement ( page 253).
Page 264: Important Safety Notes
Position the load on the roof carrier in such spilled on vehicle equipment may cause a way that the vehicle will not sustain damage not covered by the Mercedes-Benz damage even when it is in motion. Limited Warranty. I n f o r ma t i o n P r o v i d e d b y :...
Page 265: Second Row Of Seats
Features The bottle opener is located under the card When not in use, keep the cup holder closed. holder. It can be use to open both screw An open cup holder may cause injury to you caps = and crown caps ?. or others when contacted during braking, vehicle maneuvers, or in an accident.
Page 266: Third Row Of Seats
Features Cup holder in front of the armrest of the second row of seats Pull cover : down in the direction of the arrow as far as it will go. Cup holders Cup holder in the third row of seats The cup holders are located in the side trim on the left and right-hand sides.
Page 267: Ashtray
Features Sunblinds on the rear side windows The roller sunblinds for the rear side windows are only available in the USA. Mirror light Bracket Vanity mirror Retaining clip, e.g. for a car park ticket To extend: pull the roller sunblind out by Mirror cover tab ;...
Page 268: Cigarette Lighter
Features To open: open cover : ( page 249). To remove the insert: press insert : in the direction of the arrow. To remove the insert: reach into the Pull insert : upwards and remove it. recess on the rear of insert =. To re-install the insert: replace insert : Lift insert = up ;...
Page 269: Points To Observe Before Use
Features Turn the SmartKey to position 2 in the If children open a door, they could injure other ignition lock. persons or get out of the vehicle and injure themselves or be injured by following traffic. To open: open cover : ( page 249).
Page 270: Nd Row Of Seats
Features Socket in the front-passenger footwell exceeded. Otherwise, you will overload the fuse. Lift up the cover of socket :. Fold up the cover on socket :. Socket in the front-compartment center Socket in the cargo compartment console The socket is not suitable for operating If accessories are connected, make sure the tire inflation compressor.
Page 271: Operation
115 V power socket : will not supply it with power. If indicator lamp ; still does not light up, contact a specialist workshop, e.g. an authorized Mercedes-Benz Center. mbrace 115 V socket : provides an alternating Important safety notes voltage of 115 V, so that small electronic devices can be connected.
Page 272: Emergency Call
MB Info call Have the system checked at the nearest To adjust the volume during an mbrace call, authorized Mercedes-Benz Center or contact proceed as follows: the following service hotlines: Press the W or X button on the USA: Response Center under multifunction steering wheel.
Page 273 If the indicator lamp in the SOS button is If you have questions about the activation, flashing continuously and no voice contact one of the following telephone connection to the Mercedes-Benz Customer assistance services: Assistance Center was established, then the mbrace system could not initiate an USA: Mercedes-Benz Customer emergency call (e.g.
Page 274: Mb Info Call Button
Press and hold Roadside Assistance This may be because the corresponding button : for more than two seconds. mobile phone network is not available. This initiates a call to the Mercedes-Benz Call Failed message appears in the Customer Assistance Center. The indicator multifunction display.
Page 275: Call Priority
Press and hold MB Info call button : for This may be because the corresponding more than two seconds. mobile phone network is not available. This initiates a call to the Mercedes-Benz Call Failed message appears in the Customer Assistance Center. The indicator multifunction display.
Page 276: Search & Send
You will be asked for your password. available if the corresponding mobile Return to your vehicle at the time agreed phone network is available and data upon with the Mercedes-Benz Customer transfer is possible. Assistance Center. Route Assistance Pull the tailgate handle for at least 20...
Page 277: Notes
Center together with your PIN. out of the way of the device to prevent The Mercedes-Benz Customer Assistance potential harm or damage. When Center then attempts to locate the mbrace programming a garage door opener, the door system.
Page 278 Features 1. This device must not cause harmful interference, and 2. this device must withstand any interference received, including interference that may cause undesired operation. Any unauthorized modification to this device could void the user's authority to operate the equipment. Canada only: Integrated garage door opener on the rear-view This device complies with RSS-210 of...
Page 279 Features position for at least 25 seconds before integrated garage door opener repeatedly trying another position. in succession until the door opens. The rolling code synchronization is then Press and hold transmitter button B on complete. garage door remote control A until indicator lamp : lights up green.
Page 280: Compass Calling Up
Features found on the reverse side of the remote Turn the SmartKey to position 2 in the control). ignition lock. The integrated garage door opener is Press transmitter button ;, = or ? in the compatible with devices that can be overhead control panel that you have operated with units in a frequency range of programmed to operate the garage door.
Page 281: Floormat
Features Infrared reflective windshield The infrared reflecting glass prevents the vehicle interior from becoming too hot. It also blocks radio waves up into the gigahertz range. If your vehicle does not have an AIRMATIC package, the multifunction display only shows the compass. Floormat on the driver's side WARNING Whenever you are using a floormat, make sure...
Page 282 I n f o r ma t i o n P r o v i d e d b y :...
Page 283 Useful information ......282 Engine compartment ......282 Maintenance ........287 Care ............ 287 I n f o r ma t i o n P r o v i d e d b y :...
Page 284: Opening
Engine compartment Useful information WARNING To help prevent personal injury, stay clear of This Operator's Manual describes all moving parts when the hood is open and the models and all standard and optional engine is running. equipment of your vehicle available at the The radiator fan may continue to run for time of publication of the Operator's approximately 30 seconds or may even...
Page 285: Checking The Oil Level
Engine compartment otherwise come loose while the vehicle is in motion and injure you and/or others. Lower the hood and let it fall from a height of approximately 8 inches (20 cm). Check that the hood has engaged properly. If the hood can be raised slightly, it is not properly engaged.
Page 286 A list of the engine oils and oil filters tested and approved in accordance with the Mercedes-Benz Specifications for Service Products can be called up by visiting http:// www.mbusa.com (USA only). More...
Page 287: Windshield Washer System
If necessary, add coolant that has been if the coolant temperature display indicates tested and approved by Mercedes-Benz. that the coolant is overheated. Replace cap : and turn it clockwise as far do not remove the pressure cap on the as it will go.
Page 288: Brake Fluid Level
At temperatures below freezing: fill the products can be obtained at any authorized washer fluid reservoir with a mix of water Mercedes-Benz Center or on the Internet at and windshield washer concentrate (e.g. http://www.mbusa.com (USA only). MB WinterFit). Adapt the mixing ratio to the outside temperature.
Page 289: Notes
(see separate Service Booklet). Switch on the ignition. You can obtain further information from an Press V or U to select the standard authorized Mercedes-Benz Center or at display menu on the steering wheel http://www.mbusa.com (USA only). page 202).
Page 290: Car Wash
Care Use care products and cleaning agents Exterior care recommended and approved by Mercedes- Automatic car wash Benz. WARNING WARNING Braking efficiency is reduced after washing Many cleaning products can be hazardous. the vehicle. This could cause an accident. For Some are poisonous, others are flammable.
Page 291: Power Washer
This could damage wheel bolts and brake components. Use a gentle cleaning agent, e.g. a Mercedes-Benz approved car shampoo. Do not park the vehicle for an extended Wash down the vehicle with a gentle water period straight after cleaning it, particularly jet.
Page 292: Matte Finish
Mercedes- approved Mercedes-Benz care products. Benz should be used. Do not use these care products in the sun or on the hood while the hood is hot.
Page 293: Exterior Lights
Mercedes-Benz car shampoo or Do not touch the insides of the windows cleaning cloths. with hard objects, e.g. an ice scraper or ring.
Page 294: Display
Clean the exhaust tail pipes with a chrome films care product tested and approved by Mercedes-Benz. scented oil bottles or similar items You can otherwise damage the plastic. Do not allow cosmetics, insect repellent or sunscreen to come into contact with the plastic trim.
Page 295: Gear Or Selector Lever
It may otherwise become rough Wait until the surface is dry again. and cracked. Only use leather care agents that have been tested and approved by Mercedes-Benz. You can Cleaning the steering wheel and gear or obtain these from a qualified specialist selector lever workshop, e.g.
Page 296: Carpets
Carpets: use carpet and textile cleaners that have been approved and recommended by Mercedes-Benz. I n f o r ma t i o n P r o v i d e d b y :...
Page 297 Useful information ......296 Where will I find...? ......296 Flat tire ..........299 Battery ..........310 Jump-starting ........313 Towing and tow-starting ....315 Fuses ..........317 I n f o r ma t i o n P r o v i d e d b y :...
Page 298: Cargo Compartment Floor
( page 24). approved for your vehicle, visit a qualified specialist workshop, e.g. an authorized Mercedes-Benz Center. Where will I find...? Folding the cargo compartment floor up First-aid kit The first-aid kit can be found under the trunk floor in the vehicle tool kit stowage tray.
Page 299 Where will I find...? Lug wrench Attach hook = to upper seal ? in the Tire inflation compressor cargo compartment. Instructions on the installation position of the vehicle tool kit holder Vehicles with a TIREFIT kit Fuse allocation chart Lift the trunk floor up ( page 296).
Page 300: Stowing
Stowing a used collapsible spare wheel Take the following steps to stow a used collapsible spare wheel. It will otherwise not fit in the spare wheel well. Mercedes-Benz recommends that you have this work carried Lay collapsible spare wheel ; in the out at a qualified specialist workshop, e.g.
Page 301: Preparing The Vehicle
This A TIREFIT kit can be obtained from an ensures that there is sufficient power to authorized Mercedes-Benz Center. start the engine. Vehicles with the AIRMATIC package: make sure that highway level is selected page 180).
Page 302 Flat tire stowage well underneath the trunk floor Your vehicle is provided with one of two page 296). different tire inflation compressors: Version 1: the hose with the pressure gauge and the cable are behind a flap. Version 2: the pressure gauge is in the tire inflation compressor.
Page 303 Flat tire If a pressure of 180 kPa (1.8 bar/26 psi) has been achieved after five minutes, see page 302). If a pressure of 180 kPa (1.8 bar/26 psi) has not been achieved after five minutes, see page 302). TIREFIT kit version 2 Make sure pressure release screw F on pressure gauge G is fully closed.
Page 304 Flat tire Very slowly drive forwards or reverse None of the other sockets or cigarette approximately 30 ft (10 m). lighters are designed for operating the tire inflation compressor. Pump up the tire again. Turn the SmartKey to position WARNING page 145) in the ignition lock.
Page 305: Changing A Wheel
130 kPa (1.3 bar/26 psi) do not continue to drive the vehicle. Park your vehicle safely away from the roadway and contact the nearest authorized Mercedes-Benz Center or Roadside TIREFIT kit version 2 Assistance. Pressure release button Have the damaged tire replaced.
Page 306: Wheel Chock
If your vehicle is equipped with a wheel chock, and tools to carry out the work required. it can be found in the vehicle tool kit Mercedes-Benz recommends that you use an page 296). authorized Mercedes-Benz Center for this The folding wheel chock is an additional purpose.
Page 307: Raising The Vehicle
WARNING When jacking up the vehicle, only use the jack which has been specifically approved by Mercedes-Benz for your vehicle. The jack is designed exclusively for jacking up the vehicle at the jacking points built into both sides of the vehicle. The jack saddle must be Using lug wrench :, loosen the bolts on placed centrally under the jacking point.
Page 308: Removing A Wheel
Flat tire and in front of the wheel housings of the rear wheels (arrows). Make sure that the base of the jack is positioned directly under the jacking point. Turn ratchet wrench ? until jack = sits WARNING completely on jacking point ; and the The jack is designed exclusively for jacking up base of the jack lies evenly on the ground.
Page 309 This could cause an accident. Make sure to use the correct wheel bolts. WARNING Slide the emergency spare wheel onto the Only use genuine Mercedes-Benz wheel bolts. alignment bolt and push it on. Other wheel bolts may come loose. Tighten the wheel bolts until they are Do not tighten the wheel bolts when the finger-tight.
Page 310 Flat tire Make sure that the SmartKey is in position page 145) in the ignition lock. Press on/off switch ; on the tire inflation compressor to I. The tire inflation compressor is switched on. The tire is inflated. Gauge ? shows the tire pressure.
Page 311: Lowering
Flat tire Lowering the vehicle tray from the emergency spare wheel well and store it securely in the cargo WARNING compartment. Pump up the collapsible spare wheel before For further information on stowing the lowering the vehicle. You could otherwise collapsible spare wheel, see ( page 298).
Page 312: Important Safety Notes
The defective tire Comply with safety precautions and take must be replaced in every case. protective measures when handling batteries. Mercedes-Benz recommends that you use an Risk of explosion authorized Mercedes-Benz Center for this purpose. In particular, work relevant to safety...
Page 313 In this case have the battery WARNING checked at a qualified specialist workshop, Failure to follow these instructions can result such as an authorized Mercedes-Benz in severe injury or death. Center. You can also charge the battery Never lean over batteries while connecting.
Page 314: Charging The Battery
Never charge a battery still installed in the instructions before charging the battery. vehicle unless a battery charger unit approved by Mercedes-Benz is being used. Gases may escape during charging and cause explosions that may result in paint damage, corrosion or personal injury.
Page 315: Jump Starting
This charges the empty battery a little. Jumper cables and further information about jump-starting can be obtained from any authorized Mercedes-Benz Center, for example. Make sure that the two vehicles do not touch.
Page 316 Jump-starting Switch off all electrical consumers (e.g. radio, blower, etc.). Open the hood ( page 282). Position number C identifies the charged battery of the other vehicle or an equivalent jump- starting device. Lift up cover : of positive terminal ; in the direction of the arrow. Connect positive terminal ;...
Page 317: Installing The Towing Eye
Towing and tow-starting When towing vehicles with KEYLESS-GO, Towing and tow-starting use the key instead of the Start/Stop Important safety notes button. Otherwise, the automatic transmission may shift to position P when WARNING the driver's or front-passenger door are If you tow the vehicle, you must use a rigid opened, which could lead to damage to the towing bar if: transmission.
Page 318: Removing The Towing Eye
Towing and tow-starting The automatic transmission automatically shifts to position P when you open the driver's or front-passenger door or when you remove the SmartKey from the ignition lock. In order to ensure that the automatic transmission stays in position N when towing the vehicle, you must observe the following points: Make sure that the vehicle is stationary and the SmartKey in the ignition lock is in...
Page 319: Fuses Allocation Chart
WARNING If the vehicle has transmission damage or Only use fuses approved by Mercedes-Benz damage to the front or rear axle, have it with the specified amperage for the system in transported on a transporter or trailer.
Page 320: Dashboard Fuse Box
Fuses The fuses are located in various fuse boxes: fuse box on the front-passenger side of the dashboard fuse box in the engine compartment on the right-hand side of the vehicle, when viewed in the direction of travel fuse box in the stowage well under the trunk floor The fuse allocation chart is located in the vehicle tool kit (...
Page 321 Fuses To open: open the trunk floor and secure it ( page 296). Fold cover : to the left in the direction of the arrow. Engine emergency off If the engine cannot be switched off as described, observe the following procedure: Take the fuse allocation chart out of the vehicle tool kit ( page 296).
Page 322 I n f o r ma t i o n P r o v i d e d b y :...
Page 323: Wheels And Tires
Useful information ......322 Important safety notes ....322 Operation ........... 322 Winter operation ....... 324 Tire pressure ........325 Loading the vehicle ......333 Maximum load rating ....... 337 Uniform Tire Quality Grading Standards .......... 338 Tire labeling ........339 Definition of terms for tires and loading ..........
Page 324: Important Safety Notes
When replacing rims, only use genuine elevations, try to do so slowly and at an Mercedes-Benz wheel bolts specified for the obtuse angle. Otherwise, the tires, particular rim type. Failure to do so can result...
Page 325: Tire Tread
(such as tire pressure monitoring systems) other than the standard valve cap or other valve caps approved by Mercedes-Benz for your vehicle. Regularly check the pressure of all the tires including the emergency spare wheel or the...
Page 326 M+S marking. pressure monitoring system and only on Only winter tires bearing the i snowflake wheels specifically tested by Mercedes-Benz. symbol in addition to the M+S marking Vehicles equipped with MOExtended tires provide the best possible grip in wintry road are not equipped with a TIREFIT kit at the conditions.
Page 327: Recommended
The hubcaps may vehicle by Mercedes-Benz, or are of a otherwise be damaged. corresponding standard of quality. You may wish to deactivate Vehicles with the Adaptive Damping ®...
Page 328 Mercedes-Benz is installed on the tire valve. You will find recommended tire pressure specifications : for cold tires and for a fully...
Page 329: Notes
If a tire size precedes a tire pressure, the tire specialist workshop, e.g. an authorized pressure information following is only valid Mercedes-Benz Center. for that tire size. The load conditions "partially laden" and "fully laden" are defined in the Driving comfort can be impaired if the tire...
Page 330: Maximum
Tire pressure Overinflated tires can: adversely affect handling wear excessively and/or unevenly be more likely to become damaged adversely affect ride comfort increase stopping distance Maximum tire pressure WARNING For trailer towing, adjust the tire pressure Never exceed the maximum tire inflation of the rear tires to the maximum tire pressure.
Page 331: Pressure Loss Warning
Tire pressure check the tire pressure again using the tire Checking the tire pressures pressure gauge. Important safety notes Screw the valve cap onto the valve. Repeat these steps for the other tires. WARNING Follow recommended tire inflation pressures. Do not underinflate tires. Underinflated tires Tire pressure loss warning system wear excessively and/or unevenly, adversely (Canada only)
Page 332: Warning System
Tire pressure pressure table on the inside of the fuel filler WARNING flap to ensure the tire pressure in all four The tire pressure loss warning system does tires is set correctly for the current not provide a warning for wrongly selected tire operating conditions.
Page 333 Tire pressure If you wish to cancel the restart: you should determine the proper tire pressure for those tires. Press the X button. As an added safety feature, your vehicle has been equipped with a tire pressure monitoring Restart Run Flat Wait until the system (TPMS) that illuminates a low tire Indicator?
Page 334: Tire Pressure Monitor
Tire pressure Checking tire pressure electronically If the tire pressure monitor is malfunctioning, it may take more than Make sure that the SmartKey is in position 10 minutes for the tire pressure warning page 145) in the ignition lock. lamp to inform you of the malfunction by Press and hold the V or U button on flashing for 60 seconds and then remaining the multifunction steering wheel until the...
Page 335: Restarting
Loading the vehicle Check the tire pressure on all four wheels standard display appears in the and correct it if necessary. multifunction display ( page 202). Press and hold the & or * button If the wheel positions on the vehicle are until the tire pressure of each wheel or the interchanged, the tire pressures may be Tire pressure displayed after...
Page 336 Loading the vehicle Two instruction labels on your vehicle show Maximum permissible gross vehicle the maximum possible load. weight rating (1) The Tire and Loading Information placard The specifications shown on the Tire and on the B-pillar on the driver's side. The Loading Information placard in the Tire and Loading Information placard illustration are examples.
Page 337 Loading the vehicle Step 5: Determine the combined weight of luggage and cargo being loaded on the vehicle. That weight may not safely exceed the available cargo and luggage load capacity calculated in step 4. Step 6 (if applicable): If your vehicle will be towing a trailer, load from your trailer will be transferred to your vehicle.
Page 338 Loading the vehicle Example: step 1 to 3 The following table shows examples on how to calculate total and cargo load capacities with varying seating configurations and number and size of occupants. The following examples use a load limit of 1500 lbs. This is for illustration purposes only. Make sure you are using the actual load limit for your vehicle stated on the vehicle’s Tire and Loading Information placard page 334).
Page 339 Maximum load rating Example 1 Example 2 Example 3 Step 3 Permissible cargo 1500 lbs 1500 lbs 1500 lbs and trailer load/ (680 kg) - (680 kg) - (680 kg) - noseweight 750 lbs (340 kg) 540 lbs (245 kg) 150 lbs (68 kg) = (maximum gross = 750 lbs...
Page 340: Traction
Uniform Tire Quality Grading Standards Maximum tire load : is the maximum All passenger car tires must conform to the statutory safety requirements in addition to permitted weight for which the tire is these grades. approved. Further information on tire loads page 339).
Page 341: Labeling (Overview)
Tire labeling conditions when temperatures are around Tire labeling overview the freezing point. Mercedes-Benz recommends a minimum tire The following markings are on the tire in tread depth of in (4 mm) for all four winter addition to the tire name (sales designation)
Page 342 Tire labeling ratio is calculated by dividing the tire width by Tire size designation, load-bearing the tire height. capacity and speed index Tire code: tire code = specifies the tire type. "R" represents radial tires. "D" represents diagonal tires, "B" represents diagonal radial tires.
Page 343 Tire labeling For further information on the load bearing The service specifications consist of load index, see Load index ( page 342). bearing index A and speed index B. Speed index: speed index B specifies the If the size description of your tire includes approved maximum speed of the tire.
Page 344: Load Index
347), e.g. if you buy new tires. Further information about reading tire data can be obtained from any qualified specialist workshop, e.g. an authorized Mercedes-Benz Center. The TIN is a unique identification number. The TIN enables the tire manufacturers to inform...
Page 345: Bar (Definition)
Definition of terms for tires and loading the week of manufacture, starting with "01" DOT (Department of Transportation) for the first calendar week. Positions three DOT marked tires fulfill the requirements of and four represent the year of manufacture. the United States Department of For example, a tire that is marked with Transportation.
Page 346 Definition of terms for tires and loading identification plate on the B-pillar on the driver's side. This is the part of the wheel on which the tire is mounted. Maximum loaded vehicle weight The maximum weight is the sum of the curb GAWR (Gross Axle Weight Rating) weight of the vehicle, the weight of the The GAWR is the maximum permissible axle...
Page 347 Definition of terms for tires and loading Maximum load on one tire Sidewall Maximum load on one tire. This is calculated The part of the tire between the tread and the by dividing the maximum axle load of one axle bead.
Page 348: Direction Of Rotation
110 lb-ft (150 Nm). Observe the time restriction on use as well as Only use genuine Mercedes-Benz wheel bolts the speed limit specified on the spare wheel/ specified for your vehicle's rims. emergency spare wheel.
Page 349: Tires/Wheels
Wheel and tire combinations Mercedes-Benz accepts no liability for Storing wheels damage resulting from the use of tires, Store wheels that are not being used in a cool, wheels or accessories other than those dry and preferably dark place. Protect the tested and approved.
Page 350 The tires and wheel rims, as well as further information, can be obtained at a qualified specialist workshop, e.g. at an authorized Mercedes-Benz Center. Overview of abbreviations used in the following tire tables: BA: both axles...
Page 351 Wheel and tire combinations Tires All-weather tires Alloy wheels V1 V2 8.0 J x 19 H2 255/50 R19 107 H XL M+S Wheel offset: 2.64 in (67 mm) 255/50 R19 107 H XL 8.0 J x 19 H2 40, 41 M+SMOExtended Wheel offset: 2.64 in (67 mm) 255/50 R19 107 H XL M+S...
Page 352 I n f o r ma t i o n P r o v i d e d b y :...
Page 353 Useful information ......352 Genuine Mercedes-Benz parts ..352 Warranty ..........352 Identification plates ......353 Service products and capacities ..354 Vehicle data ........360 I n f o r ma t i o n P r o v i d e d b y :...
Page 354: Genuine Mercedes-Benz Parts
The Service and Warranty Information For this reason, Mercedes-Benz recommends booklet contains detailed information about that you use genuine Mercedes-Benz parts or the warranties covering your vehicle. parts of equal quality. Only use tires, wheels I n f o r ma t i o n P r o v i d e d b y :...
Page 355: Paint Code Number
Paint code Control Systems Warranty State Warranty Enforcement Laws (Lemon Laws) Replacement parts and accessories are covered by the Mercedes-Benz Parts and Accessories warranties. You can obtain information about this from any authorized Mercedes-Benz Center. Should you lose your Service and...
Page 356: Engine Number
Mercedes-Benz. Information on tested and approved products Slide right-hand seat : of the second row can be obtained at a Mercedes-Benz Center to its rearmost position. or on the Internet at http:// Fold floor covering = upwards.
Page 357: Capacities
Service products and capacities Capacities Vehicle model Capacity Fuel, coolant, lubricants etc. Engine oil and R 350 BlueTEC 9.0 US qt (8.5 l) Approved engine filter oils R 350 7.9 US qt (7.5 l) Cooling system All models Approx. 10.0 US qt (9.5 l) MB 326.0 corrosion inhibitor/antifreeze agent Tank capacity...
Page 358: Important Safety Notes
Service products and capacities Fuel requirements Fuel Important safety notes Gasoline engines Use only premium-grade unleaded gasoline. WARNING The octane number should be at least 91. Gasoline and diesel fuels are highly flammable Details can be found on the gas pump. The and poisonous.
Page 359: Additives
Observe the biodiesel (FAME [fatty acid methyl ester]) instructions for use on the product label. Mercedes-Benz USA approves the use of B5 Do not mix other fuel additives with fuel. This (ULSD with a maximum of up to five percent...
Page 360: Additives
When opening the filler cap of the DEF tank The engine oils are matched to the ammonia gas vapors may escape. Refill DEF performance of Mercedes-Benz engines and in a well ventilated area only. Ammonia gas service intervals. You should therefore only...
Page 361: Notes
Otherwise, the engine could be damaged. Further information on coolants and on The air-conditioning system is filled with filling can be found in the Mercedes-Benz R134a refrigerant and a special PAG Specifications for Service Products, MB lubricant. Approval 310.1, e.g. on the Internet at Never use refrigerant R 12 (CFC) or http://bevo.mercedes-benz.com.
Page 362: R 350 Bluetec
Information on other products with the same Only SummerFit and WinterFit can be specifications that are approved by mixed. Otherwise, the jets could become Mercedes-Benz can be obtained at an blocked. authorized Mercedes-Benz Center or on the Internet at http://bevo.mercedes-benz.com.
Page 363 (100 kg) Vehicle data, R 350 The data stated here refers specifically to a vehicle with standard equipment. Consult an authorized Mercedes-Benz Center for the data for all vehicle variants and trim levels. Vehicle dimensions, R 350 Vehicle length 203.3 in (5163 mm) Vehicle width 86.0 in (2183 mm)
Page 364 I n f o r ma t i o n P r o v i d e d b y :...
Page 365 I n f o r ma t i o n P r o v i d e d b y :...
Page 366 I n f o r ma t i o n P r o v i d e d b y :...
Page 367 Publication details Internet Further information about Mercedes-Benz vehicles and about Daimler AG can be found on the following websites: http://www.mbusa.com (USA only) http://www.mercedes-benz.ca (Canada only) Editorial office Not to be reprinted, translated or otherwise reproduced, in whole or in part, without the written permission of Daimler AG.
Page 368 É2515845582.ËÍ 2515845582 Order no. 6515 1846 13 Part no. 251 584 55 82 Edition A 2012 I n f o r ma t i o n P r o v i d e d b y :...

This manual is also suitable for:

R 350 2012

Mercedes-Benz R 350 BlueTEC 2012 Operator's Manual

Quick Links

Related Manuals for Mercedes-Benz R 350 BlueTEC 2012

Summary of Contents for Mercedes-Benz R 350 BlueTEC 2012
