Summary of Contents for Trotec HYSTREAM 2100

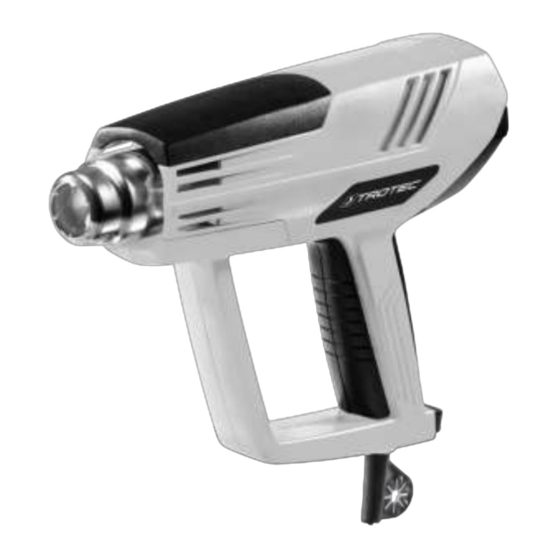

- Page 1 HYSTREAM 2100 OPERATING MANUAL HEAT GUN...
-
Page 2: Table Of Contents
This symbol indicates dangers to the life and health of persons due to hot surface. HyStream 2100 Warning This signal word indicates a hazard with an average risk level which, if not avoided, can result in serious https://hub.trotec.com/?id=40206 injury or death. Operating manual – heat gun HyStream 2100... -
Page 3: Safety
No liability is accepted for damages resulting from improper use. In such a case, any warranty claims will be voided also. Operating manual – heat gun HyStream 2100... - Page 4 Use of an RCD reduces the risk of jewellery. Keep your hair, clothing and gloves away electric shock. from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. Operating manual – heat gun HyStream 2100...
- Page 5 The power tool, especially the air outlet, is person using only identical replacement parts. This will still very hot and can thus cause damage. ensure that the safety of the power tool is maintained. Operating manual – heat gun HyStream 2100...
- Page 6 • ONLY with barbecue lighter nozzle: to light a barbecue Hold onto the mains plug while pulling the power cable out of the mains socket. We recommend using the power tool with original Trotec Warning of electrical voltage accessories. There is a risk of a short-circuit due to liquids...
-
Page 7: Information About The Device
The fan keeps running. Allow the device to cool down and switch it off. Investigate the cause of overheating. Should the problem persist, please contact the customer service. Operating manual – heat gun HyStream 2100... -
Page 8: Control Panel
Control panel Designation display with colour change technology temperature indication ventilation indication fan speed +/- button (5 stages) temperature +/- button (°C in increments of 10 °C) indication of the warm-up phase Operating manual – heat gun HyStream 2100... -
Page 9: Transport And Storage
When the device is not being used, observe the following storage conditions: • dry and protected from frost and heat, • ambient temperature below 40 °C, • protected from dust and direct sunlight. Operating manual – heat gun HyStream 2100... -
Page 10: Start-Up
Burn hazard when touching the insertion tool. Do not touch the insertion tool bare-handed! Wear protective gloves! 1. Affix the attachment nozzle best suited for the task at hand to the air outlet. Operating manual – heat gun HyStream 2100... -
Page 11: Operation
• For restoration work soften old coats of paint, but do not • Weeds can be scorched also by aiming the hot air directly scorch the wooden surface. at it. Application example for the glass protection / diversion nozzle: Application example for the wide-angle nozzle: Operating manual – heat gun HyStream 2100... - Page 12 • For the deformation of plastic pipes. The charcoal will be hot and ready for use within a few Application example for the reducing nozzle: minutes. No further aids are required. Application example for the barbecue lighter nozzle: Operating manual – heat gun HyStream 2100...
- Page 13 The target temperature is only displayed for a brief period. Then the current temperature indication returns to the display (11). This value will be increased or reduced to the target temperature. Upon reaching the target temperature, it will be indicated on the display (11). Operating manual – heat gun HyStream 2100...
-
Page 14: Errors And Faults
Troubleshooting tasks which require the housing to be opened must only be carried out by a specialist dealer or by Trotec. Slight smoke or odour are emitted during first use: • This is not a fault. These phenomena disappear after a brief runtime. -
Page 15: Maintenance
• Dry the device and attachment nozzles with a soft, lint-free cloth. • Keep the ventilation openings free from dust deposits to prevent overheating of the motor. Operating manual – heat gun HyStream 2100... - Page 16 Trotec GmbH & Co. KG Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
