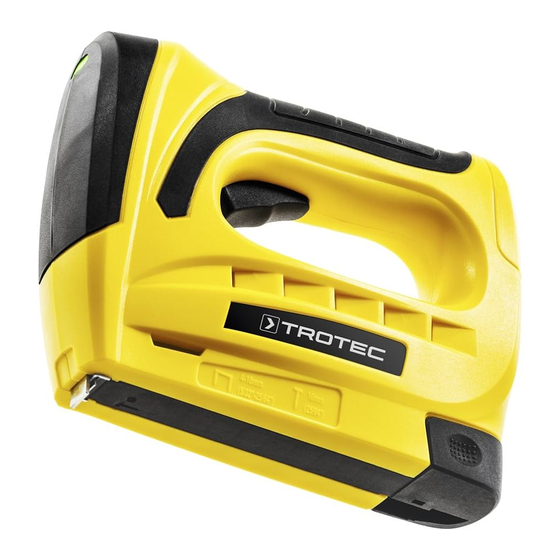

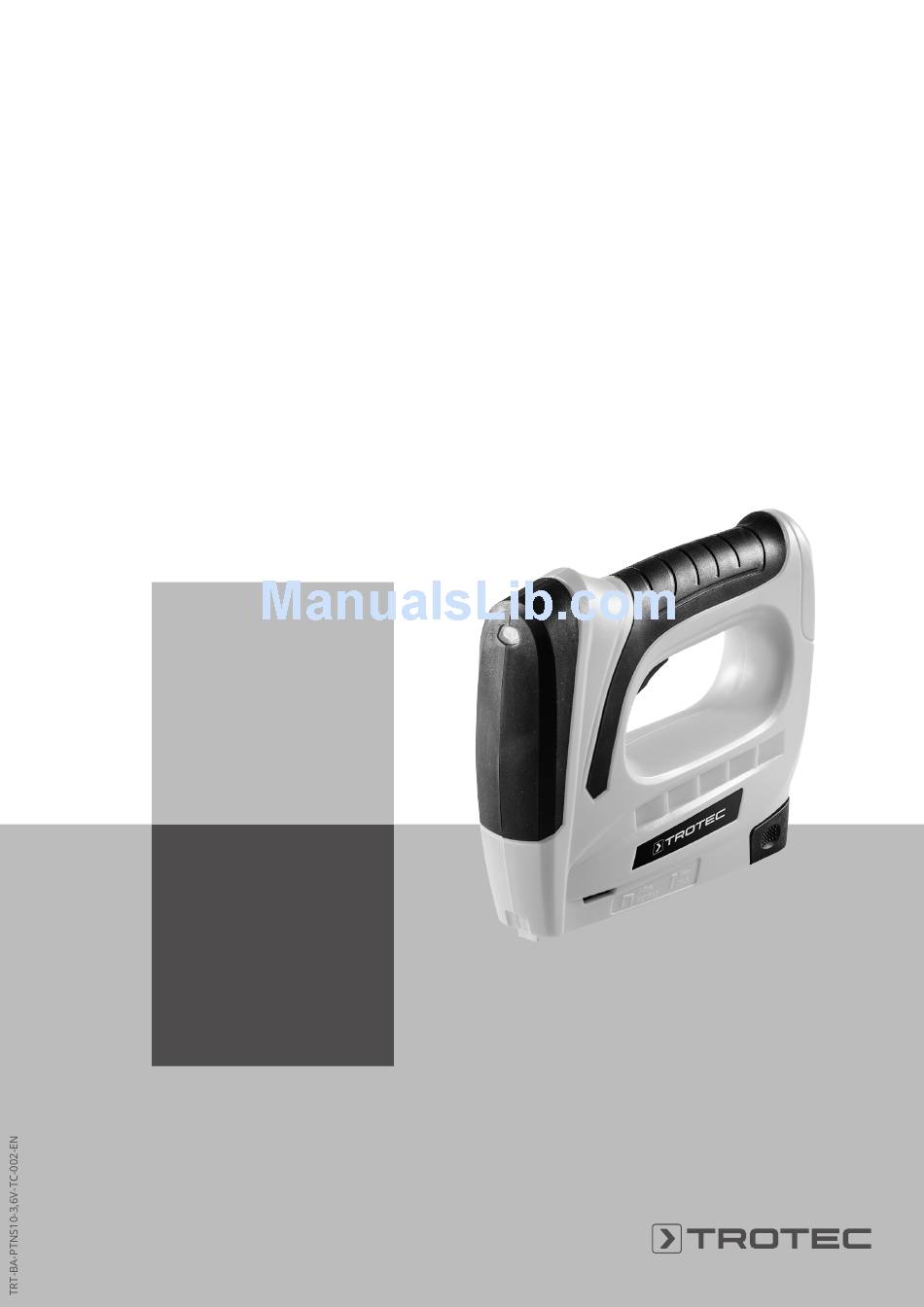

- Page 1 PTNS 10-3,6V ORIGINAL INSTRUCTIONS CORDLESS TACKER...
-
Page 2: Table Of Contents
Note This signal word indicates important information (e.g. material damage), but does not indicate hazards. Info Information marked with this symbol helps you to carry out your tasks quickly and safely. Operating manual – cordless tacker PTNS 10-3,6V... -
Page 3: Safety
Damaged or entangled cords increase the risk of electric shock. • When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. Operating manual – cordless tacker PTNS 10-3,6V... - Page 4 The mechanism may be under tension and the staple or wire nail could be forcefully ejected while you attempt to eliminate the jam. Operating manual – cordless tacker PTNS 10-3,6V...
- Page 5 Before any work on the device, remove the mains plug of the charger from the mains socket! We recommend using the power tool with original Trotec Hold onto the mains plug while pulling the power cable accessories. out of the mains socket.
- Page 6 Caution Keep a sufficient distance from heat sources. Note If you store or transport the device improperly, the device may be damaged. Note the information regarding transport and storage of the device. Operating manual – cordless tacker PTNS 10-3,6V...
-
Page 7: Information About The Device
50 wire nails of type 47. Device depiction Designation Magazine release Trigger Magazine filling level indicator Tacker guide nose / staple ejection Magazine slider On/off switch Micro USB charging socket Battery level indication Charger Wire nails Staples Operating manual – cordless tacker PTNS 10-3,6V... - Page 8 Uncertainty K 1.5 m/s² Sound values according to EN 60745 Sound pressure level L 80 dB(A) Sound power L 91 dB(A) Uncertainty K 3 dB Wear hearing protection. Excessive noise can lead to hearing loss. Operating manual – cordless tacker PTNS 10-3,6V...
-
Page 9: Transport And Storage
When the device is not being used, observe the following storage conditions: • dry and protected from frost and heat • ambient temperature below 40 °C • protected from dust and direct sunlight Operating manual – cordless tacker PTNS 10-3,6V... -
Page 10: Start-Up
Checking the battery charging status ü The device is switched off. The charging status is displayed by the battery level indication as follows: LED colour Meaning Green The battery is fully charged. The battery is currently charging. Operating manual – cordless tacker PTNS 10-3,6V... - Page 11 Wire nails can only be inserted as depicted: on the left- 1. Turn the bottom of the device up. hand side of the magazine. 2. Squeeze the magazine release (1) together and pull the magazine slider (5) out towards the back. Operating manual – cordless tacker PTNS 10-3,6V...
-
Page 12: Operation
Switching the device on and off Wear your personal protective equipment when working with the device. 1. Set the on/off switch (6) to I to switch the device on. Operating manual – cordless tacker PTNS 10-3,6V... -
Page 13: Errors And Faults
Contact the Trotec customer service. • Check the charger connection for dirt. Remove any dirt. • The battery might be defective. Contact the Trotec customer service. A wire nail or staple is jammed in the device: Warning Ensure that the device is switched off. -
Page 14: Maintenance
• Dry the device with a soft, lint-free cloth. • Keep the connecting terminals on the device and charger clean. • Keep the ventilation openings free from dust deposits to prevent overheating of the motor. Operating manual – cordless tacker PTNS 10-3,6V... -
Page 15: Disposal
The Section A addresses can be obtained from your municipality or local Herewith, we – Trotec GmbH & Co. KG – declare that the administration. For further return options provided by us please machinery designated below was developed, constructed and refer to our website www.trotec24.com. - Page 17 Trotec GmbH & Co. KG Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
