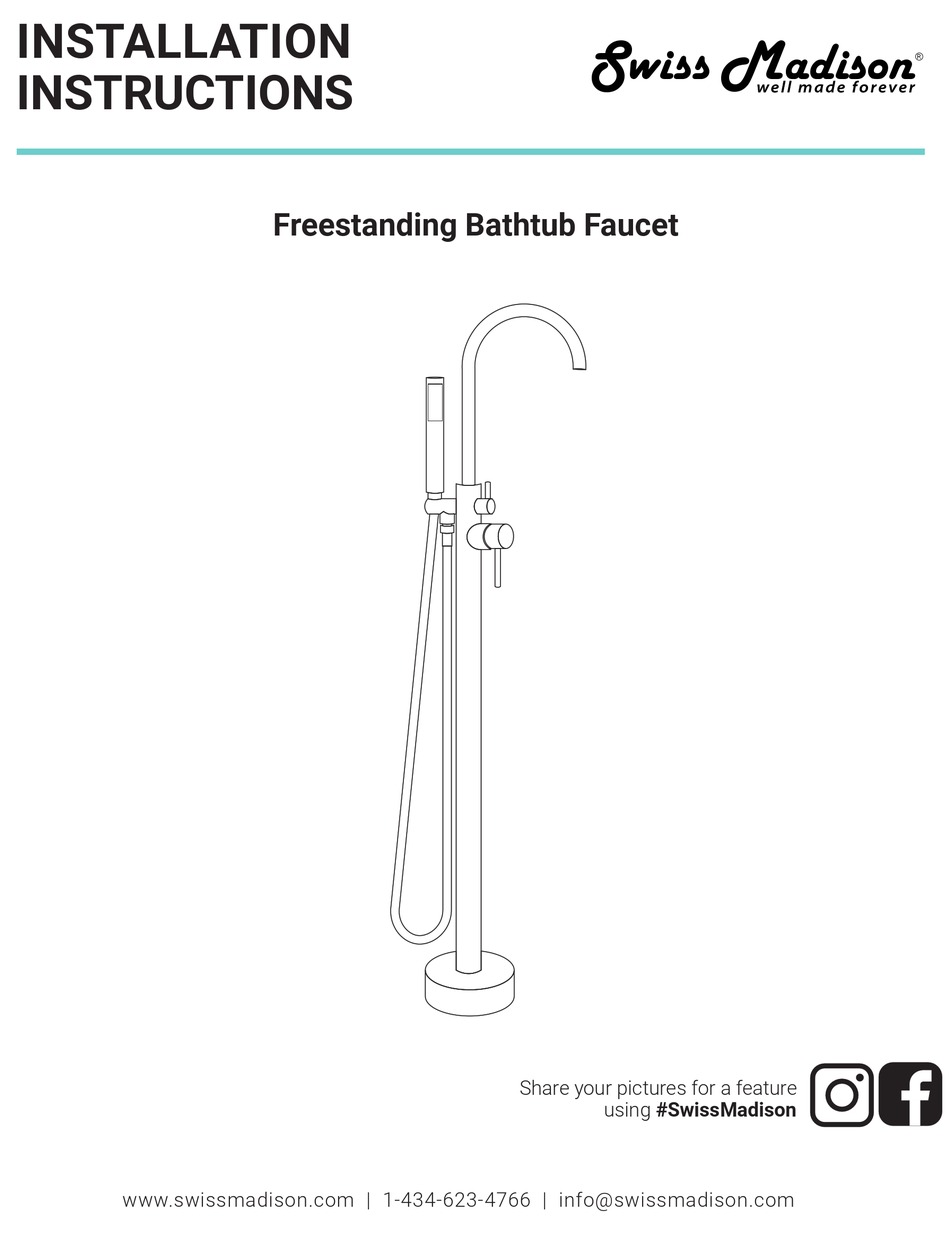

- Page 1 INSTALLATION wiss adison ® ® INSTRUCTIONS Freestanding Bathtub Faucet Share your pictures for a feature using #SwissMadison www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com...
- Page 2 Thank you for your purchase! Thank you for purchasing a Swiss Madison Faucet. We appreciate your business and know you will enjoy your faucet for many years to come. If you have any questions or require assistance we would be happy to help, please contact us at 1-434-623-4766 or info@swissmadison.com.
- Page 3 Hexagon Key Flexible Hose The step-by-step guidelines in the installation instructions are a general reference for installing a Swiss Madison Faucet. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional.
- Page 4 BATHTUB FAUCET INSTALLATION INSTRUCTIONS 1. Connect Hose to Faucet • Bunch the straight tube, escutcheon, and triangle fixing part into the flexible hose. • Connect flexible hose to body, then connect straight tube to body. Flexible hose Straight tube Escutcheon Triangle fixing part 2.
- Page 5 BATHTUB FAUCET INSTALLATION INSTRUCTIONS 3. Connect to Inlet Pipe • Connect the flexible hose to the inlet pipe. • Connect the triangle fixing part to the straight tube. 4. Secure to Floor 5. Install Hose • Drill holes according to drawing below. •...
- Page 6 If you have any questions or concerns, please contact us directly at 1-434-MADISON (623-4766) WARNING: Contents of your order may contain sharp and possibly other harmful pieces and may cause hazard to children and adults. Swiss Madison® is not responsible in any way for personal dam- ages.
