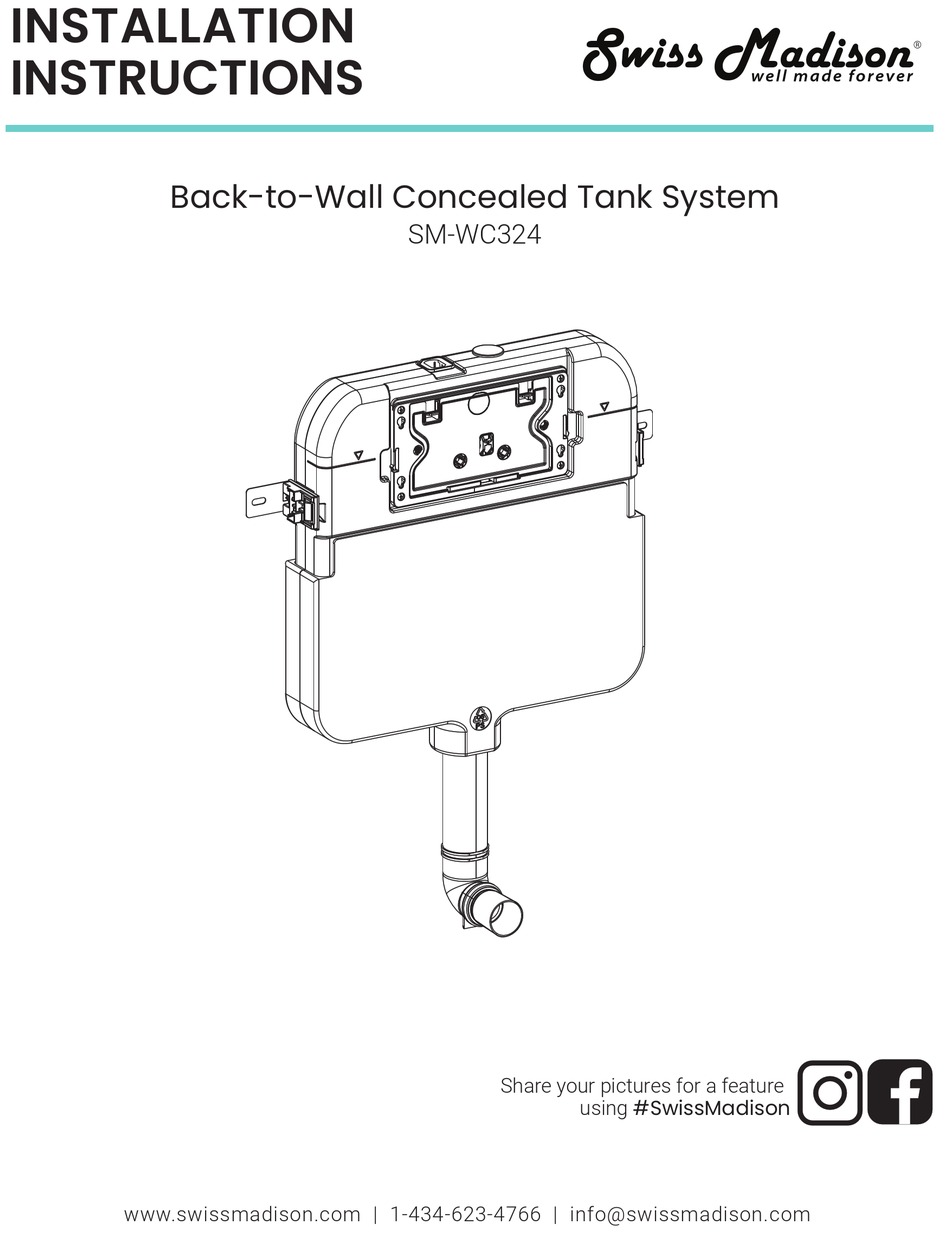

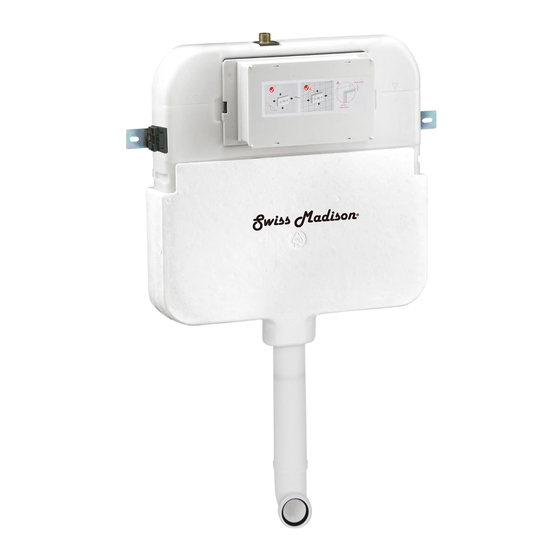

- Page 1 INSTALLATION ® wiss adison ® INSTRUCTIONS Back-to-Wall Concealed Tank System SM-WC324 Share your pictures for a feature using #SwissMadison www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com...
-
Page 2: Prior To Installation
Prior to Installation: · Read instructions thoroughly. · Remove existing toilet. · Be sure to properly bleed all air from the piping system, trapped air can cause damage to the flushing system and toilet bowl. · Observe all local plumbing codes. ·... - Page 3 Thank you for your purchase! Thank you for purchasing a Swiss Madison Concealed Tank System. We appreciate your business and know you will enjoy your product for many years to come. If you have any questions or require assistance we would be happy to help, please contact us at 1-434-6234766 or info@swissmadison.com.
- Page 4 CONCEALED TANK SYSTEM ROUGH DIMENSIONS The step-by-step guidelines in the installation instructions are a general reference for installing a Swiss Madison Concealed Tank System. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional 1.
-
Page 5: Installation Instructions
CONCEALED TANK SYSTEM INSTALLATION INSTRUCTIONS — 4 —... - Page 6 CONCEALED TANK SYSTEM INSTALLATION INSTRUCTIONS 1. Fasten Mounts (if fastening to studs) · Adjust clips then fasten carrier to studs or wall framing. · Ensure frame is flush and level before fastening. “Click” “Click” — 5 —...
- Page 7 CONCEALED TANK SYSTEM INSTALLATION INSTRUCTIONS 1. Fasten Mounts (if fastening to wall) · Adjust clips then fasten carrier to studs or wall framing. · Ensure frame is flush and level before fastening. Ø10 — 6 —...
- Page 8 CONCEALED TANK SYSTEM INSTALLATION INSTRUCTIONS 2. Cut Pipe · Measure and cut pipe according to your toilet. · Make sure to measure the sub floor and finished floor measurements before cutting to have the correct center. · Once pipe is cut, remove any burrs. 1000mm L(max.150mm) L=X-H...
- Page 9 CONCEALED TANK SYSTEM INSTALLATION INSTRUCTIONS 4. Remove Plate · Remove plate attach to water connection. 5. Attach Water Connection · Hold the shut-off valve stationary while tightening water connection. · Install locking nut as shown. — 8 —...
- Page 10 CONCEALED TANK SYSTEM INSTALLATION INSTRUCTIONS 6. Flush Debris · After attaching water connection to shut-off valve, undo the other side of the hose. · Turn on valve to flush any debris before installing the actuator. 7. Reconnect Water Supply · After flushing debris, reconnect the water supply hose. —...
- Page 11 CONCEALED TANK SYSTEM INSTALLATION INSTRUCTIONS 8. Reinstall Plate · Reinstall actuator and cover plate. · Ensure roughing box is secure to keep debris from entering the tank. “Click’’ “Click” 9. Trim Roughing Box · After wall materials are installed, trim roughing box. max.
- Page 12 CONCEALED TANK SYSTEM INSTALLATION INSTRUCTIONS Toilet Installation 1. Fit Pipe · Install pipe and make sure it is thouroughly inserted. · With a ruler, mark a line on the pipe where it meets the finished wall. · Remove from wall and install pipe in the back of the toilet and make sure it is thouroughly inserted. ·...
- Page 13 If you have any questions or concerns, please contact us directly at 1-434-MADISON (623-4766) WARNING: Contents of your order may contain sharp and possibly other harmful pieces and may cause hazard to children and adults. Swiss Madison® is not responsible in any way for personal dam- ages.
