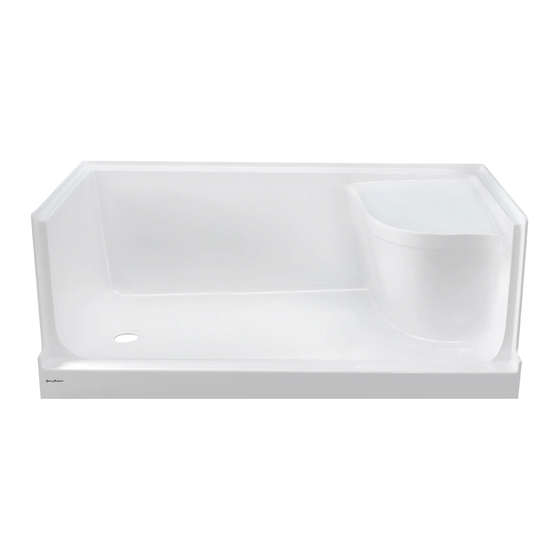

- Page 1 INSTALLATION wiss adison ® INSTRUCTIONS Aquatique Shower Base SM-SB537 / SM-SB538 Share your pictures for a feature! using #SwissMadison swissmadison.com | 1-434-MADISON | info@swissmadison.com...
- Page 2 Prior to Installation: Inspect showerbase to ensure no damages have occurred while during shipping. Observe all plumbing and building codes in accordance with your state and local requirements. Additional floor and wall preparations may be necessary to avoid damage to the product. All dimensions are nominal! Be sure to measure your showerbase prior to installation to accurately determine your enclosure size.
- Page 3 Thank you for your purchase! Thank you for purchasing a Swiss Madison Shower Base. We appreciate your business and know you will enjoy your product for many years to come. If you have any questions or require assistance we would be happy to help.
- Page 4 SHOWER BASE MODELS 59 ³⁄4” 59 ³⁄4” 7 7⁄8” 17 ¹⁄2” 17 ¹⁄2” 7 7⁄8” 15 9⁄16” 15 9⁄16” 22 ¹⁄2” 22 ¹⁄2” Ø 3 ¹⁄4” Ø 3 ¹⁄4” 32” 32” 3 9⁄16” 3 9⁄16” 56 5⁄8” 56 5⁄8” 17 ¹⁄8” 17 ¹⁄8”...
- Page 5 SHOWER BASE INSTALLATION INSTRUCTIONS CAUTION: · Shower base may only be installed in a recess type installation. · This shower base is not self-supporting and must be supported along its entire bottom with mortar or grout. Stringers will help level, but will not provide adequate support. ·...
- Page 6 SHOWER BASE INSTALLATION INSTRUCTIONS 2. Support · Mortar is recommended as bedding material (sand is not recommended). Apply enough bedding to support the complete bottom of the shower base. After the bedding has been poured, before it sets, position the shower base within the recess until the rim is leveled against the leveling stringers. NOTE: The rim of the shower base MUST NOT support weight.
- Page 7 (including, without limitation, costs associated with ‘professionals’ or ‘experts’, investigations, audits, analyses, attorneys and any other professional/hired services). The Swiss Madison® warranty is a comprehensive and explicit limit of liability. All items not disclosed within the warranty are not addressable within the responsibility of Swiss Madison®. Certain states have variances regarding implied warranties;...
