Swiss Madison Voltaire SM-VT324 Installation Instructions Manual

Swiss Madison Voltaire SM-VT324 Installation Instructions Manual

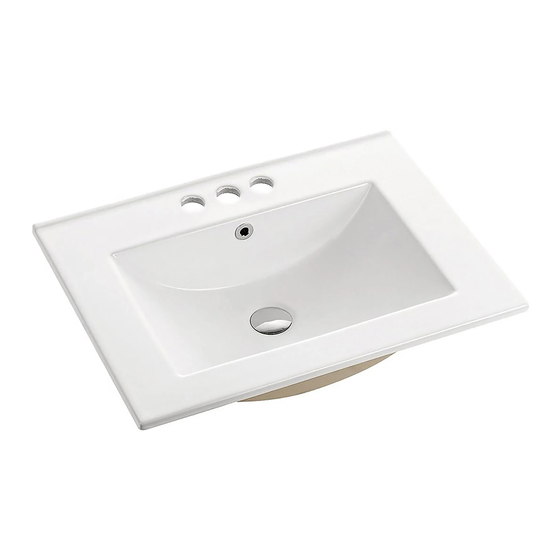

Vanity top sink

Advertisement

Quick Links

INSTALLATION
S
M
wiss
adison
®
INSTRUCTIONS
Voltaire Vanity Top Sink
Share your pictures for a feature!
using #SwissMadison
www.swissmadison.com | 19 Stults Rd, Dayton, NJ 08810 | 1-434-623-4766 | info@swissmadison.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Voltaire SM-VT324 and is the answer not in the manual?

Questions and answers

Summary of Contents for Swiss Madison Voltaire SM-VT324

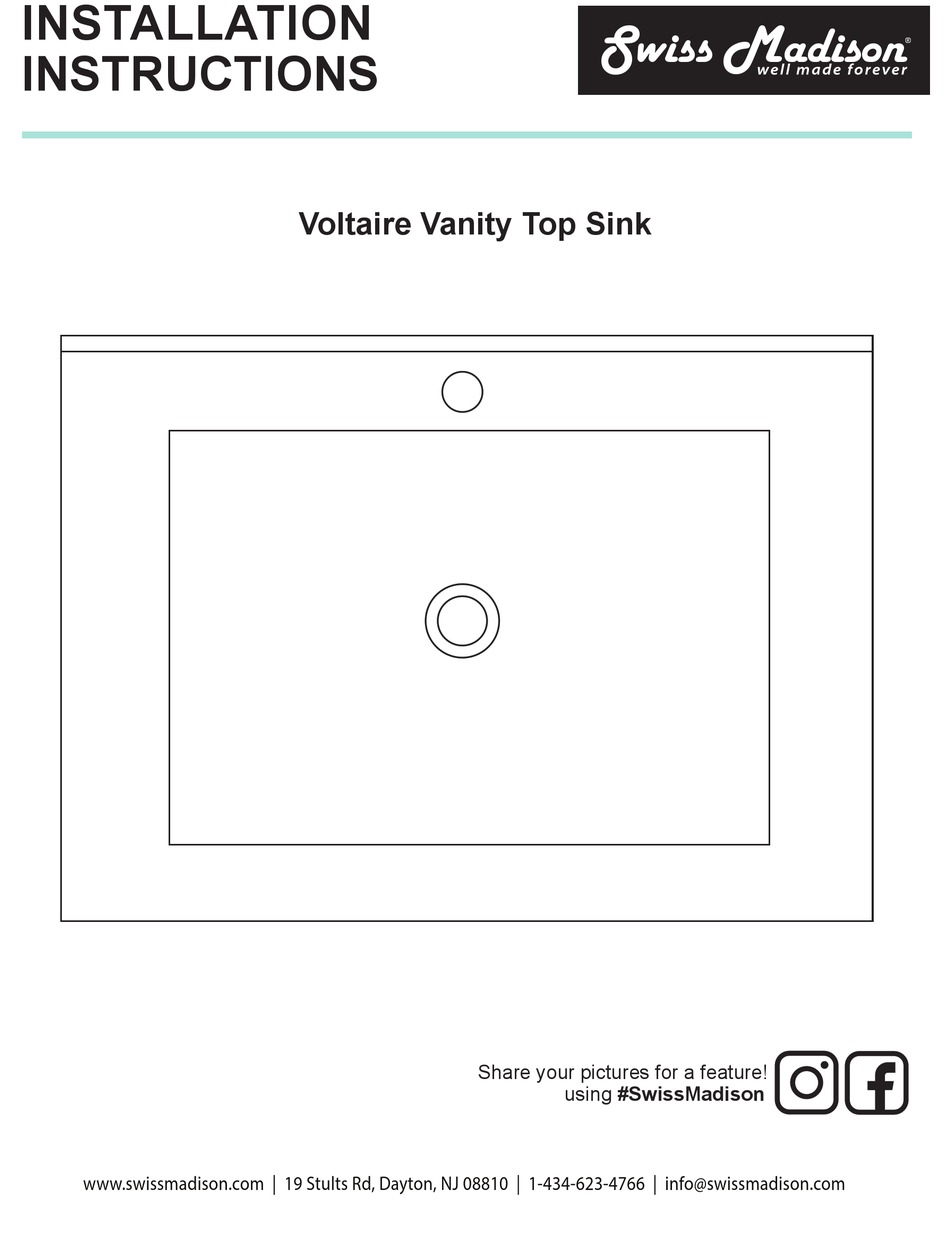

  • Page 1 INSTALLATION wiss adison ® INSTRUCTIONS Voltaire Vanity Top Sink Share your pictures for a feature! using #SwissMadison www.swissmadison.com | 19 Stults Rd, Dayton, NJ 08810 | 1-434-623-4766 | info@swissmadison.com...
  • Page 2 Prior to Installation: Inspect sink to ensure no damages have occurred while in shipping. Observe all plumbing and building codes in accordance with your state and local requirements. Additional oor and wall preparations may be necessary to avoid damage to the product. Vanity base must already be assembled and old sink should be removed.
  • Page 3 Thank you for your purchase Thank you for purchasing a Swiss Madison Vanity Top Sink. We appreciate your business and know you will enjoy your sink for many years to come. If you have any questions or require assistance we would be happy to help, please contact us at 1-434-6234766 or info@swissmadison.com.
  • Page 4 VANITY TOP SINK MODELS 24” 24” SM-VT324 SM-VT324-3 24” x 18 ⁄ ” x 6 ¾” 24” x 18 ⁄ ” x 6 ¾” *Matching Drain: SM-PD23 *Matching Drain: SM-PD23 25 ⁄ ” 25 ⁄ ” SM-VT327 SM-VT327-3 25 ⁄ ” x 22 ¼” x 7¼” 25 ⁄...
  • Page 5 VANITY TOP SINK MODELS 31 ⁄ ” 31 ⁄ ” SM-VT328 SM-VT328-3 31 ⁄ ” x 22 ¼” x 7 ¼” 31 ⁄ ” x 22 ¼” x 7 ¼” *Matching Drain: SM-PD23 *Matching Drain: SM-PD23 37 ¼” 49 ¼” SM-VT329 SM-VT330 37 ¼”...
  • Page 6: Installation Instructions

    Drain (not included) Faucet (not included) The step-by-step guidelines in the installation instructions are a general reference for installing a Swiss Madison Sink. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional Read the complete instruction manual before beginning installation.
  • Page 7 1. Prep Installation Area Disconnect water supplies. If you are replacing an old vanity top be sure to have already removed the old sink. If you are installing a new vanity make sure it is assembled as instructed by the manufacturer. 2.
  • Page 8 4. Secure Sink Carefully lower sink into place so that it is resting on the vanity base. Press sink rmly into place and wipe away excess sealant with a damp cloth. Allow for adhesive to cure; this is dependent upon which adhesive you choose to use. Be sure to check the instructions on your adhesive prior to use.
  • Page 9 The Swiss Madison® warranty is a comprehensive and explicit limit of liability, and all items outside of it are not addressable by or the responsibility of Swiss Madison®. Certain states have variances regarding implied warranties and in those situations we remain fully compliant.
