Summary of Contents for Swiss Madison SM-BV901WG

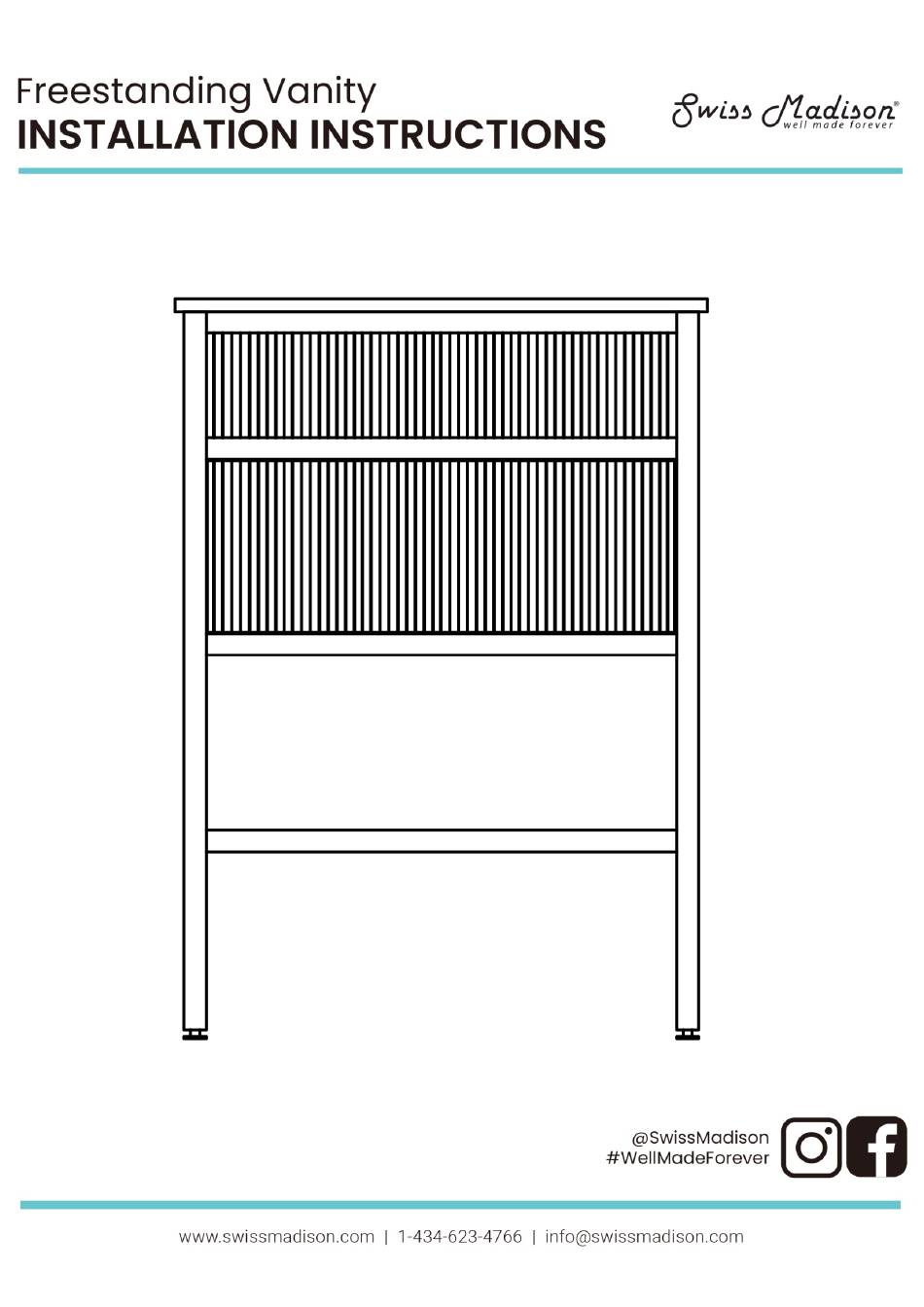

- Page 2 Vanity Base...
- Page 3 1:Left side panel 2:Right side panel 3:Near bottom panel 4:Bottom panel 5:Top drawer panel 6:Drawer panel 6-1:Drawer left panel 6-2:Drawer right panel 6-3:Drawer bottom panel 6-4:Drawer left back panel 6-5:Drawer right back panel A.Cam bolt B.Cam lock C.Cam patch 65mm 1.Install drawer panel Screw 4 cam bolts(A)into the left side panel(1) .Repeat for the right side panel(2) Screw 1 cam bolts(A)into the drawer left back panel(6-4).
- Page 4 2.Assemble drawer panel Connect the drawer left /right back panel (6-4/6-5) to the drawer bottom panel (6-3) Use 2 cam locks (B) to secure in the place. Attach the drawer back panel (6-4/6-5)and drawer bottom panel (6-3)to the drawer left side panel(6-1) and secure using 4 cam locks(B).
- Page 5 Connect the aluminum frame (1) to the 25*25*540 aluminum bar (2) use 6 M4*10 screw (4). Connect the aluminum frame (1) to the 25*25*540 aluminum bar (3) use 8 M4*10 screw (4).Note that the aluminum bar with hole (3) is installed at the bottom. Attach the drawer (7) to the aluminum frame and secure using 8 M4*20 screw (5).
