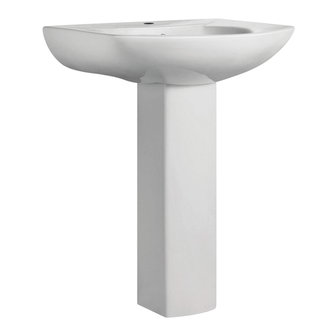

Two piece pedestal sinks
Hide thumbs Also See for SM-PS306:

Advertisement

Quick Links

INSTALLATION
S
M
wiss
adison
INSTRUCTIONS
Two Piece Pedestal Sinks
Share your pictures for a feature!
using #SwissMadison
www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the SM-PS306 and is the answer not in the manual?

Questions and answers

Summary of Contents for Swiss Madison SM-PS306

  • Page 1 INSTALLATION wiss adison INSTRUCTIONS Two Piece Pedestal Sinks Share your pictures for a feature! using #SwissMadison www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com...
  • Page 2 Prior to Installation: Inspect sink to ensure no damages have occurred while in shipping Observe all plumbing and building codes in accordance with your state and local requirements Additional oor and wall preparations may be necessary to avoid damage to the product General Recommendations: Read installation and maintenance instructions thoroughly before installing the sink.
  • Page 3 Thank you for your purchase Thank you for purchasing a Swiss Madison Sink. We appreciate your business and know you will enjoy your sink for many years to come. If you have any questions or require assistance we would be happy to help, please contact us at 1-434-6234766 or info@swissmadison.com.
  • Page 4 PEDESTAL SINK MODELS 22” 23.62” SM-PS305 SM-PS306 32.68” x 22” x 20.47” 32.68” x 22.62” x 19” 22.64” SM-PS309 32” x 22.64” x 17.5” — 3 —...
  • Page 5: Installation Instructions

    32” x 22.62” x 19” SUGGESTED TOOLS AND MATERIALS Wrench Drill Level Screwdriver Safety Glasses Pencil PARTS LIST Swiss Madison Sink Mounting Hardware Faucet (not included) NOTE: Specialized tools may be necessary to install Swiss Madison Pedestal, plumbing not included. — 4 —...
  • Page 6 PEDESTAL SINK INSTALLATION INSTRUCTIONS The step-by-step guidelines in the installation instructions are a general reference for installing a Swiss Madison Sink. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional 1.
  • Page 7 2. Mounting The Sink Put sink back in position and mark where to install mounting hardware. 1. Drill two holes in the required position on the wall 2. Push a wall plug into each hole. using a 14mm masonry drill bit, to a depth of 75mm. 3.
  • Page 8 3. Attach Plumbing 4. Install Pedestal Set sink into the mounting bracket. Slide pedestal into place. Install faucet, most of trap, and connect supply lines. 5. Secure Into place Bolt pedestal into oor. Screw sink into the wall. NOTE: Be careful not to tighten too much as you risk cracking the ceramic. —...
  • Page 9 The Swiss Madison® warranty is a comprehensive and explicit limit of liability, and all items outside of it are not addressable by or the responsibility of Swiss Madison®. Certain states have variances regarding implied warranties and in those situations we remain fully compliant.

This manual is also suitable for:

Sm-ps305Sm-ps309
