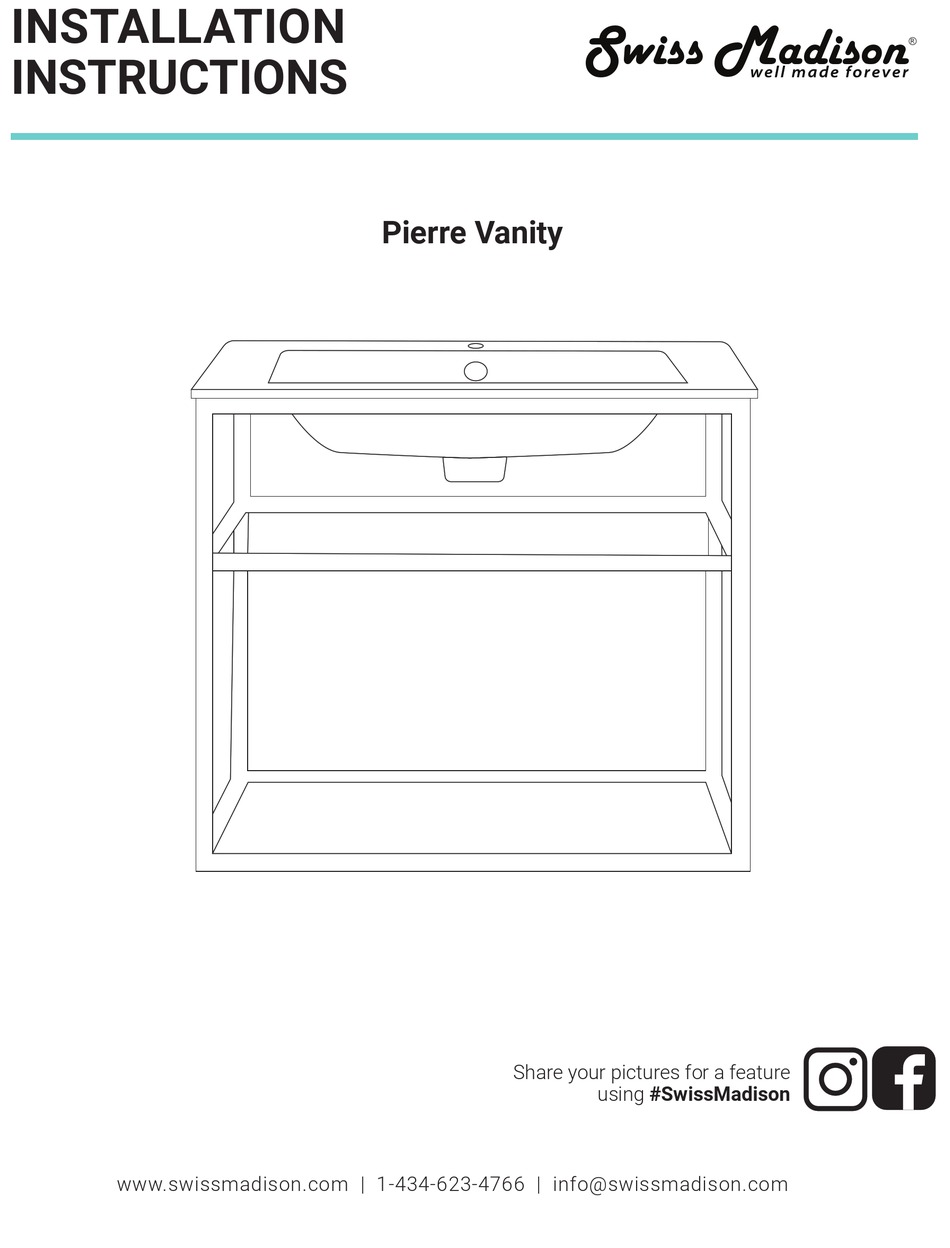

- Page 1 INSTALLATION wiss adison ® ® INSTRUCTIONS Pierre Vanity Share your pictures for a feature using #SwissMadison www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com...
- Page 2 Prior to Installation: Inspect vanity to ensure no damages have occurred during shipping. Observe all plumbing and building codes in accordance with your state and local requirements. Additional floor and wall preparations may be necessary to avoid damage to the product. Height of console frame is NOT adjustable.
- Page 3 Thank you for your purchase! Thank you for purchasing a Swiss Madison Vanity. We appreciate your business and know you will enjoy your product for many years to come. If you have any questions or require assistance we would be happy to help, please contact us at 1-434-6234766 or info@swissmadison.com.

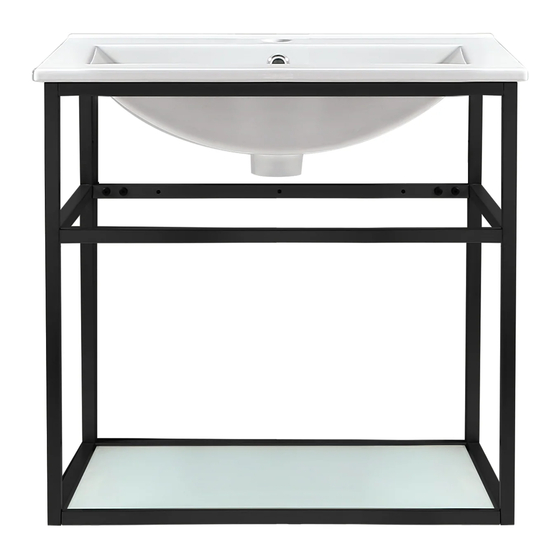

- Page 4 VANITY MODELS 24” 18 5⁄16” 19 ¹⁄8” 9 7⁄8” 24 ¹⁄4” 25 ³⁄8” SM-BV551 SM-BV551 - Matte Black Frame SM-BV552 SM-BV552 - Matte Black Frame SM-BV551C - Chrome Frame SM-BV552C - Chrome Frame 19 ¹⁄8” x 9 7⁄8” x 25 ³⁄8” 24”...
- Page 5 VANITY MODELS 29 ¹⁄2” 18 5⁄16” 24 ³⁄16” SM-BV556 SM-BV556MB - Matte Black Frame SM-BV556C - Chrome Frame 29 ¹⁄2” x 18 5⁄16” x 24 ³⁄16” *Matching Drain: SM-PD23 SM-BV556G - Gold Frame *Compatible drains sold separately - multiple color options available. NOTE: Drawings may not exactly define contour of china.
-
Page 6: Installation Instructions
Silicone Level Gloves Adhesive Screw Drivers Pencil Allen Wrench Wall Anchors (not included) PARTS LIST Swiss Madison Sink Console Components Faucet (not included) Drain (not included) NOTE: Specialized tools may be necessary to install Swiss Madison Vanity. — 5 —... - Page 7 VANITY INSTALLATION INSTRUCTIONS The step-by-step guidelines in the installation instructions are a general reference for installing a Swiss Madison Vanity. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional Read the complete instruction manual before beginning installation.
- Page 8 2. Install Vanity Base 3. Install Faucet and Drain Secure vanity base to the wall in your Following manufacturer's instructions, desired location. install drain and faucet onto vanity top. NOTE: Use wall anchors along with included hardware. 4. Apply Adhesive 5.
- Page 9 7. Install Plumbing Fixtures 6. Installing Plumbing Fixtures Connect drain trap to drain & water supply Apply a bead of caulk along the back connections to the faucet according to edge of the sink against the wall. manufacturer’s instruction. Wipe away any excess. Run water and check for leaks.
- Page 10 If you have any questions or concerns, please contact us directly at 1-434-MADISON (623-4766) WARNING: Contents of your order may contain sharp and possibly other harmful pieces and may cause hazard to children and adults. Swiss Madison® is not responsible in any way for personal dam- ages.
