Summary of Contents for Swiss Madison SM-VSF251

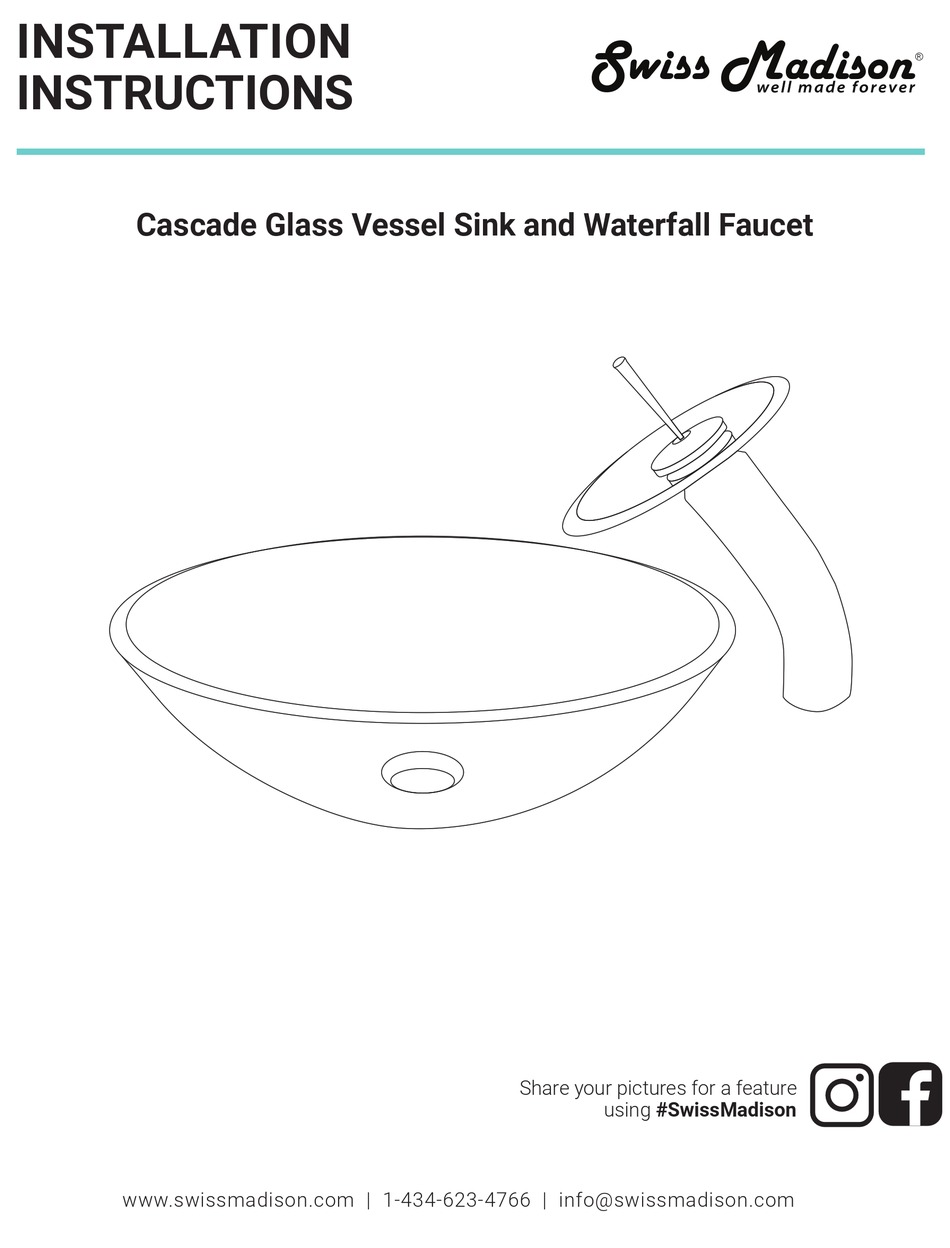

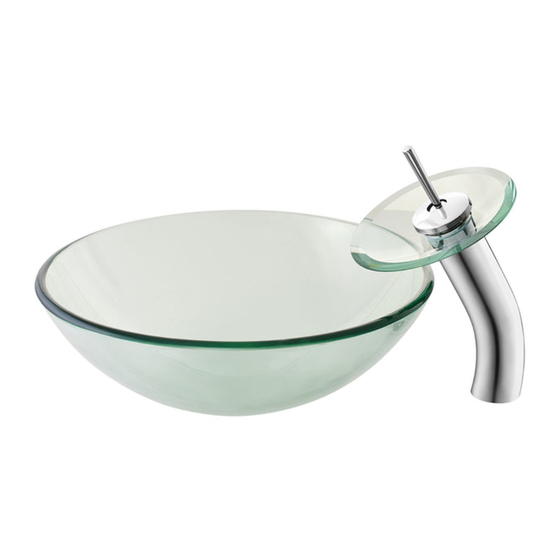

- Page 1 INSTALLATION wiss adison ® ® INSTRUCTIONS Cascade Glass Vessel Sink and Waterfall Faucet Share your pictures for a feature using #SwissMadison www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com...
- Page 2 Thank you for your purchase! Thank you for your purchase! Thank you for purchasing a Swiss Madison Sink and Faucet. Thank you for purchasing a Swiss Madison Sink and Faucet. We appreciate your business and know you will enjoy your faucet for many years to come.
-
Page 3: Installation Instructions
The step-by-step guidelines in the installation instructions are a general reference for installing. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional. 1. Read the complete instruction manual before beginning installation. - Page 4 VESSEL SINK INSTALLATION INSTRUCTIONS 1. Put the upper part of the drain into the drain hole, then install the rubber pad between the drain and the sink. Align the sink ring on top of the drain hole in the counter top and place the sink into the hole. 2.
- Page 5 VESSEL SINK INSTALLATION INSTRUCTIONS 3. Put together the other half of the drain and the flexible hose. Screw off the nut on the top of the drain pipe slightly, then connect the drain and tighten it. 4. Connect the top half and bottom half of the drain. —...
- Page 6 WATERFALL FAUCET INSTALLATION INSTRUCTIONS 5. Connect the hot and cold water inlet pipes and tighten them to the bottom of the faucet. 6. Put the small, round, rubber ring on the round edge of the indented curve. — 5 —...
- Page 7 WATERFALL FAUCET INSTALLATION INSTRUCTIONS 7. Screw in both bolts about a quarter of the way into the bottom of the faucet. 8. Put the water inlet pipe into the faucet hole of the counter, adjust the faucet to be in the correct position.
- Page 8 WATERFALL FAUCET INSTALLATION INSTRUCTIONS 9. Adjust the direction of the faucet and install the U-shaped rubber pad around the bolts and water inlet pipes. 10. Install the U-shaped metal sheet and tighten the nuts onto the bolts to keep faucet in place. Ensure the faucet is secure.
- Page 9 If you have any questions or concerns, please contact us directly at 1-434-MADISON (623-4766) WARNING: Contents of your order may contain sharp and possibly other harmful pieces and may cause hazard to children and adults. Swiss Madison® is not responsible in any way for personal dam- ages.
