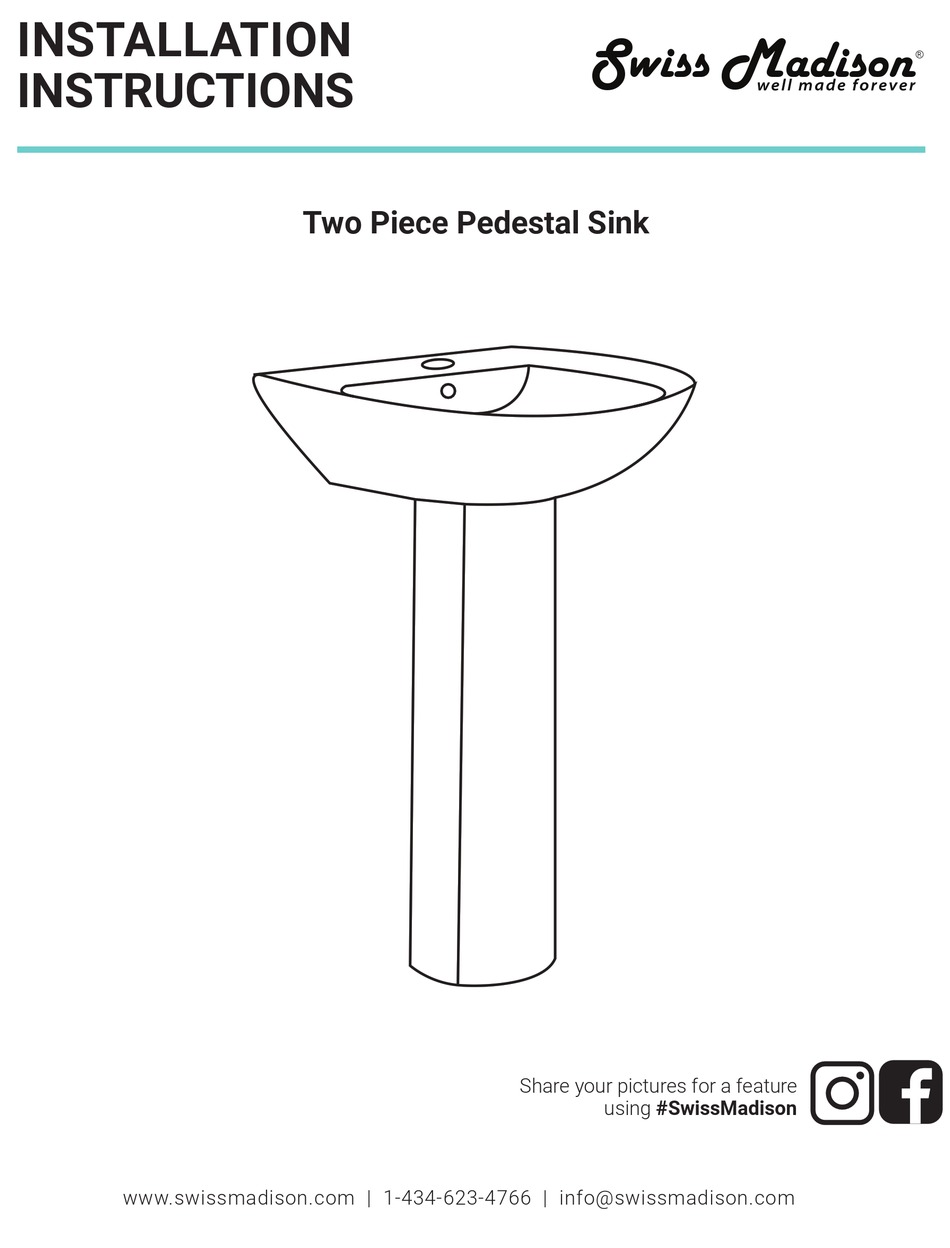

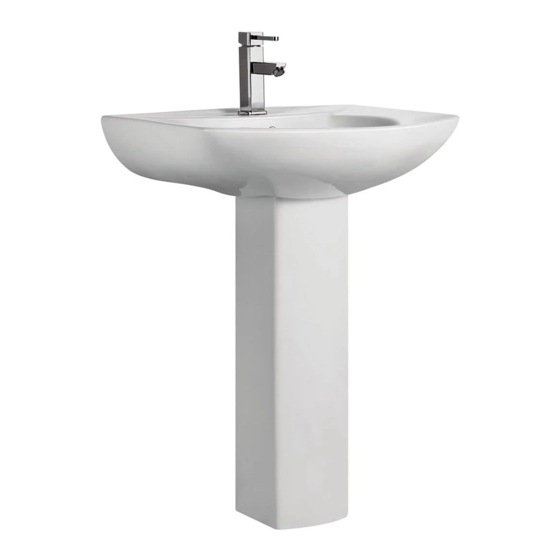

- Page 1 INSTALLATION wiss adison ® ® INSTRUCTIONS Two Piece Pedestal Sink Share your pictures for a feature using #SwissMadison www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com...
- Page 2 Prior to Installation: Inspect sink to ensure no damages have occurred while in shipping. Observe all plumbing and building codes in accordance with your state and local requirements. Additional floor and wall preparations may be necessary to avoid damage to the product. All Dimensions are nominal! Be sure to measure your sink prior to installation.
- Page 3 Thank you for your purchase! Thank you for purchasing a Swiss Madison Sink. We appreciate your business and know you will enjoy your sink for many years to come. If you have any questions or require assistance we would be happy to help, please contact us at 1-434-6234766 or info@swissmadison.com.
- Page 4 TWO PIECE PEDESTAL SINK MODELS 24” 22 ¹³⁄16” 17 ¹¹⁄16 32 ¹⁄2” 31 7⁄8” SM-PS305 SM-PS306 24” x 18” x 32 ¹⁄2” 22 ¹³⁄16” x 17 ¹¹⁄16” x 31 7⁄8” 26 ¹5⁄16” 19 7⁄8” 32 7⁄8” SM-PS309 26 ¹5⁄16” x 19 7⁄8” x 32 7⁄8”...
-
Page 5: Installation Instructions
1 ³⁄8” SUGGESTED TOOLS AND MATERIALS Level Drill Safety Glasses Pencil Wrench Screwdriver PARTS LIST Swiss Madison Sink Mounting Hardware Faucet (not included) NOTE: Specialized tools may be necessary to install Swiss Madison Pedestal Sink, plumbing not included. — 4 —... - Page 6 TWO PIECE PEDESTAL SINK INSTALLATION INSTRUCTIONS The step-by-step guidelines in the installation instructions are a general reference for installing a Swiss Madison Sink. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional Read the complete instruction manual before beginning installation.
- Page 7 2. Mounting the Sink Put sink back in position and mark where to install mounting hardware. Plastic Solenoid Metal Screw Plastic Gasket Metal Gasket Metal Nut 1. Drill two holes in the required position on the wall using a 2. Push a wall plug into each hole. 14mm masonry drill bit, to a depth of 75mm.
- Page 8 3. Attach Plumbing 4. Install Pedestal Set sink into the mounting bracket. Slide pedestal into place. Install faucet, most of trap, and connect supply lines. 5. Secure Into Place Bolt pedestal into the floor. NOTE: Do not over-tighten, as this may damage the ceramic. —...
- Page 9 If you have any questions or concerns, please contact us directly at 1-434-MADISON (623-4766) WARNING: Contents of your order may contain sharp and possibly other harmful pieces and may cause hazard to children and adults. Swiss Madison® is not responsible in any way for personal dam- ages.
