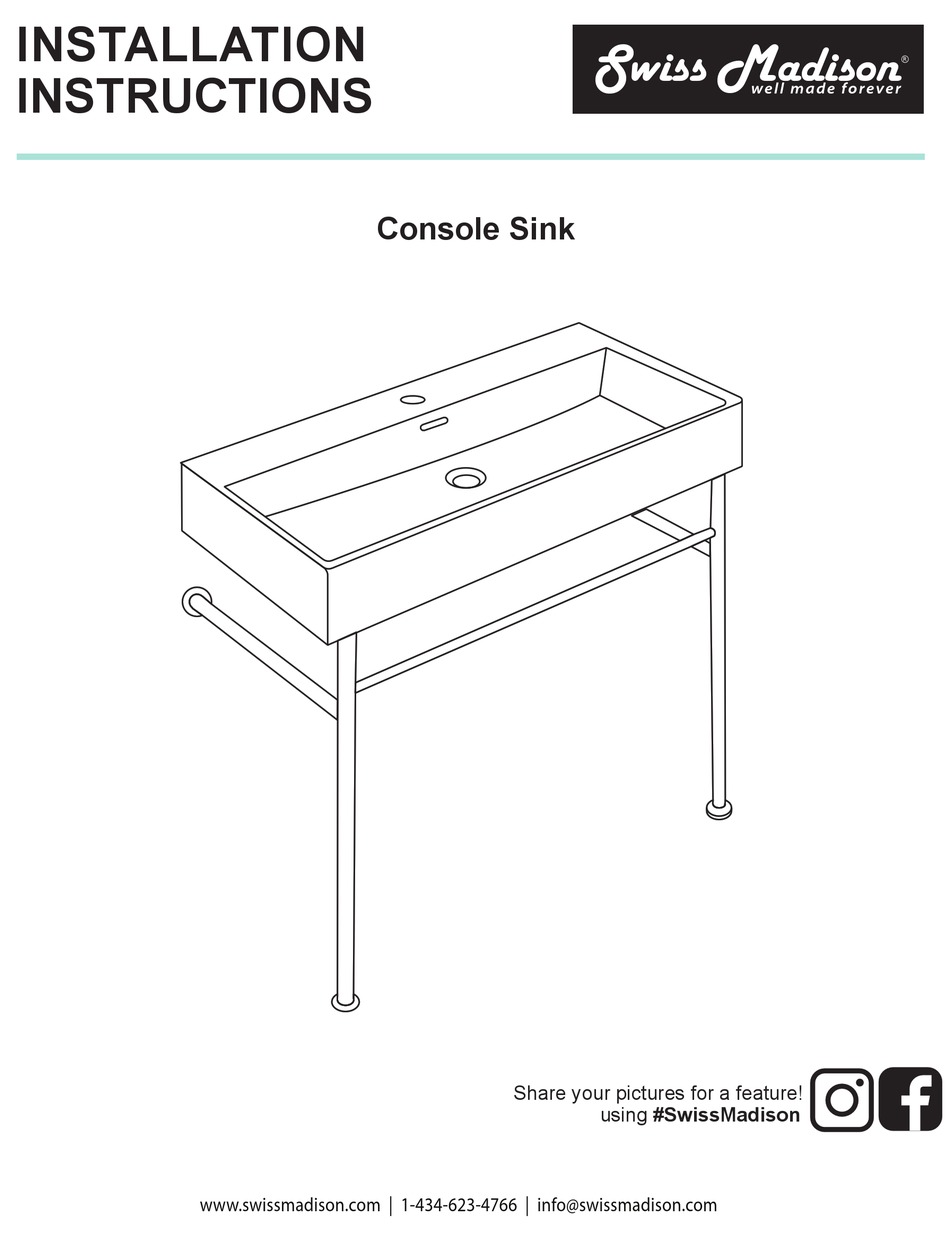

- Page 1 INSTALLATION wiss adison ® ® INSTRUCTIONS Console Sink Share your pictures for a feature! using #SwissMadison www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com...
- Page 2 Thank you for your purchase! Thank you for purchasing a Swiss Madison Console Sink. We appreciate your business and know you will enjoy your sink for many years to come. If you have any questions or require assistance we would be happy to help, please contact us at 1-434-623-4766 or info@swissmadison.com.
- Page 3 29 ½” 35 ⁄ ” 35 ⁄ ” 22 ⁄ ” 29” 15 ⁄ ” 15 ⁄ ” SM-CS711 SM-CS761 SM-CS712 SM-CS762 24” x 16 ½” x 35 ⁄ ” 29 ½” x 16 ½” x 35 ⁄ ” SM-CS721...
- Page 4 SUGGESTED TOOLS AND MATERIALS Level Measuring Tape Screwdriver Caulk Safety Glasses Pencil Wrench Drill PARTS LIST Console Components Mounting Hardware Faucet (not included) Swiss Madison Sink NOTE: Specialized tools may be necessary to install a Swiss Madison Console Sink. — 3 —...
- Page 5 CONSOLE SINK INSTALLATION INSTRUCTIONS The step-by-step guidelines in the installation instructions are a general reference for installing a Swiss Madison Console Sink. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional.
- Page 6 2. Install Sink Use your assembled console to mark on the wall where the bottom of the sink should rest. Using the steps illustrated below install your sink. NOTE: Make sure your sink is LEVEL before marking and securing into place. Plastic Solenoid Metal Screw Plastic Gasket Metal Gasket Metal Nut 1.
- Page 7 3. Install Console Secure your console underneath the sink and to the wall. 4. Seal Sink 5. Connect Plumbing Apply a bead of caulk around the back Install your faucet, drain, and connect your plumbing. edge of the sink where it meets the wall. Run water and check for leaks.
- Page 8 • accidents, or other damages, etc. Swiss Madison® makes no implication that its products comply with any local building or plumbing codes. It is the consumer’s responsibility and obligation to determine local code compliance prior to and during installation. This warranty extends only to the original purchaser and first consumer.
