INSTALLATION
INSTRUCTIONS
SKU
SM-BV142
SM-BV143
615mm
24.2"
530mm
20.8"
350mm
13.7"
www.swissmadison.com | 19 Stults Rd, Dayton, NJ 08810 | 1-434-623-4766 | info@swissmadison.com

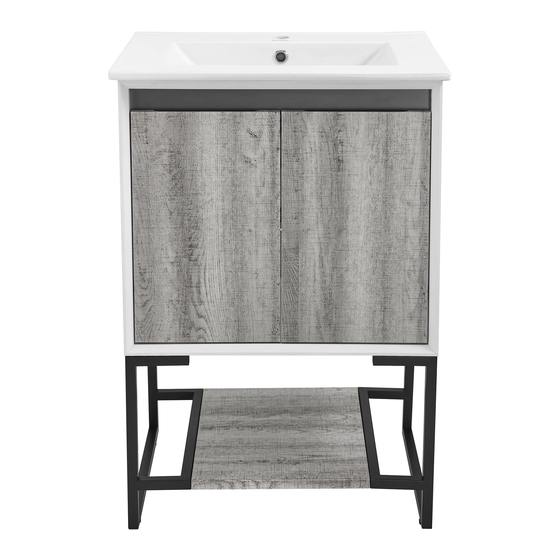

Marseille 24'' Two Doors Open Shelf Single Bathroom Vanity
Marseille 36'' Two Doors One Drawer Open Shelf Single Bathroom Vanity
505mm
19.8"
S
wiss
NAME
915mm
36"
530mm
20.8"
350mm
13.7"
Share your pictures for a feature!
M
adison
505mm
19.8"
using #SwissMadison
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Swiss Madison Marseille SM-BV142
Summary of Contents for Swiss Madison Marseille SM-BV142
- Page 1 INSTALLATION wiss adison INSTRUCTIONS NAME Marseille 24'' Two Doors Open Shelf Single Bathroom Vanity SM-BV142 Marseille 36'' Two Doors One Drawer Open Shelf Single Bathroom Vanity SM-BV143 505mm 615mm 505mm 19.8" 19.8" 24.2" 915mm 36" 530mm 20.8" 530mm 20.8" 350mm 350mm 13.7"...
-
Page 2: Required Tools

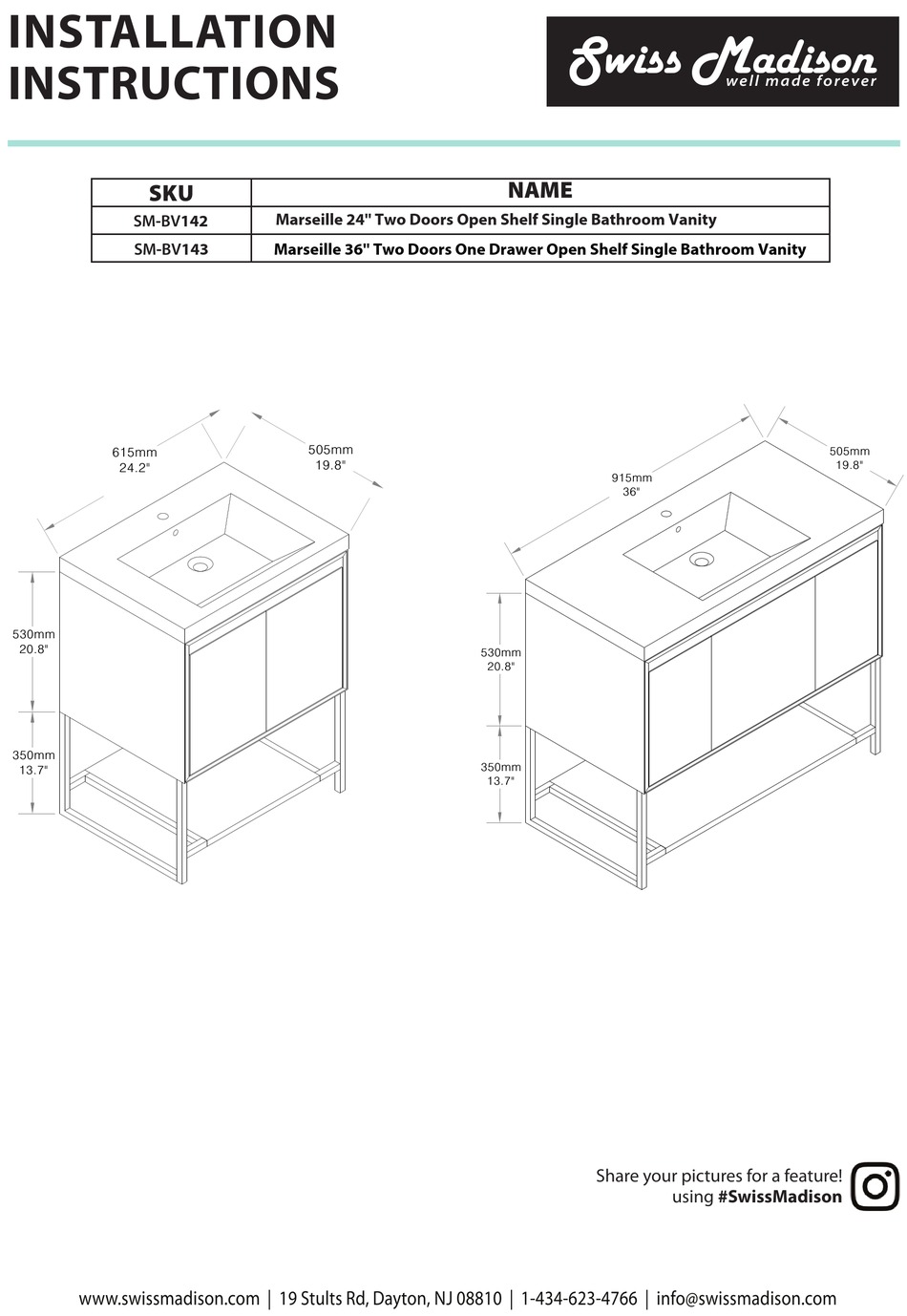

BATHROOM VANITY INSTALLATION INSTRUCTIONS L x W x H Installation NAME Basins Marseille Freestanding/Wall Hung 24.2'' 19.8'' 34.6'' SM-BV142 Single 36'' x 19.8'' x 34.6'' Freestanding/Wall Hung Marseille SM-BV143 Single Measures: millimeter [inch] Medidas: milímetros [pulgadas] 505mm 19.8" 915mm 505mm 615mm 36"... -
Page 3: Before Installation
BATHROOM VANITY INSTALLATION INSTRUCTIONS Before Installation Read the complete instruction manual before beginning installation. This vanity should be installed by an experienced plumber. Not all drawings on this manual are drawn to scale. Please refer to the model chart. Drain pipe and drain trap are not supplied. Connect to an existing drain pipe. Always use drop cloth to protect vanity from damage during installation. - Page 4 BATHROOM VANITY INSTALLATION INSTRUCTIONS FREESTANDING VANITY INSTALLATION...
- Page 5 BATHROOM VANITY INSTALLATION INSTRUCTIONS FREESTANDING VANITY INSTALLATION STUDS 4 PCS...
- Page 6 BATHROOM VANITY INSTALLATION INSTRUCTIONS Vanity Top Installation Install the faucet per manufacturer’s installation instructions. Hand tighten the pop-up drain with a wrench. Be careful not to over-tightening the pop-up drain. Over tightening may cause cracks on the marble top. Set the vanity top on top of the vanity base, checking the location of the p-trap and drain. Remove vanity top from vanity base.
- Page 7 BATHROOM VANITY INSTALLATION INSTRUCTIONS WALL HUNG VANITY INSTALLATION Select hardware that is best suited for your wall type. Important: Use “pan head” or “round head” screws with seat washers. Seat screws tightly against back rail or panel without driving into back rail or panel material. Seleccione la Herrajeria que más adecuada para el tipo de su pared.
- Page 8 BATHROOM VANITY INSTALLATION INSTRUCTIONS STUDS 6 PCS Vanity Top Installation Install the faucet per manufacturer’s installation instructions. Hand tighten the pop-up drain with a wrench. Be careful not to over-tightening the pop-up drain. Over tightening may cause cracks on the marble top. Set the vanity top on top of the vanity base, checking the location of the p-trap and drain.
- Page 9 BATHROOM VANITY INSTALLATION INSTRUCTIONS Wait 24 hours before use. Espere 24 houras antes de usar. Hinge/Door Adjustment (If applicable) The door aligment was set in the factory, but it could have shifted during transit. If adjustment is needed, follow the instructions provided in the following chart.
