Sune Technology USM-BENZ9-NTG 4.5 Manual

1
OEM BUTTON USAGE
1) JOG BUTTON (BACK)
- LONG PRESS : MODE SWITCH
- SHORT PRESS : BACK TO OEM
2

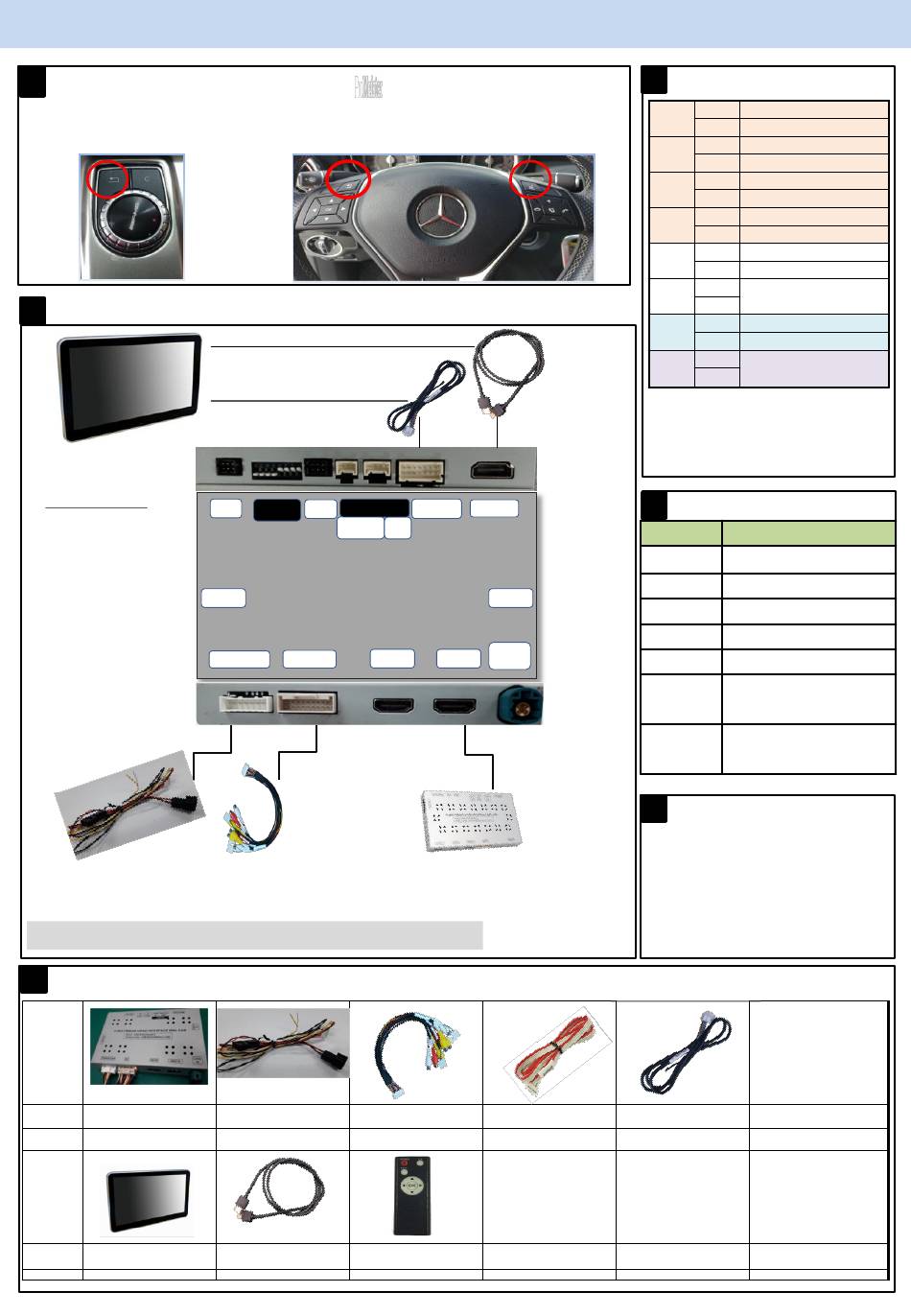

Installation Diagram : Use only the cable shown in the picture below.
I/F Product size
W 140mm
H 85mm
D 21mm
① POWER CAN ② Multi Cable
⑥LVDS output ⑦MNT-Interface Cable
⑤ Connect OEM LVDS cable that was connected to OEM monitor.
6
Components
Product Name TEST : USM-BENZ9-MAIN4.5-V1.2 OEM W222 POWER CABLE(M) V2
Product Code QCPASS1291
Product Name USM-BENZ9-MNT-V1.2
Product Code QCPASS1292
USM-BENZ9-NTG 4.5 MANUAL
2) HANDLE BUTTON (BACK)
- LONG PRESS : MODE SWITCH
- SHORT PRESS : BACK TO OEM
TEST#1 TS-OUT
TEST#2
DIP S/W
TO
⑫
⑩
⑪
TS-CON
⑨
USM BENZ9
⑭
5V-OUT NTG4.5
①
②
AV HD-IN
POWER/CAN
③ HDMI input ④ NAVI input
⑧Touch cable :
CONNECT TO NAVI BOX
TOUCH PORT
QHI PGCTR AV CABLE(M)
HPOWER0207
HDMI CABLE_SAMZHE_1M REMOTE CONTROL：INTERFACE
HARETC0257
3) HANDLE BUTTON (VOICE)
- RESET (PRESS 7Secs)
MNT-CON 5CH-OUT
TO
⑦ ⑥
NAVI
⑧
⑬
TEST#3
③ ④ ⑤
5CH
NAVI-IN
LVDS-IN
⑤ OEM LVDS
⑨ TS-Con : N/C ⑪DIP S/W
QNAVI4 RGB TOUCH CABLE
HAVCAB0060 HTOUCH0022
REMOTE0001
-1/2-
Update : 2018. 09. 19
3
DIP S/W SETTING
OFF NAVI(LVDS) MODE
DIP1
ON NAVI(LVDS) MODE SKIP
OFF HDMI MODE
DIP2
ON HDMI MODE SKIP
OFF AV MODE
DIP3
ON AV MODE SKIP
OFF EXT FCAM
DIP4
ON OEM FCAM
OFF 800*480
DIP5
ON 400 *240
DIP6
OFF OEM RCAM
DIP7
ON EXT RCAM
DIP8 N/C
※ FCAM setting could be found in
Factory Setting.
(Default is 3 seconds. If you don't use,
please set OFF)
4
Remote Control setting
Key Function
POWER/PIP N/C
MENU Activate OSD MENU
OK
selection, mode switch
▲
Moving upward
▼
Moving downward
Moving leftward (If press 2
◀
seconds, could access the
factory mode)
Moving rightward(If press 2
▶
seconds, could reset all the
data about user environment)
5
FAQ
Q. What if the screen does not switch?
A. Make sure the first LED on the interface
turned on.
Q. What if the OEM screen does not
appear on the monitor?
A. Make sure that the cables on the back
of the monitor are well connected, and if
the problem persists, contact the
manufacturer for this problem.
USM BENZ9 MNT CABLE
HARETC0291
