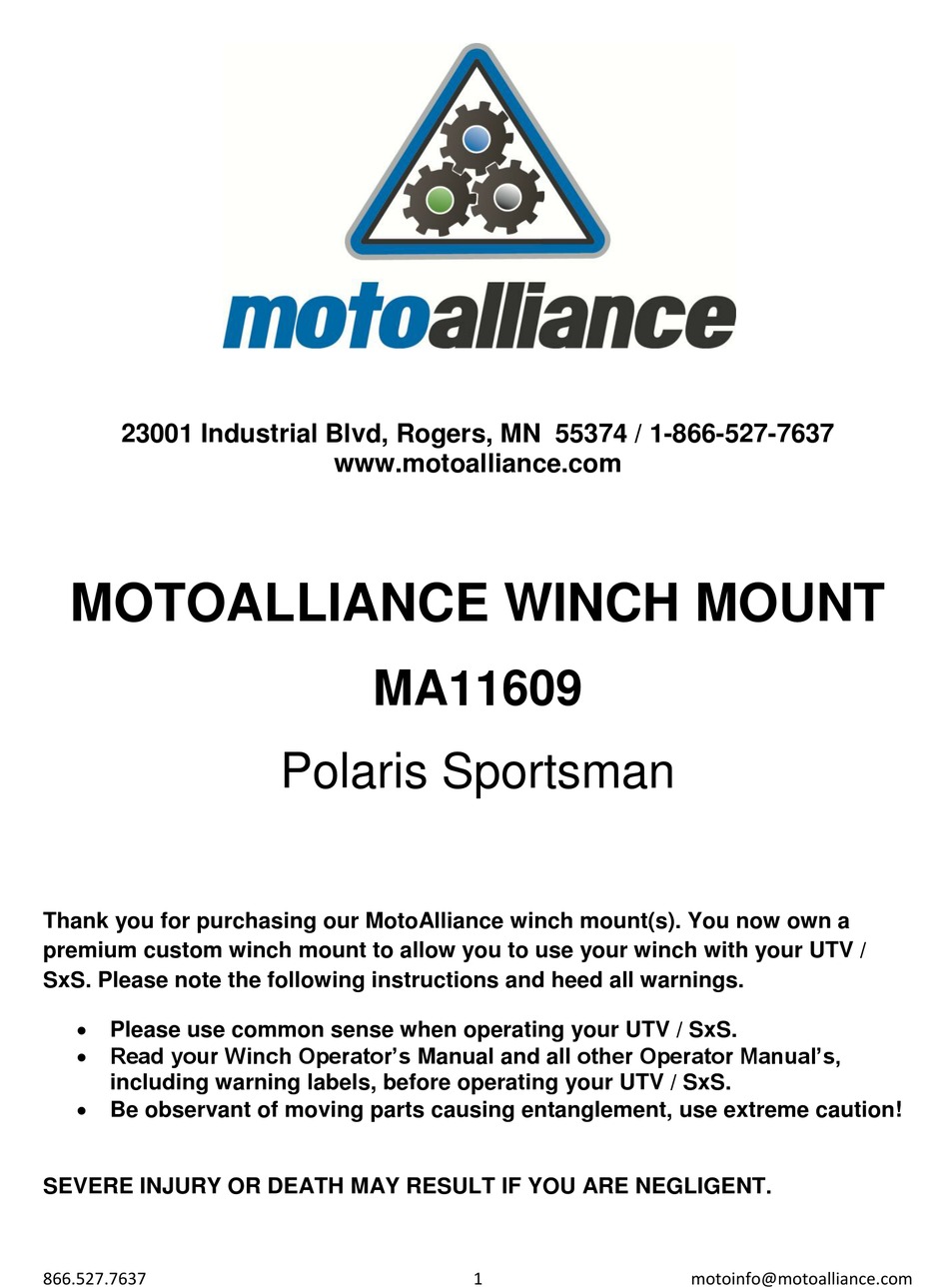

MOTOALLIANCE WINCH MOUNT
Thank you for purchasing our MotoAlliance winch mount(s). You now own a
premium custom winch mount to allow you to use your winch with your UTV /
SxS. Please note the following instructions and heed all warnings.
Please use common sense when operating your UTV / SxS.
Read your Winch Operator's Manual and all other Operator Manual's,
including warning labels, before operating your UTV / SxS.
Be observant of moving parts causing entanglement, use extreme caution!
SEVERE INJURY OR DEATH MAY RESULT IF YOU ARE NEGLIGENT.
866.527.7637
www.motoalliance.com
MA11609
Polaris Sportsman
1
motoinfo@motoalliance.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Motoalliance MA11609
Summary of Contents for Motoalliance MA11609
- Page 1 MA11609 Polaris Sportsman Thank you for purchasing our MotoAlliance winch mount(s). You now own a premium custom winch mount to allow you to use your winch with your UTV / SxS. Please note the following instructions and heed all warnings.
- Page 2 MotoAlliance MA11609 Polaris Sportsman Winch Mount 23001 Industrial Blvd Rogers, MN 55374 866.527.7637 Please verify that all hardware and parts are included in your package. Kit Content: Item Number Description Quantity Bottom Rail Top Rail Fairlead Mount Bracket M8-1.25 x 25mm Bolt (In the winch kit) M8 Washer (In the winch kit) 5/16 x 1.00 Bolt...
- Page 3 MotoAlliance MA11609 Polaris Sportsman Winch Mount 23001 Industrial Blvd Rogers, MN 55374 866.527.7637 1. Assemble the Fairlead Mount Bracket, Top Rail, Bottom Rail and winch as shown - Note: The Top Rail is the piece with chamfered edges 2. Once assembled, pull your cable through the two tie rods such that it runs through the fairlead opening on the "top"...
- Page 4 MotoAlliance MA11609 Polaris Sportsman Winch Mount 23001 Industrial Blvd Rogers, MN 55374 866.527.7637 3. Insert the winch between the two upright frame supports. The rail mount holes will align with four holes on the frame uprights. 4. Insert the four 5/16 bolts and tighten them into the weld nuts of the top and bottom rail 5.
- Page 5 MotoAlliance MA11609 Polaris Sportsman Winch Mount 23001 Industrial Blvd Rogers, MN 55374 866.527.7637 front storage unit, directly above the winch motor. Attach the contactor to the side wall using the included hardware. Remove one of the rubber plugs from the bottom of the storage unit and run the smaller wires to the winch motor.
