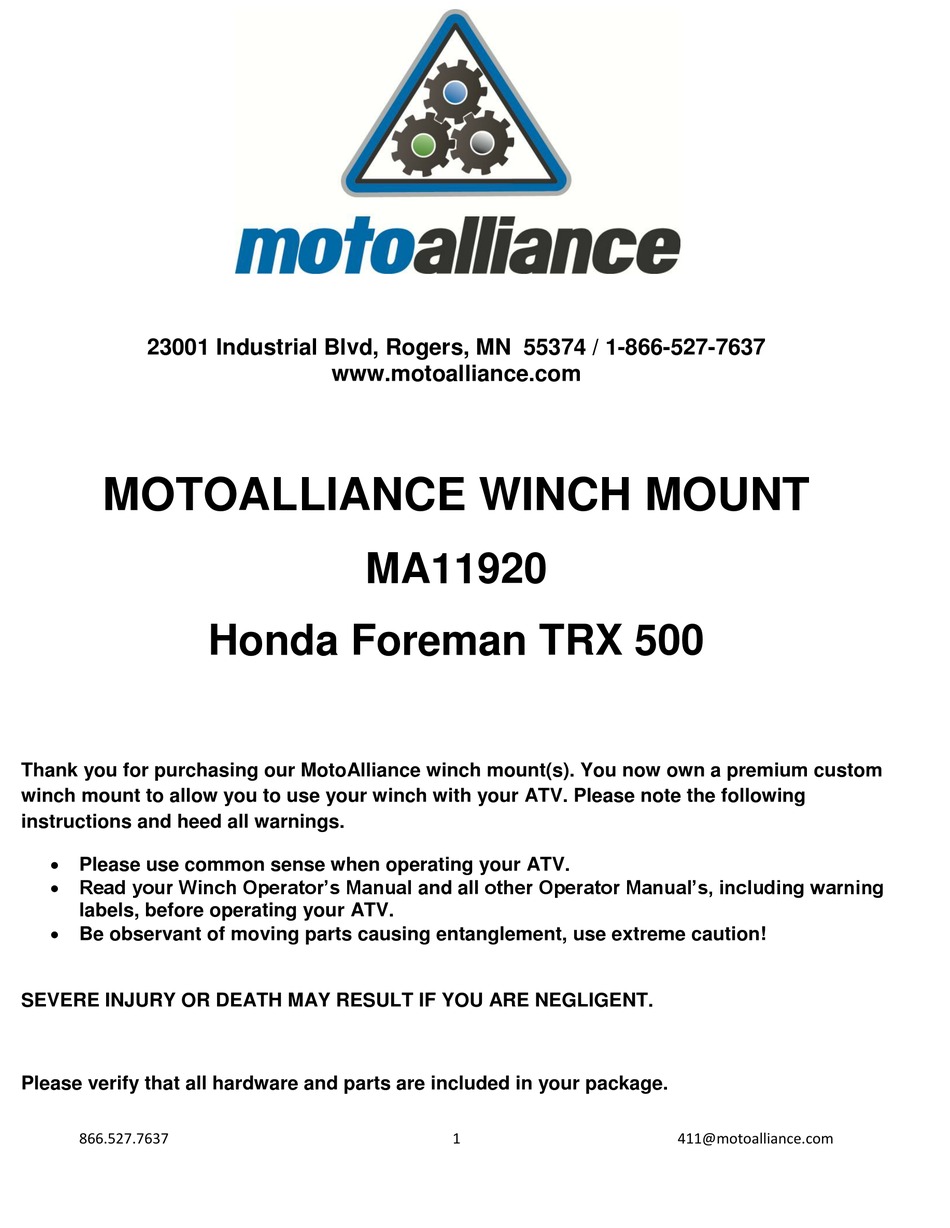

MOTOALLIANCE WINCH MOUNT
Thank you for purchasing our MotoAlliance winch mount(s). You now own a premium custom
winch mount to allow you to use your winch with your ATV. Please note the following
instructions and heed all warnings.
 Please use common sense when operating your ATV.
 Read your Winch Operator's Manual and all other Operator Manual's, including warning
labels, before operating your ATV.
 Be observant of moving parts causing entanglement, use extreme caution!
SEVERE INJURY OR DEATH MAY RESULT IF YOU ARE NEGLIGENT.
Please verify that all hardware and parts are included in your package.
866.527.7637
www.motoalliance.com
MA11920
