Mountup MU9136 Instruction Manual

Speaker stand

Advertisement

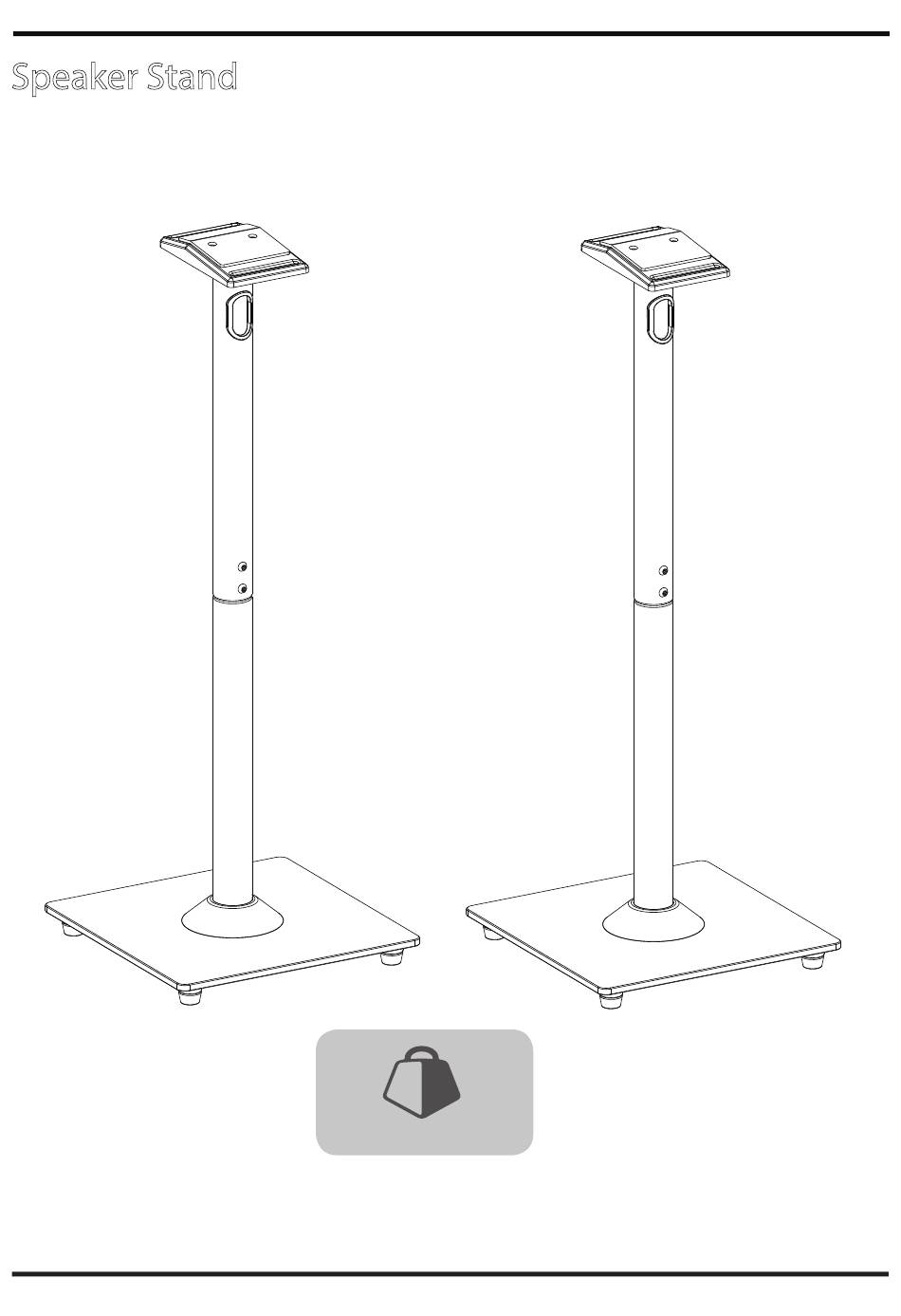

Speaker Stand
Instruction Manual
5kg/11lbs
If you have any questions, please feel free to contact our customer support before returning.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MU9136 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mountup MU9136

  • Page 1 Speaker Stand Instruction Manual 5kg/11lbs If you have any questions, please feel free to contact our customer support before returning.
  • Page 2: Safety Caution

    Safety Caution BEFORE ASSEMBLY ● Layout all components and hardware. Check all parts are included and undamaged. ● Should anybody intends to install or use this mount, please read and understand this manual carefully. ● If you do not understand these instructions or have any doubt about the safety instructions, assembly or use of this product, please contact our customer service.
  • Page 3: Assembly Steps

    ASSEMBLY STEPS STEP 1: Install the foot pads or carpet nails Choose foot pads or carpet nails according to your floor type. Option One: If the stand is placed on wooden, cement, tile or other hard floor, install the foot pad and adjust them to level if the base is not level .
  • Page 4 STEP 2: Install the bottom tube Insert Bottom tube into Base , then fasten Bolt by using Allen key NOTE:D6 Plastic Washer must be placed next to the base to keep it from damage. D6 Plastic Washer D6 Metal Washer Tighten Insert Plastic cover...
  • Page 5 STEP 3:Install the upper tube Insert Upper tube into Bottom tube , then fasten Bolt by using Allen key Tighten...
  • Page 6 STEP 4: Install the aluminium tray Align the speaker holes with the holes on the aluminum tray, then fasten Bolt by using Allen key Tighten Loose and remove the bolts with 4 mm Allen key 1- b Loosen 1- b 1- a...
  • Page 7 STEP 5: Install the speaker Insert the plug into the circular hole and pull it out from the hole under the base. Align the holes of the aluminum tray with the holes of the upper tube, then install Bolt by using Allen key 1- b 1- b Tighten...
  • Page 8: Product Dimensions

    Product Dimensions 31.7" (807mm)
