SECTION 5 - WIRING DIAGRAMS

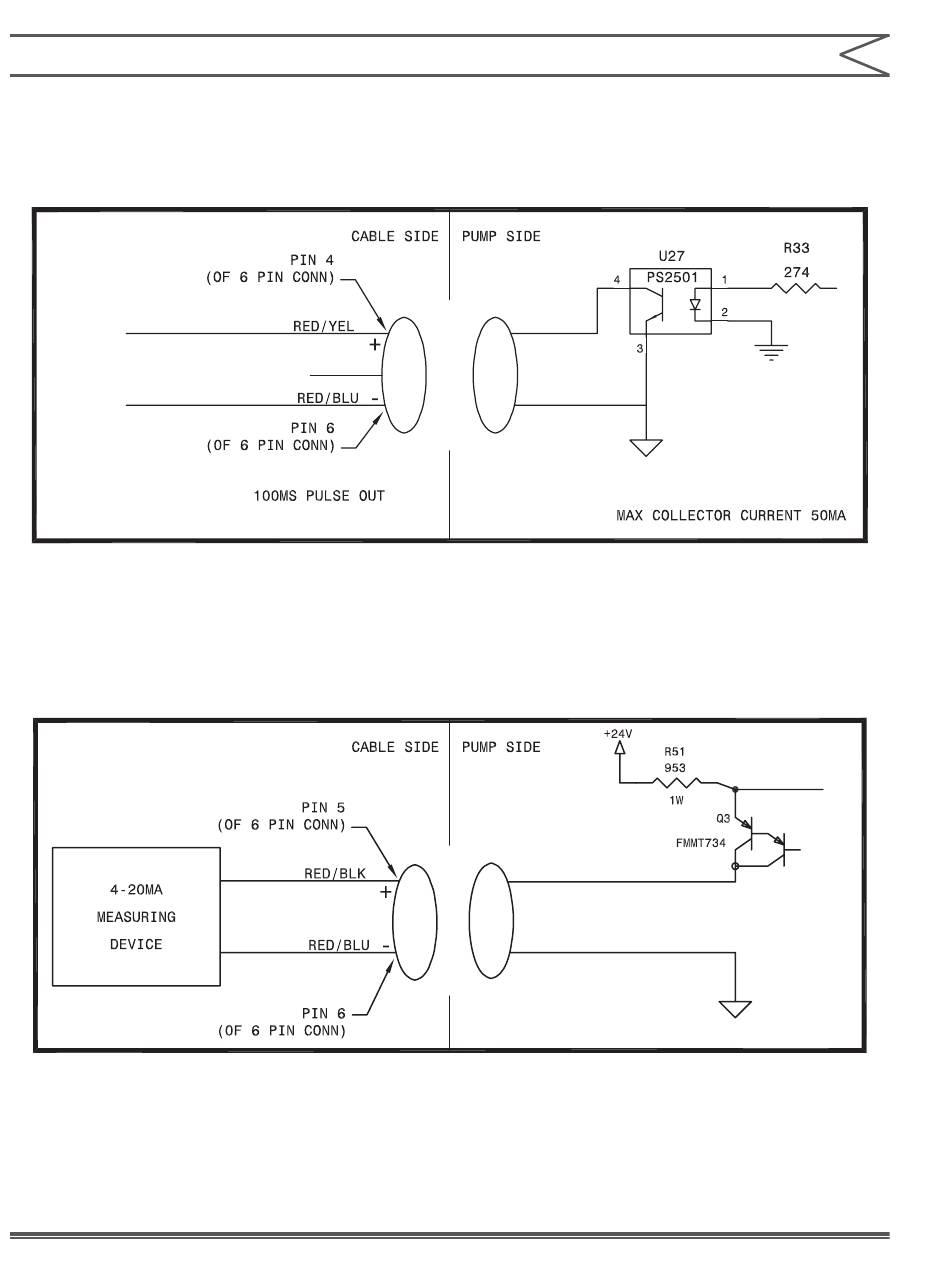

OUTPUT WIRING DIAGRAM
NOTE:
When using a "PULL UP" option use a 10K resistor and a 24VDC source (can be used with Pin 5 of
5 Pin CONN).
37
PULSE
OUTPUT CONNECTION REFERENCE:
4 TO 20 MA
OUTPUT CONNECTION REFERENCE:
