SECTION 2 - INSTALLATION

2.3 TUBING CONNECTIONS

1. Insert tubing through Coupling Nut. Tubing
should enter the smaller end of the Coupling Nut
first, orienting the larger opening of the Coupling
Nut toward the tubing end.
2a. For 1/4" OD tubing: Position the Female
Ferrule so that 1/4" to 3/8" (5-10 mm) of tubing
protrudes from the Female Ferrule. Orient the
raised collar of the Ferrule toward the Coupling
Nut (reference Figure 4).
2b. For 3/8" or 1/2" OD tubing: Position a Female
Ferrule about 1 inch (25 mm) from end of tubing.
Orient the raised collar of the Female Ferrule
toward the Coupling Nut. Then, insert the Male
Ferrule onto the end of the tube, pushing the
tube into the bottom of the groove in the Male
Ferrule. Then slide the Female Ferrule down
the tubing and with your fingers, press tightly
into the Male Ferrule (reference Figure 5).
3. Firmly hand tighten the Coupling Nut onto the
fitting.
Note:
Tightening with pliers may cause the Ferrules
to break.
Coupling Nut
Ferrule-
Female
O-Ring
Fitting

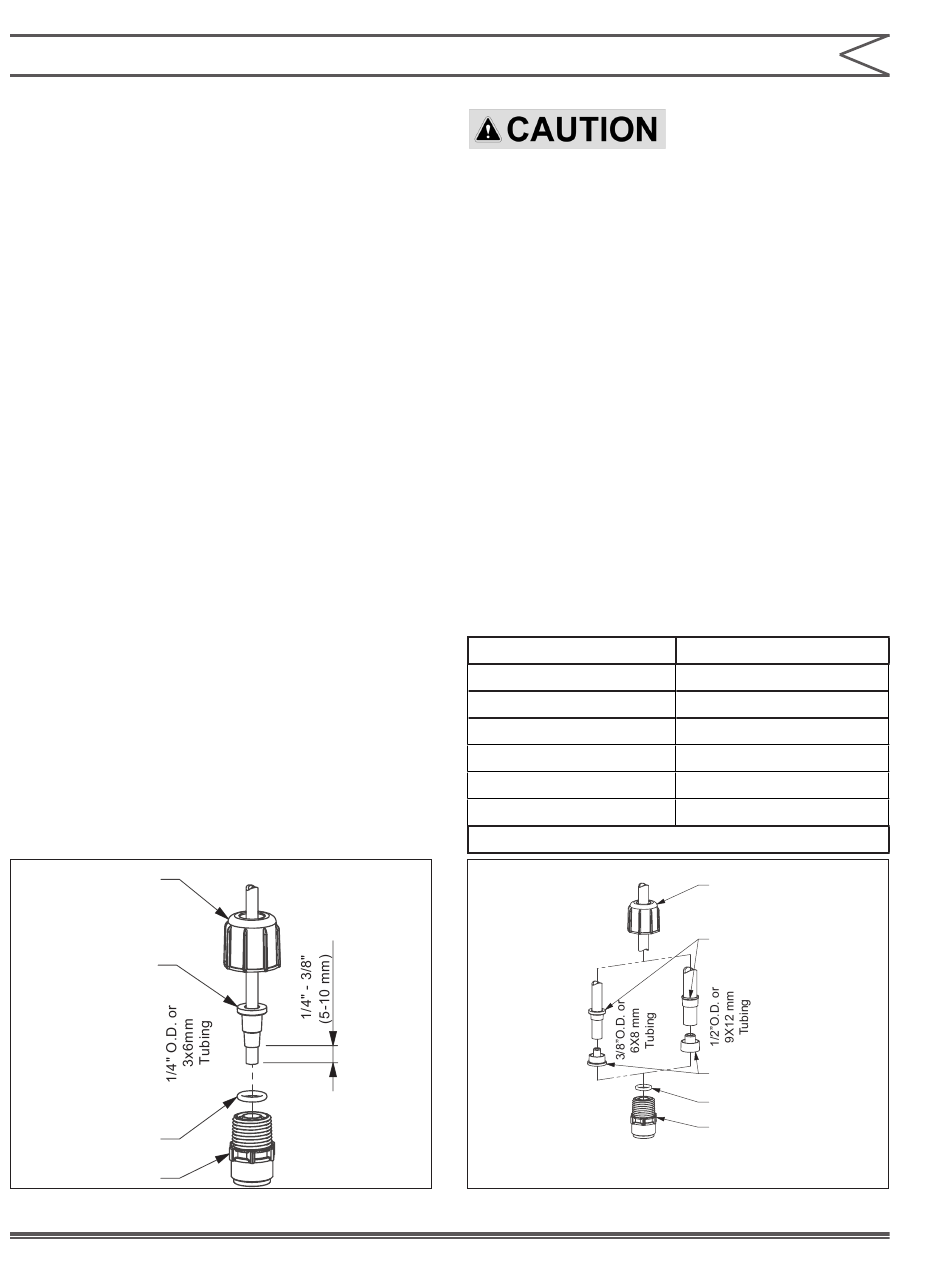

Figure 4
5
A. USE ONLY LMI
TUBING WITH YOUR PUMP, AS THE TUBING IS SPECIFICALLY
DESIGNED FOR USE WITH THE PUMP FITTINGS.
B. DO NOT USE CLEAR VINYL TUBING ON THE DISCHARGE
SIDE OF THE PUMP. THE PRESSURE CREATED BY THE PUMP
CAN RUPTURE VINYL TUBING.
C. BEFORE INSTALLATION, ALL TUBING MUST BE CUT WITH
A CLEAN SQUARE END.
D. VALVE AND HEAD CONNECTIONS FROM THE FACTORY
ARE CAPPED OR PLUGGED TO RETAIN PRE-PRIME WATER.
REMOVE AND DISCARD THESE CAPS OR PLUGS BEFORE
CONNECTING TUBING.
DO NOT USE PLIERS OR PIPE WRENCH ON COUPLING NUTS
OR FITTINGS.
DO NOT REUSE FERRULES. USE ONLY NEW FERRULES.
Replacement Ferrules, and Coupling Nuts are
available as the following kit numbers.
Tube Size
1/2" Tube
3⁄8" Tube
1/2" Tube
3 x 6 mm Tube
6 x 8 mm Tube
9 x 12 mm Tube
*One kit is needed for each end of the tube.
Instruction Manual
TUBING. ALWAYS USE LMI
®
Kit Number
77382
77383
77384
77378
77379
77380
Coupling Nut
Ferrule-
Female
Ferrule-
Male
O-Ring
Fitting
Figure 5
SUPPLIED
®
