Section 5 - Wiring Diagrams - LMI ROYTRONIC EXCEL AD Series Instruction Manual

PIN WIRE
1
2 White
3
4
5 Green-Yellow
PIN WIRE
1 Red-White
2 Red
3 Green
4 Red-Yellow
5
6
USE 5 PIN CABLE
SIGNAL
Remote On-Off
Ground-Return
External Pulse Input
4-20 mA Input
USE 6 PIN CABLE
SIGNAL
Alarm Output or Internal-External indicator
Alarm Return
Remote Internal-External mode
Pulse Output
4-20 mA Output
Ground-Return
Instruction Manual

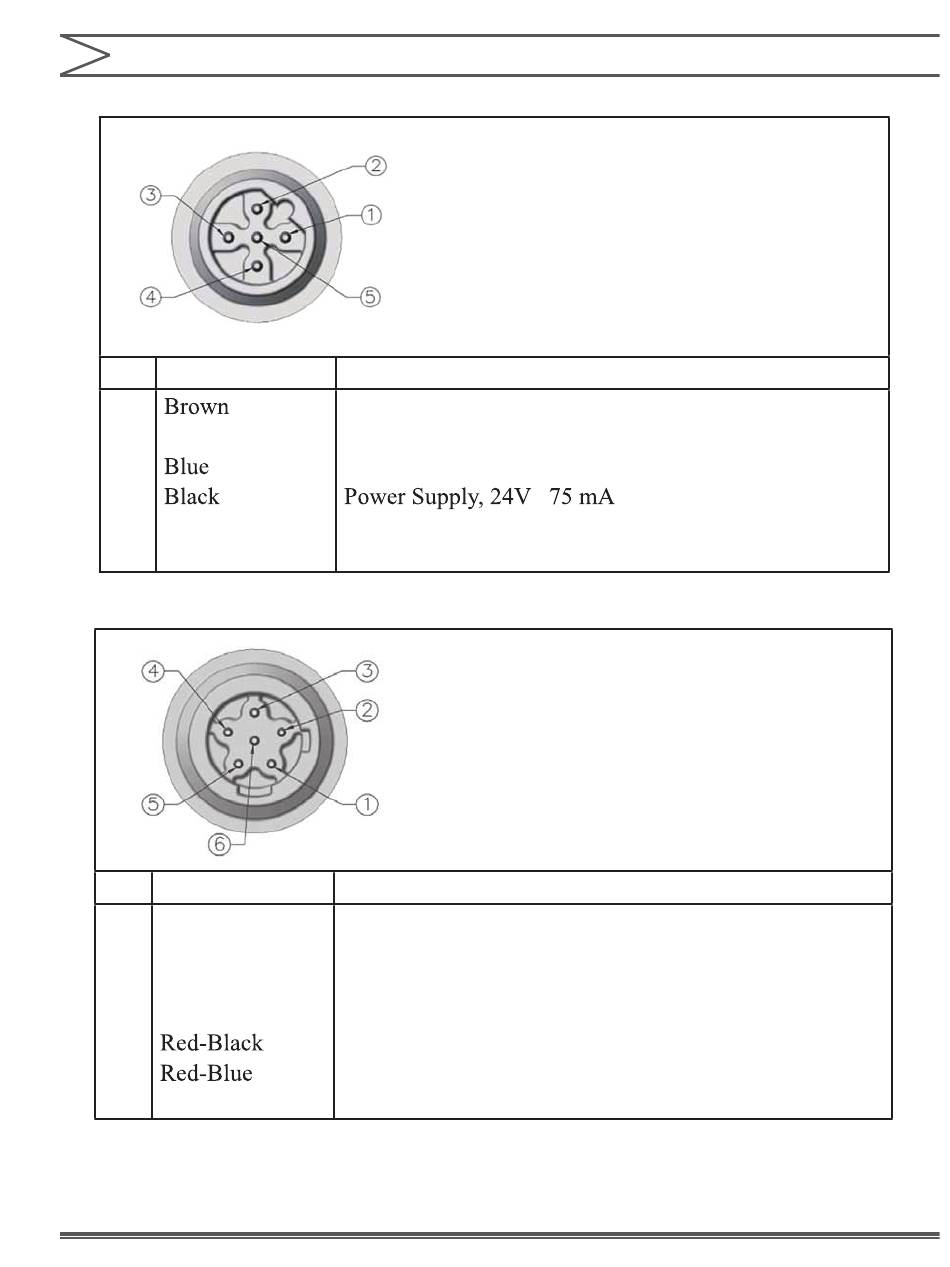

SECTION 5 - WIRING DIAGRAMS

5 PIN CONNECTOR
(LMI P/N 48414)
6 PIN CONNECTOR
(LMI P/N 49035)
32
