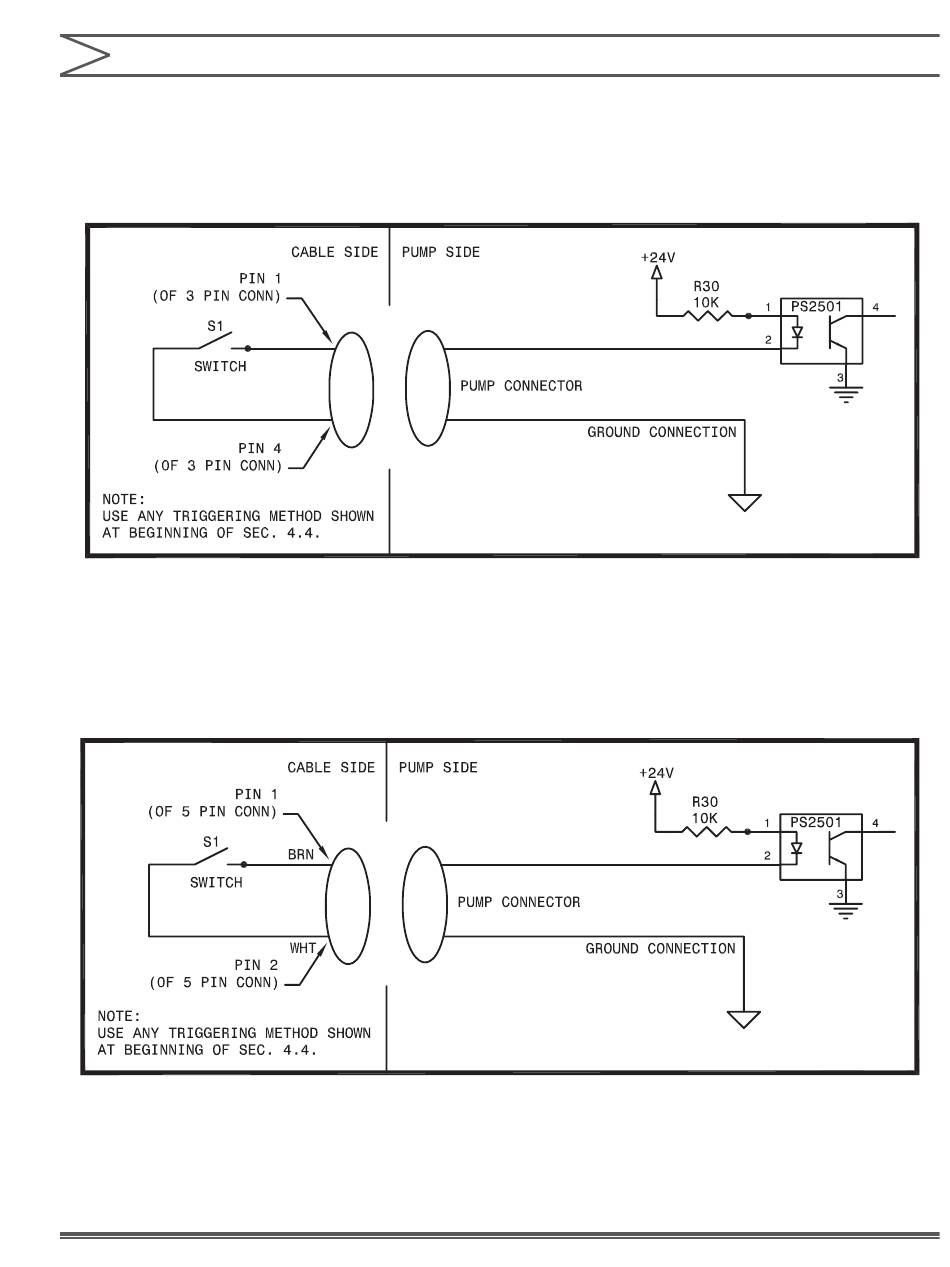

INPUT WIRING DIAGRAM
NOTE:
A Cable cord set for this application is included with an optional LMI
P/N 49246 or a LMI
INPUT CONNECTION REFERENCE:
dual level switch assembly P/N 49249.
®
REMOTE ON-OFF
INPUT CONNECTION REFERENCE:
Instruction Manual
SECTION 5 - WIRING DIAGRAMS
TANK EMPTY
low level switch assembly
®
34
