Drive Parts List - LMI ROYTRONIC EXCEL AD Series Instruction Manual

SECTION 4 - MAINTENANCE

4.7 DRIVE PARTS LIST

Bubble Number
75
80
90
125
130
132
134
136
140
150
155
160
180
185
190
27

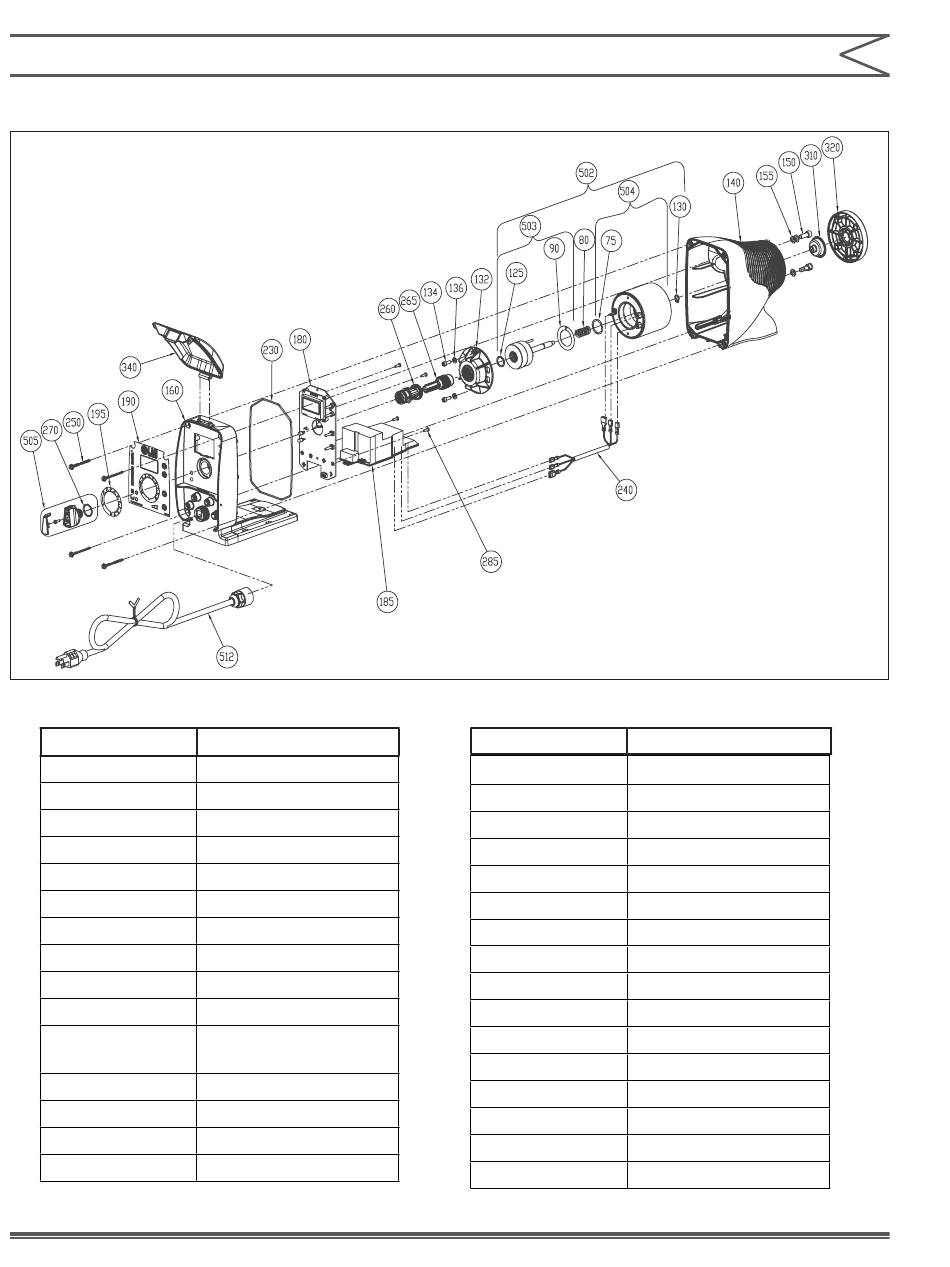

Figure 18.
Description
EPU O-Ring
EPU Return Spring
EPU Shim
Plunger O-Ring
Retaining Ring
Stroke Bracket
Stroke Bracket Screw
Stroke Bracket Washer
Drive Housing
EPU Attachment Bolt
EPU Attachment
Washer
Control Panel
Control Board
Power Board
Nameplate
Table 3. Drive Parts List
Instruction Manual
Drive Parts List
Bubble Number
195
230
240
250
260
265
270
285
310
320
340
502
503
504
505
512
Description
Stroke Dial
Control Panel O-Ring
Wire Harness
Drive Assembly Screws
Female Stroke Shaft
Male Stroke Shaft
Stroke Shaft O-Ring
PCB Attachment Screw
Shaft Seal
Adapter Disk
Clear Cover
EPU Assembly
Plunger Assembly
Pole Piece Assembly
Stroke Knob Assembly
Power Cord Assembly
