- Page 1 Installation and Operation Manual PHOENIX OVEN Stone Hearth Oven Dual Radiant Flame Burners, Gas-Fired Models PHOENIX 4343 PITA OVEN WS-BL-4343-RFG-LR PHOENIX 4355 PITA OVEN WS-BL-4355-RFG-LR WS-BL-4836-RFG-LR PHOENIX 4836 PITA OVEN WOOD STONE CORPORATION 1801 W. Bakerview Rd. Tel +1.360.650.1111 Bellingham, WA 98226 USA Fax +1.360.650.1166...
-
Page 2: Table Of Contents
... . Interlock Diagram ... . . Limited Warranty M0030.10 JANUARY 2020 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. +1.360.650.1111 E-MAIL An ongoing program of product improvement may woodstone-corp.com... -
Page 3: Dual Burner Phoenix Oven

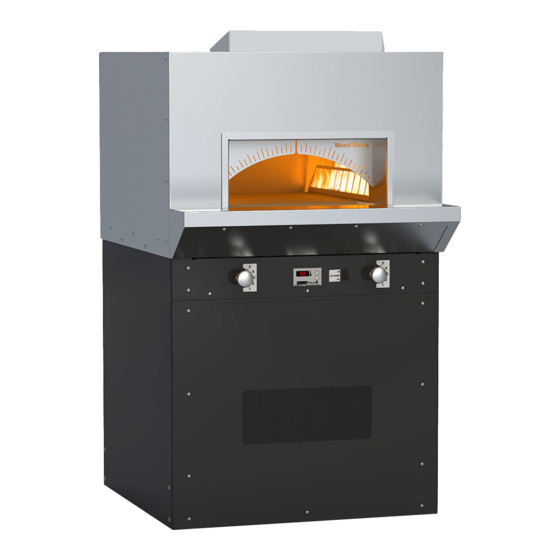

DUAL BURNER PHOENIX OVEN Dual Burner Phoenix Installation and Operation Manual INSTALLATION AND OPERATION MANUAL FOR THE WOOD STONE DUAL BURNER PHOENIX NATURAL GAS OR PROPANE FUELED DUAL BURNER STONE HEARTH OVEN WS-PX-4343-RFG-LR, WS-PX-4355-RFG-LR AND WS-PX-4836-RFG-LR ADDITIONAL COPIES AVAILABLE UPON REQUEST Shown: WS-PX-4343-RFG-LR M0030.10 JANUARY 2020... -
Page 4: Cautions & Warnings
CAUTIONS & WARNINGS Dual Burner Phoenix Installation and Operation Manual INSTALLATION AND OPERATION MANUAL FOR THE WOOD STONE PHOENIX NATURAL GAS (NG) OR PROPANE (LP) FUELED DUAL BURNER STONE HEARTH OVEN WS-PX-4343-RFG-LR-(NG OR LP), WS-PX-4355-RFG-LR-(NG OR LP) ADDITIONAL COPIES AVAILABLE UPON REQUEST RETAIN THIS MANUAL FOR FUTURE REFERENCE Additional copies of this manual are available at woodstone-corp.com. - Page 5 This appliance should be serviced by qualified personnel at least every 12 months, or sooner if heavy use is expected. SAVE THE INSTRUCTIONS M0030.10 JANUARY 2020 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. +1.360.650.1111 E-MAIL An ongoing program of product improvement may woodstone-corp.com...
- Page 6 Maximum gas inlet pressure (provided) to route gas and electrical 34 mbar (1/2 psi or 14 inches W.C.) supplies. Refer to data plate when installing. M0030.10 JANUARY 2020 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. +1.360.650.1111 E-MAIL An ongoing program of product improvement may woodstone-corp.com...
- Page 7 Maximum gas inlet pressure (provided) to route gas and electrical 34 mbar (1/2 psi or 14 inches W.C.) supplies. Refer to data plate when installing. M0030.10 JANUARY 2020 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. +1.360.650.1111 E-MAIL An ongoing program of product improvement may woodstone-corp.com...
- Page 8 Maximum gas inlet pressure (provided) to route gas and electrical 34 mbar (1/2 psi or 14 inches W.C.) supplies. Refer to data plate when installing. M0030.10 JANUARY 2020 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. +1.360.650.1111 E-MAIL An ongoing program of product improvement may woodstone-corp.com...
-
Page 9: Px-4343-Lr
CRANE. fig. 1 The oven arrives with Pickeyes attached. When craning a Wood Stone oven, use a Spreader Bar with a two-legged sling rigged on each end. The spreader bar should be of a sufficient length to keep the sling from contacting the oven, and oriented as shown in fig 1. -
Page 10: Installation Clearances
CLEARANCES 1. The Wood Stone Phoenix oven must have a minimum 25 mm (1") clearance to combustibles from all sides, and 152 mm (6") clearance to combustibles from the top. If building materials will contact the oven, they must be completely non-combustible. -
Page 11: Venting
The following are the manufacturer’s recommendations for venting Wood Stone Phoenix model ovens. It is never appropriate to use “B vent” in any part of an exhaust system connected to a Wood Stone oven. All duct material must be manufactured to the specifications of a grease duct. -
Page 12: Flue Adapter Installation
Then fasten with the Underside of Flue Adapter showing supplied screws. where Ceramic Sealing Compound should be applied M0030.10 JANUARY 2020 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. +1.360.650.1111 E-MAIL An ongoing program of product improvement may woodstone-corp.com Bellingham, WA 98226 USA +1.360.650.1166... -
Page 13: Lifting The Oven
USING THE OPTIONAL LIFTING SYSTEM An optional Lifting System is available from Wood Stone to facilitate tipping the oven body onto its back or side (as shown below). When turned on its side, the upper oven portion of Bistro or Phoenix models 4343, 4355 and 4836 will be approximately 32 inches wide. - Page 14 LIFTING THE OVEN Dual Burner Phoenix Installation and Operation Manual 10. Once the oven is on the other side of the passageway, attach strap to the clevises at the Lifting Holes on the Crosspiece and, with a gantry crane, lift the oven straight Remove pallet jack.
-
Page 15: Exploded Parts Diagram
Flame Guards Discard once removed.) Rear Panel Control Box Front Panel Side Panel Toe Kick M0030.10 JANUARY 2020 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. +1.360.650.1111 E-MAIL An ongoing program of product improvement may woodstone-corp.com Bellingham, WA 98226 USA +1.360.650.1166... -
Page 16: Assembly
Carriage bolts 9.5 x 25mm (3/8 x 1") 3030 only: 9.5 x 19mm (3/8 x 3/4") M0030.10 JANUARY 2020 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. +1.360.650.1111 E-MAIL An ongoing program of product improvement may woodstone-corp.com... - Page 17 M0030.10 JANUARY 2020 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. +1.360.650.1111 E-MAIL An ongoing program of product improvement may woodstone-corp.com...
- Page 18 M0030.10 JANUARY 2020 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. +1.360.650.1111 E-MAIL An ongoing program of product improvement may woodstone-corp.com Bellingham, WA 98226 USA +1.360.650.1166...
- Page 19 Mantle. Install the cover plate using the 4 screws provided. Mantle Faceplate Cover Screws M0030.10 JANUARY 2020 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. +1.360.650.1111 E-MAIL An ongoing program of product improvement may woodstone-corp.com...
- Page 20 Lower tab of Burner Guard fits into the front of the burner opening M0030.10 JANUARY 2020 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. +1.360.650.1111 E-MAIL An ongoing program of product improvement may woodstone-corp.com...
-
Page 21: Utility Connections
National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.2, as applicable. An Electrical Diagram is provided inside the bottom cover of the Control Box, and at the end of this manual. M0030.10 JANUARY 2020 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. - Page 22 Wood Stone recommends that the Phoenix be equipped with a manual, individual shutoff valve, located between the oven and the main gas supply, and that this shutoff valve (supplied by others) be left readily accessible. Wood Stone also recommends that inspection and maintenance of the burners and gas piping connections of this appliance be performed at regularly scheduled intervals and only by professional gas appliance service agencies.
- Page 23 The oven should be bolted to the floor using the holes provided at the base of the stand. NOTE: REAR PANEL MUST BE INSTALLED FOR THE PROPER FUNCTIONING OF THE OVEN. M0030.10 JANUARY 2020 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. +1.360.650.1111...
-
Page 24: Storage Box Installation
Storage Box. Fasten using (2) provided 1/4-20 screws (c). 3 Storage box connector 2 Storage box 1 Toe kick (w/ perforations) M0030.10 JANUARY 2020 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. +1.360.650.1111 E-MAIL An ongoing program of product improvement may woodstone-corp.com... -
Page 25: Controller
Use this switch to disable one of the at right). burners (specify which burner will be disabled at time of order). M0030.10 JANUARY 2020 WOOD STONE CORPORATION info@woodstone-corp.com 1801 W. Bakerview Rd. +1.360.650.1111 E-MAIL An ongoing program of product improvement may woodstone-corp.com... -
Page 26: Initial Start-Up
NOTE: Small “crazing” cracks will occur with normal heating and cooling. They will not affect the performance or durability of the oven. If cracks of 3 mm (1/8") wide or more develop, contact Wood Stone for evaluation. FLAME HEIGHT INDICATOR... -
Page 27: Oven Operation
OVEN INTERIOR Wood Stone recommends the use of long-handled brushes for sweeping up surface debris that will accumulate on the floor of the oven during use. Use a natural fiber brush—always brushing away from the radiant burner well. For deeper cleaning, use a brass bristled brush. -
Page 28: Daily Maintenance
GAS-FIRED OVEN THERMAL CLEANING If a Wood Stone gas-fired oven is operated at low temperatures below 274 °C (525 °F), you may notice a buildup on the oven floor. If you operate the oven below 232 °C (450 °F), you may also notice some buildup on the interior walls and/or ceiling of the oven. -
Page 29: Troubleshooting Guide
Check that any wall switches external to the oven that control oven power are turned on. Check that any interlocks external to the oven are turned on. 2. If controller still does not turn on, please contact Wood Stone for assistance. Flame does not light 1. -
Page 30: Electrical Diagrams
ELECTRICAL DIAGRAMS 120 VAC ELECTRICAL DIAGRAM Dual Burner Phoenix Installation and Operation Manual 100-120 VAC XFMR Blue CB 4A Yellow Left Radiant White 100-120 VAC 50/60Hz wired by others Junction Temperature Controller Thermo Brown Burner Couple Control Panel Type 4 Disable Right Radiant... -
Page 31: Interlock Diagram
Any interruption of the power to the oven will cause the oven (including all burners and pilots) to shut off, and it will be necessary to restart the oven by pressing the start switch once power is restored. For additional interlock options, see the Wood Stone Interlock Options supplement in the Manuals section on the website, woodstone-corp.com, or contact your distributor for additional information. -
Page 32: Limited Warranty
LIMITATIONS OF LIABILITY In the event of warranty claim or otherwise, the sole obligation of Wood Stone shall be the repair and/or replacement, at the option of Wood Stone, of the appliance or component or part thereof. Such repair or replacement shall be at the expense of Wood Stone with the exception of travel over 100 miles or two hours, overtime, and holiday charges which shall be at the expense of the purchaser.
