Benchmark Games BLASTER Manual page 9

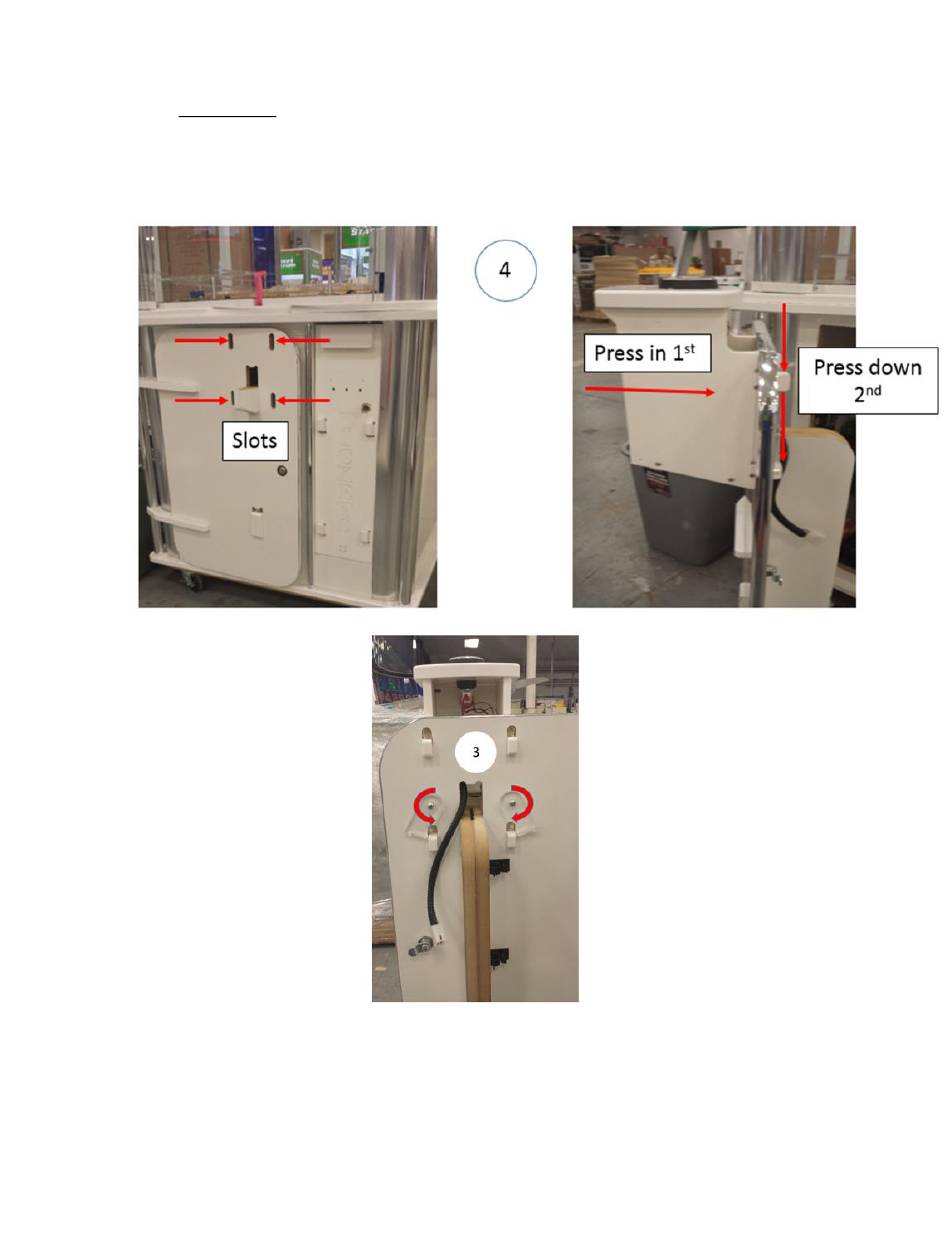

- Take button assembly, with coin mech included, placing the hooks in the slots shown in ④ and
press in and down. Place the black wire through the hole, and twist the safeties until the lip of
the safety is toughing the hook of the button assembly. Connect the black tubing from the
button assembly, to a similar black wire located in the cabinet. Secure the black tubing to the
door using the black clamps on the cabinet door.
-
- Remove any shipping foam that might still be holding any parts.
- Marquee Assembly
- The marquee of Blaster can be easily disconnected and removed from the top of the structure
to be able to maneuver through door ways.
