Benchmark Games BLASTER Manual page 15

o The set without the hook ends will be placed on top of the tubing, securing the top of the
Blasters.

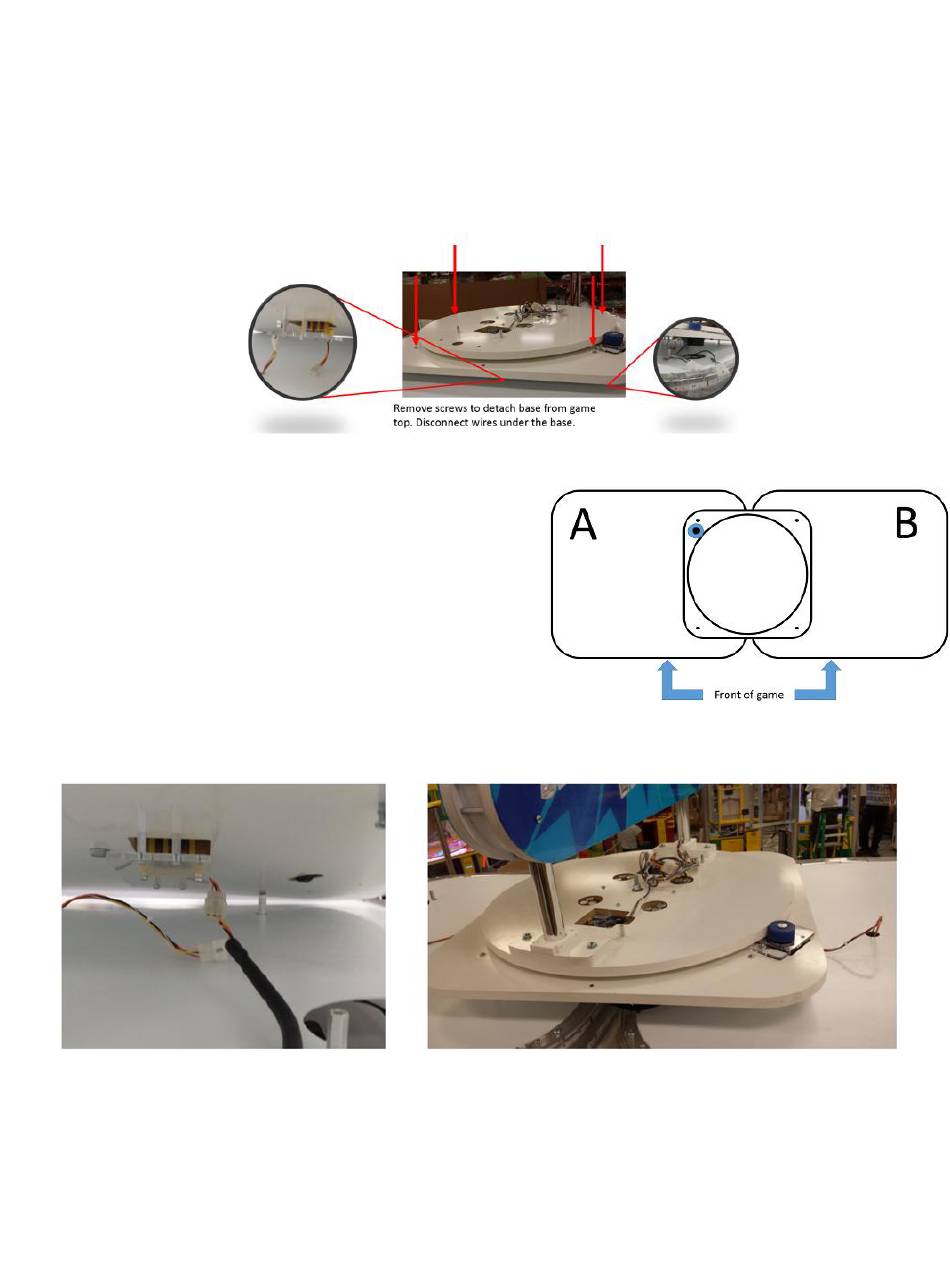

Game Header Placement
- On the top of the game the base of the header needs to be moved so that the header will sit in the
middle of the two games. Unscrew the four screws that are holding the base in place. And disconnect
the wires under the base.
- The base needs to be rotated so that the friction motor sits to the back/left, if you are standing in front
of the game.
- Take the Motor extension wire (green, blue, black, and
purple) and the commutator extension (yellow, orange,
and black) and connect them to the ports from the
Blaster to the base of the header.
- To secure the base to the two games, use the screws
that are located in the packet and screw in two through
the base into the two right side stand-offs of Game A and the two left stand-offs of Game B.
15
