Benchmark Games BLASTER Manual page 16

- Place the header on the base, as shown on page 10.
Cable Connection
- Go to the back of both the games, and take off both back doors
of the lower cabinets.
- The router board, located on the control panel on page 17,
should have a long 485 cable attached to it with zip ties.

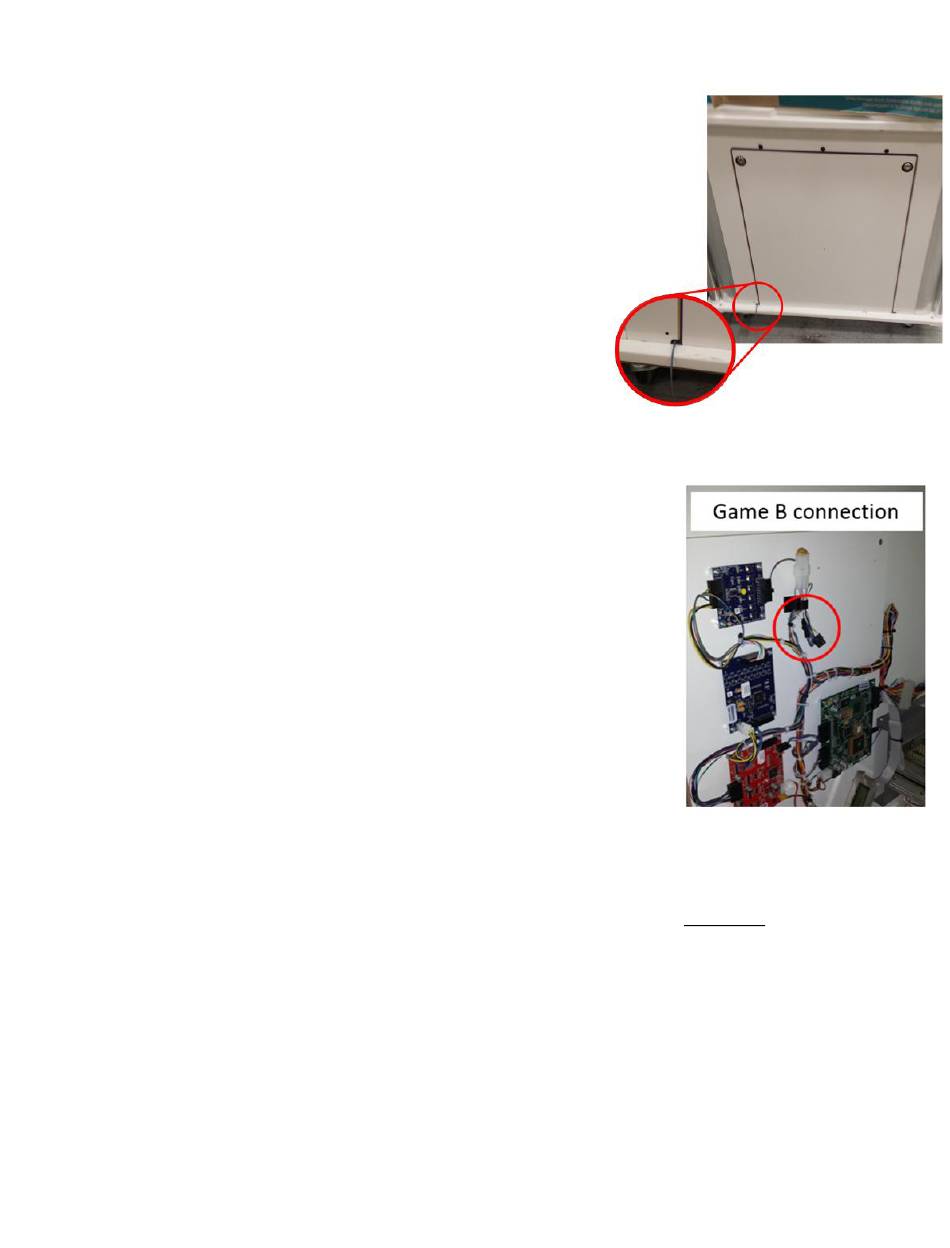

- Cut off zip ties and run the cable to Game B. There are slots on
the bottom of the door where the cable is meant to run to allow
the ability to continue to close and lock the back door.
- There will be a 485 connection on the control panel of Game B in the upper/right corner. Detach the
connection and attach the port to the wire that is running from Game A.
- Plug in both games and make sure all is working correctly.
- Place back doors to back of games.
COMBINING GAMES FROM DIFFERENT PURCHASES
- Hopefully you have all the extra parts on the table on page 14. First thing is to combine the games as
shown above in section "Game Placement".
- The Router board will go in position as on the control panel shown on page 18 IN GAME A. Screw the
four standoffs in the four holes and mount the board to the standoffs using the four ¼" screws that
came with the standoffs.
- Take the 485 connection that is shown in the red circle, in the picture located to the right and up.
- Break the connection and plug the female connector into the router board in port 1. Take the male
connector and attach the Router Board 485 adaptor and plug that into port 2 of the router board.
16
