SSL Live Installation Information

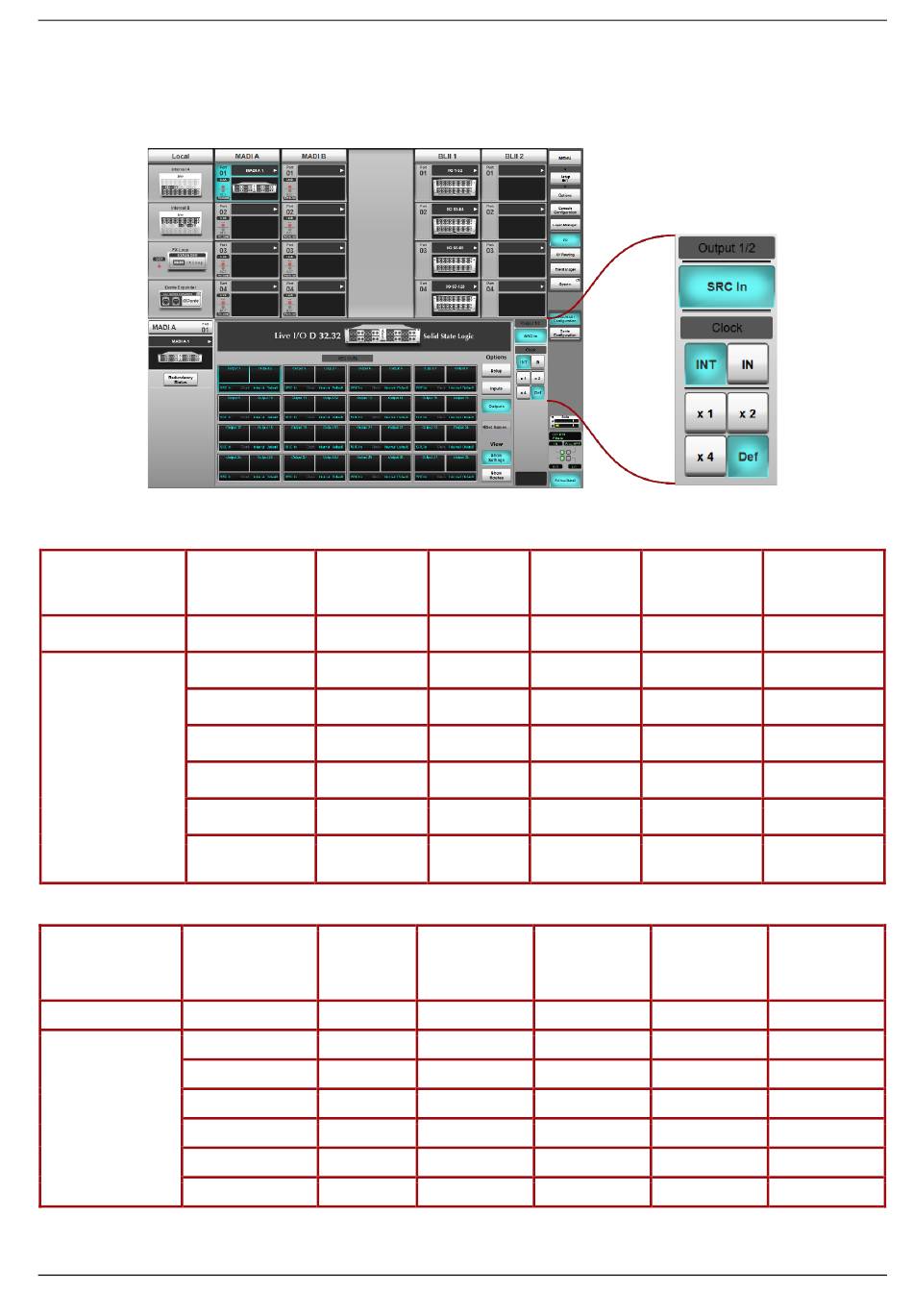

For inputs, you will be presented with a single SRC In button to the right middle of the screen for the
selected port. The console supports the input rates listed in the Input fs column in the table below
and will convert the incoming audio to 96 kHz (or 48 kHz).
The table below also shows the sample rates available for AES/EBU outputs. There are some
additional controls for output ports, as shown below:
Supported Sample Rates at 96 kHz
SRC
Clock Corresponding
Source
INT (Console)
IN
(Corresponding
Input AES Pair)
Supported Samples Rates at 48 kHz
SRC
Clock Corresponding
Source
INT (Console)
IN
(Corresponding
Input AES Pair)
www.solidstatelogic.com
AES/EBU AES/EBU
Output fs:
Input fs SRC Out
- 96 kHz
44.1 kHz 96 kHz
48 kHz 96 kHz
88.2 kHz 96 kHz
96 kHz 96 kHz
176.4 kHz 96 kHz
192 kHz 96 kHz
AES/EBU AES/EBU
Output fs:
Input fs SRC Out
- 48 kHz
44.1 kHz 48 kHz
48 kHz 48 kHz
88.2 kHz 48 kHz
96 kHz 48 kHz
176.4 kHz 48 kHz
192 kHz 48 kHz
AES/EBU AES/EBU
Output fs: Output fs:
SRC In x1 SRC In x2
48 kHz 96 kHz
44.1 kHz 88.2 kHz
48 kHz 96 kHz
44.1 kHz 88.2 kHz
48 kHz 96 kHz
44.1 kHz 88.2 kHz
48 kHz 96 kHz
AES/EBU AES/EBU
Output fs: Output fs:
SRC In x1 SRC In x2
48 kHz 96 kHz
44.1 kHz 88.2 kHz
48 kHz 96 kHz
44.1 kHz 88.2 kHz
48 kHz 96 kHz
Not Supported Not Supported Not Supported Not Supported
Not Supported Not Supported Not Supported Not Supported
AES/EBU AES/EBU
Output fs: Output fs:
SRC In x4 SRC In Def
192 kHz 96 kHz
176.4 kHz 88.2 kHz
192 kHz 96 kHz
176.4 kHz 88.2 kHz
192 kHz 96 kHz
176.4 kHz 88.2 kHz
192 kHz 96 kHz
AES/EBU AES/EBU
Output fs: Output fs:
SRC In x4 SRC In Def
192 kHz 48 kHz
176.4 kHz 44.1 kHz
192 kHz 48 kHz
176.4 kHz 44.1 kHz
192 kHz 48 kHz
