SSL Live Installation Information

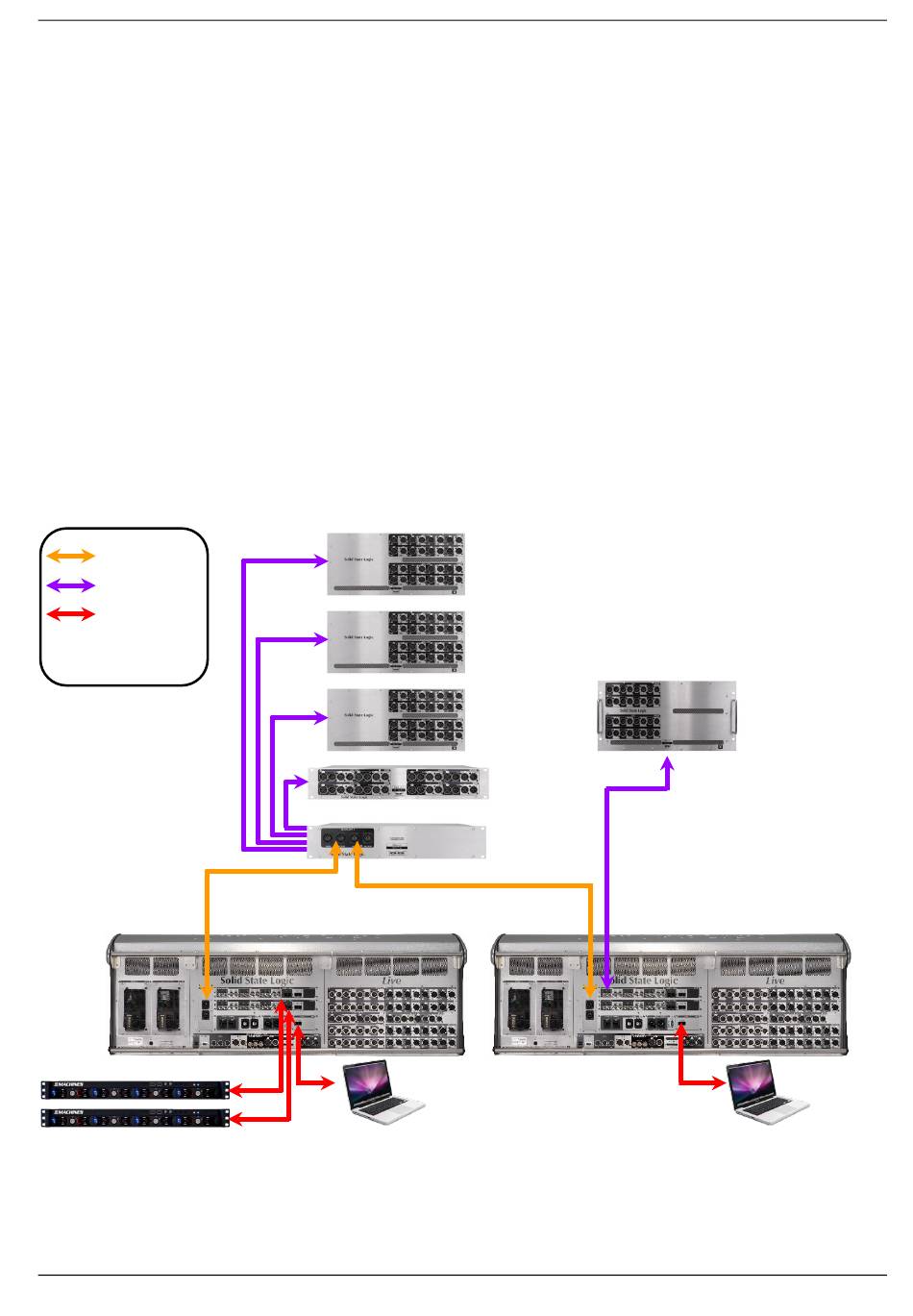

Dual Console System with Blacklight from each console

Two L550 Control Surfaces (FOH and Monitors) shown to provide 32 analogue IO and 16 AES IO at
the consoles, 16 MADI ports plus MADI FX Loop.
1 pair of Blacklight II connections provides 256 channels to/from stage using fibre up to <300m
(quality cables, connections and no intermediate connections).
FOH Console has redundant Blacklight II Fibre connections to A port of the BL II.D Blacklight MADI
Concentrator.
Monitor Console redundant Blacklight II Fibre connections to B port of the BL II.D Blacklight MADI
Concentrator.
FOH console controls the Mic Amp Gain, Monitor console uses Gain Sharing to adjust local levels.
1 off BLII.D Blacklight II MADI concentrator provides 4 redundant on-stage MADI ports connected
to...
3 off additional I.32 stageboxes provide an additional 96 Mic/Line inputs
1 off additional D 32.32 AES boxes provide 32 AES digital IO
Coaxial MADI connected IO
1 off ML O.32 stagebox provides 32 line outputs on stage from Monitor console
Total remote IO of 96 Mic/Line Inputs, 32 Line Outputs, 32 AES IO, 36 GP inputs, 30 GP Outputs
Blacklight Fibre
up to 250m
Coaxial MADI
up to 75m
Fibre MADI
up to 250m
Redundant cabling not
shown for clarity
FOH Console
www.solidstatelogic.com
ML I.32
ML I.32
ML I.32
D 32.32
BLII.D
Monitor Console
FX Loop
ML O.32
FX Loop
