Environmental (Applicable to all console models)

Temperature
Operating: +1 to 40 °C *
Vibration Random vibration test as per BS EN 60068-2-64:2008, Test Fh and in
accordance with ETSI E300-019-2-2 V2.3.1 (2013-04), Table 6. Specification of
environmental tests; Transportation
* Note that the addition of dust guards will increase the internal temperature of the console by
several degrees. SSL recommends that if dust guards are fitted the console should not be operated in
an external ambient temperature in excess of 30 °C.

Typical Installation Diagrams

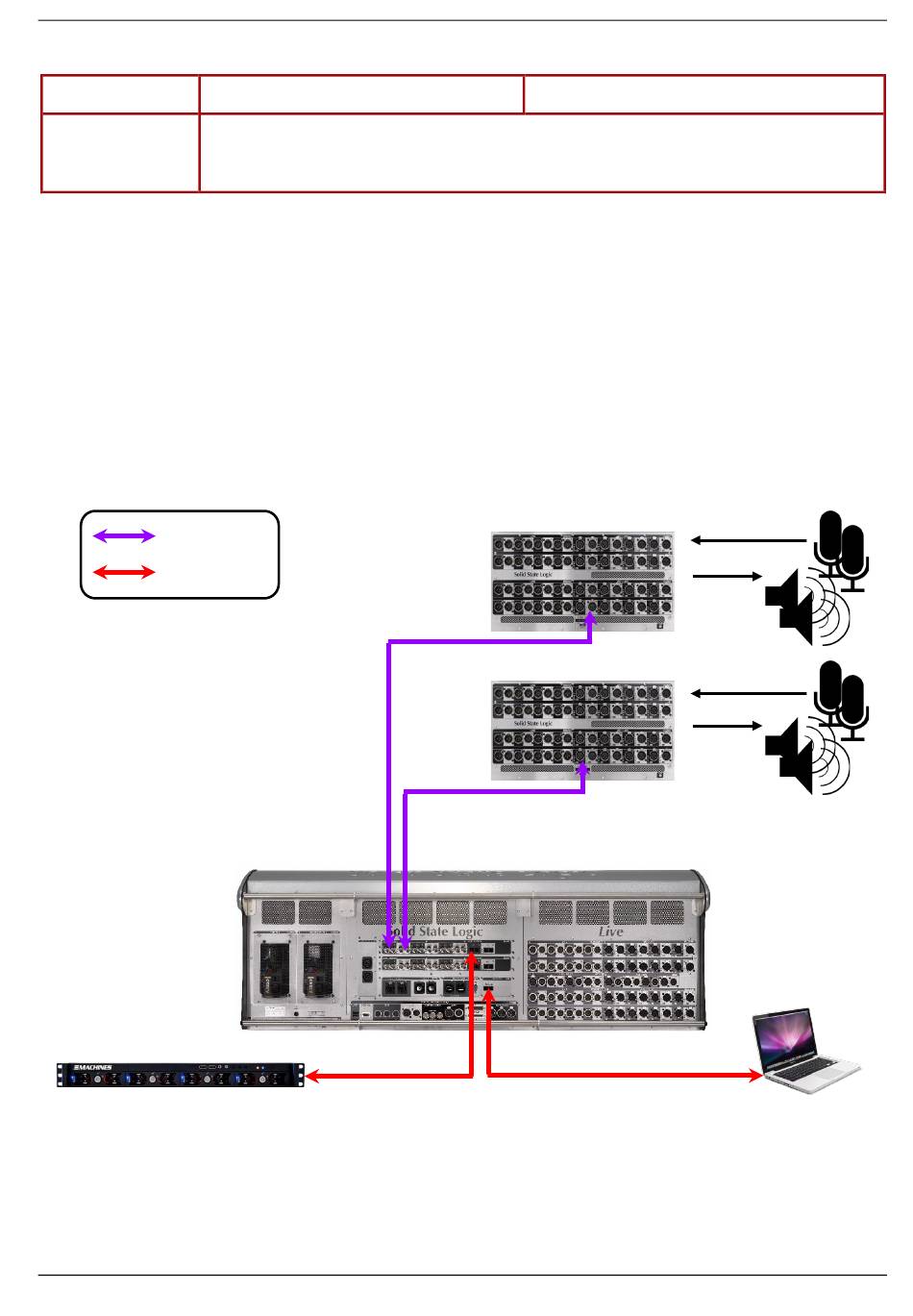

Simple Single System

L550 Control Surface shown provides 32 analogue IO, 16 AES IO, 16 MADI ports plus MADI FX Loop
at FOH position.
2 off ML 32.32 stageboxes provide 64 Mic/Line inputs and 64 line outputs on stage.
Coaxial
Fibre MADI
Recorder
Additional/different MADI stageboxes can be connected as required.
www.solidstatelogic.com
Storage: -20 to 50 °C
ML 32.32 Stagebox 1
ML 32.32 Stagebox 2
Console
32 Mic/Line
32 Line
Out
32 Mic/Line
32 Line
Out
FX Loop
