SSL Live Installation Information

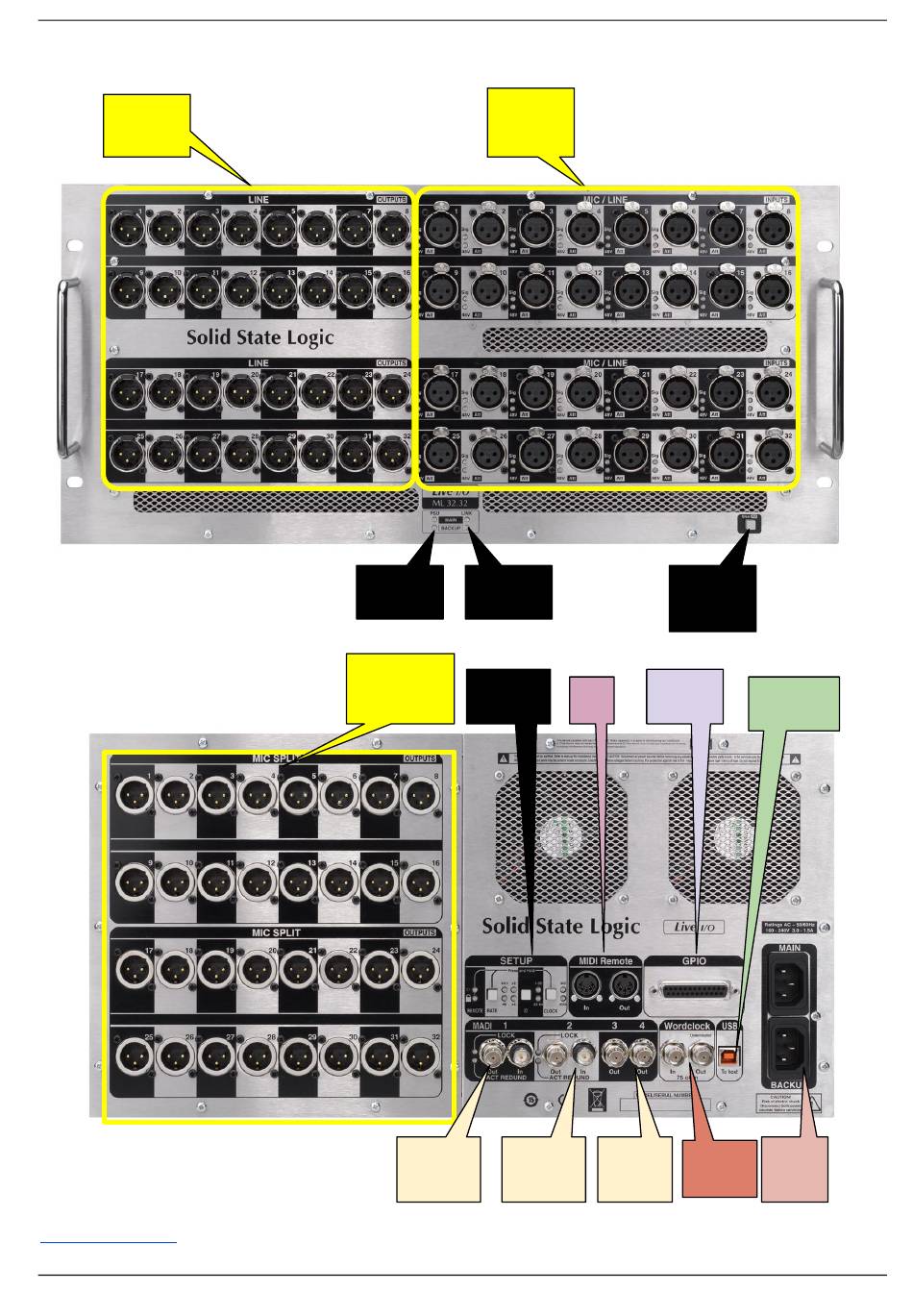

ML 32.32 5U Mic/Line Stagebox

Front
Analogue
Line OP 1-32
*4
Rear
All MADI Outputs carry common data.
MADI outputs 3 & 4 can be used as MADI
output only streams for other devices
Connections Key
www.solidstatelogic.com
Analogue
Mic/Line IP
1-32
*4
MADI Link
PSU Status
Status
Optional
Analogue Mic Local Setup
Split Outputs Controls
*4 *20
Primary Redundant
MADI MADI
Coaxial Coaxial
*2
Clear
Attention
LEDs
GPIO
MIDI
In & Out
*15b
*19a
Additional
Local
MADI
Wordclock
outputs
*13
*2 *2
Maintenance
USB Port
*24
Mains
Power
Inlet
*1
