L100 Console (Includes L100 Plus Model); L100 Connections - Front; L100 Console Connections - Rear - Solid State Logic Live Installation Manual

SSL Live Installation Information

L100 Console (Includes L100 Plus Model)

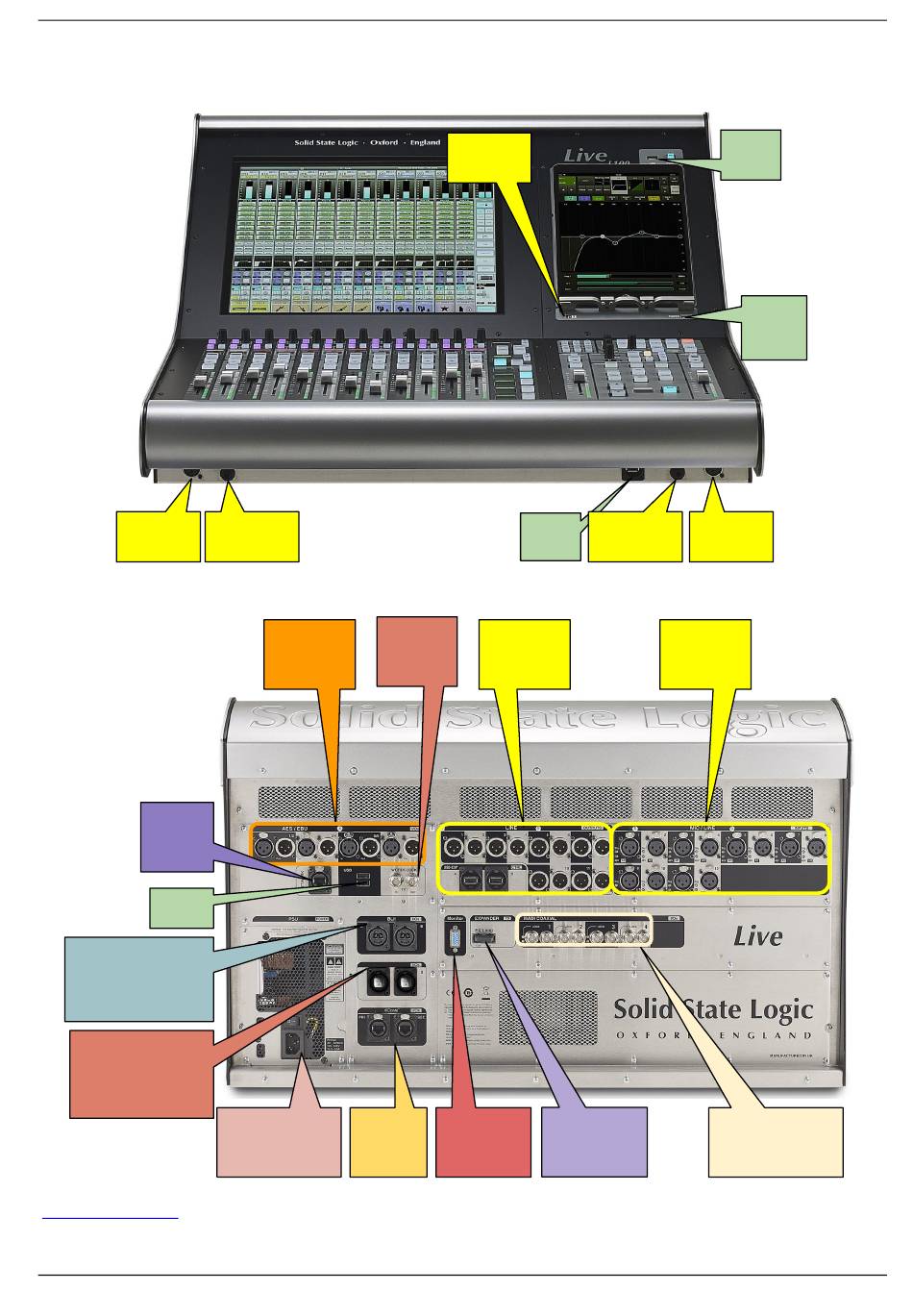

L100 Connections - Front

Female XLR
T/B Mic A Headphone A
*4

L100 Console Connections - Rear

Cat 5e
Network
*14
USB
*8a
Optional Blacklight II
Neutrik opticalCON
DUO Connectors
0 or 2 connectors
*3a
Optional X-Light
Neutrik opticalCON
QUAD Connectors
0 or 2 connectors
*22
Connections Key
www.solidstatelogic.com
¼" Jack
*10
AES 1-8
Wordclock
4pr In
4pr Out
*5
Mains Power Inlet Optional
(Redundant PSU Dante
option available) Interface
*1 *9
⅛" Stereo
iJack Input
*11
USB
*8a
Analogue
Line OP
*13
1-12
*4
VGA Monitor
Local SC Fibre
for Ext
MADI FX Loop
Overview
*7
USB
*8a
Power
USB Port
¼" Jack Female XLR
Headphone B T/B Mic B
*10 *4
Analogue
Mic/Line IP
1-12
*4
Local MADI
4 Ports Coaxial
*6
Page 10 of 45
