Summary of Contents for Multitech MultiConnect MTCAPW-L12G2

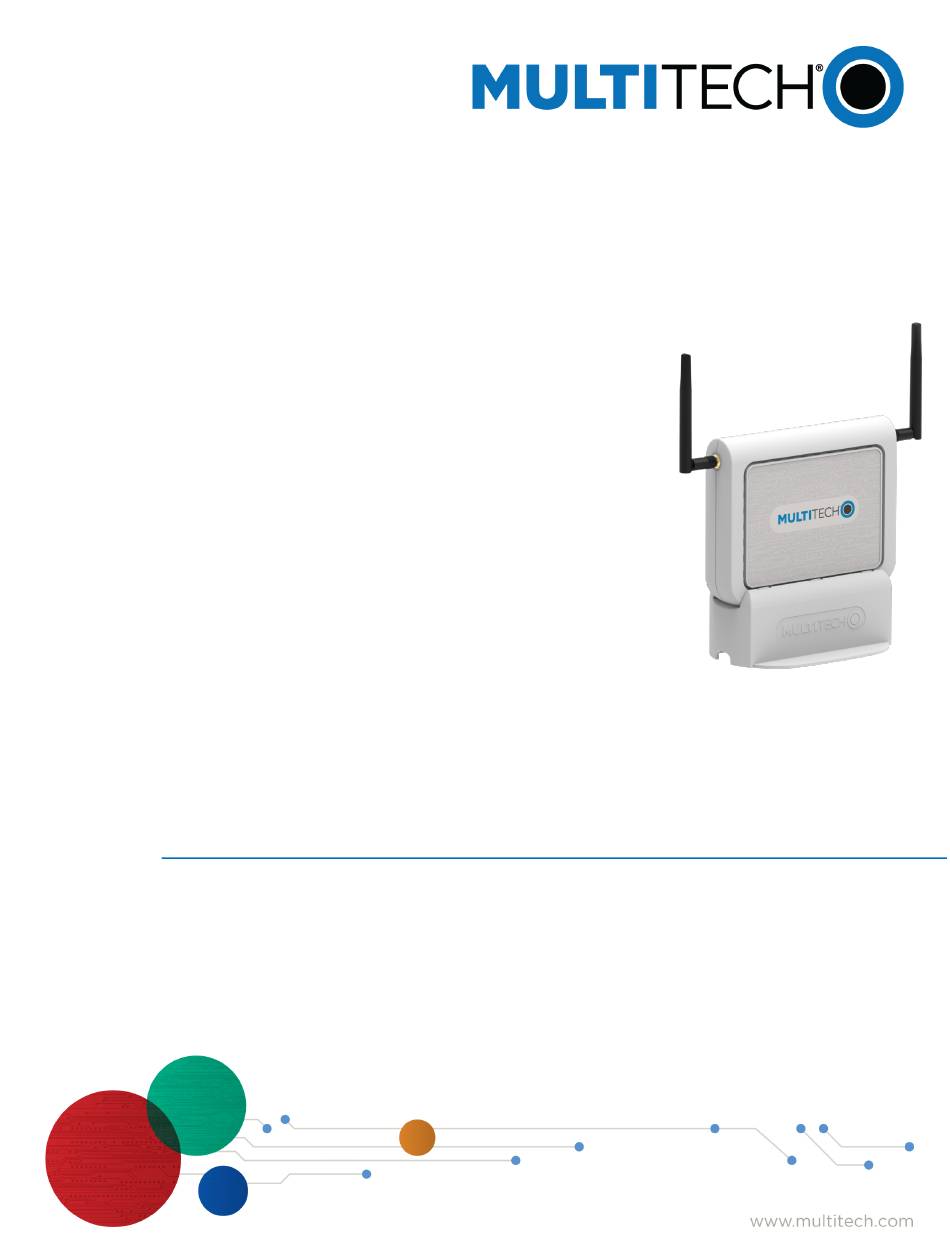

- Page 1 ® MultiConnect CBRS Wi-Fi AP MTCAPW-L12G2 Admin Guide...
- Page 2 Legal Notices The MultiTech products are not designed, manufactured or intended for use, and should not be used, or sold or re-sold for use, in connection with applications requiring fail-safe performance or in applications where the failure of the products would reasonably be expected to result in personal injury or death, significant property damage, or serious physical or environmental damage.
-
Page 3: Table Of Contents
CONTENTS Contents Chapter 1 – Product Overview ..........................5 MultiConnect CBRS Wi-Fi AP............................5 About this document ..............................5 Package Contents................................5 Package Contents................................ 5 System Requirements ..............................5 MTCAPW Specifications ..............................5 All Models ................................... 5 LED Indicators ................................7 Antenna.................................. - Page 4 CONTENTS WiFi Status ................................19 LAN Client List ................................20 WAN and Internet Setup for 4G ..........................20 Ethernet LAN................................21 NAT....................................21 Routing ..................................22 Static Routing ................................22 Dynamic DNS................................22 DHCP Server ................................22 Advanced Network..............................23 Configuration ................................
-
Page 5: Chapter 1 - Product Overview

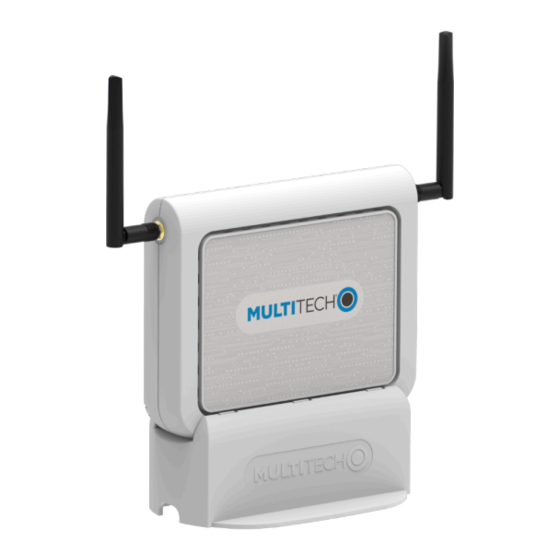

PRODUCT OVERVIEW Chapter 1 – Product Overview MultiConnect CBRS Wi-Fi AP ® This Admin Guide provides information on the MultiConnect CBRS Wi-Fi AP. The Multiconnect CBRS Wi-Fi AP is a 4G/LTE CBRS Wi-Fi to Cellular access point used to enable devices with internet service. It is an alternative to cellular routers in applications where there is a need for remote access without using local wired networks. - Page 6 PRODUCT OVERVIEW Standards CBRS 4G LTE Cat 12 TDD LTE Bands 42, 43, and 48 for CBRS/private LTE 2xCA (UL) B42+B42 2xCA (DL) B42+B42, B48+B48 3xCA (DL) B42+B42+B42; B48+B48+B48 DL 256QAM: Y 3FF Micro SIM Wi-Fi (2 - Internal Antennas) 2.4GHz 802.11bgn Physical Description Dimensions...
-
Page 7: Led Indicators
PRODUCT OVERVIEW LED Indicators ® MultiConnect CBRS Wi-Fi AP MTCAPW-L12G2 Admin Guide... -
Page 8: Antenna
PRODUCT OVERVIEW Antenna Devices were approved with the following antenna: Manufacturer: Wieson Description: LTE Antenna with SMA-Male Connector Model Number GY115IE002-001 MultiTech ordering information: Model Quantity ANLTE4-1HRA ANLTE4-2HRA ANLTE4-10HRA ANLTE4-50HRA Antenna Specifications Category Description Frequency Range 3.5 - 3.8 GHz... -
Page 9: Chapter 2 - Installation
INSTALLATION Chapter 2 – Installation ® MultiConnect CBRS Wi-Fi AP MTCAPW-L12G2 Admin Guide... - Page 10 INSTALLATION ® MultiConnect CBRS Wi-Fi AP MTCAPW-L12G2 Admin Guide...
- Page 11 INSTALLATION ® MultiConnect CBRS Wi-Fi AP MTCAPW-L12G2 Admin Guide...
-
Page 12: Chapter 3 - Setting Up And Onboarding Devices
DeviceHQ is a cloud-based device management tool for remote monitoring, upgrades, and configuration mPower devices. For information on creating and using a DeviceHQ account, go to the http://www.multitech.net/developer/software/devicehq/. Note: If you are not using DeviceHQ as the management system, disable DeviceHQ as the management system within the software. -
Page 13: Setting Up Mtcapw Ui For Devicehq
MTCAPW must be running firmware version 4.03 or above for DeviceHQ support. If new firmware becomes available, download firmware from the website and upgrade the device before proceeding. https://www.multitech.com/models/92507151LF In Basic Network, on the LAN Setup Screen: Enter and Define Site Name so it shows as Description in... -
Page 14: Setting Up A Configuration File On Devicehq
SETTING UP AND ONBOARDING DEVICES Click OK when prompted. Setting Up a Configuration File on DeviceHQ This is performed after logging in to DeviceHQ. Log In: Log in into device. Change default password on first log in. Change Settings: Navigate web UI settings and make changes based on use case and applications. DeviceHQ: Setup DeviceHQ with individual API key pair and change the check-in interval. -
Page 15: System Management (Tr-069)
SETTING UP AND ONBOARDING DEVICES System Management (TR-069) TR-069 (Technical Report 069) is a Broadband Forum technical specification entitled CPE WAN Management Protocol (CWMP). It defines an application layer protocol for remote management of end-user devices, like this gateway device. As a bidirectional SOAP/HTTP-based protocol, it provides the communication between customer- premises equipment (CPE) and Auto Configuration Servers (ACS). -
Page 16: Devicehq Onboarding
SETTING UP AND ONBOARDING DEVICES STUN Settings Server Address Specify the IP address for the expected String format: any IPv4 STUN Server address It is an optional Item Server Port Specify the port number for expected STUN An optional setting Server. -
Page 17: Device Onboard Troubleshooting
SETTING UP AND ONBOARDING DEVICES setup PC Ethernet with static IP 192.168.2.2 DeviceHQ account setup Login, sign up and register to DeviceHQ with a new account Need to generate a new Device / Machine API key pair Need to create a MTCAPW mater configuration file with the machine API key pair in step 2 and all other settings Test out device with the master configuration file to make sure everything is working based on customer requirements... -
Page 18: Chapter 4 - Device Management
DEVICE MANAGEMENT Chapter 4 – Device Management WiFi Setup The WiFi settings allow you to set the wireless LAN configuration. Once the configurations is complete, your device will be ready to support your local WiFi devices. This allows you to connect wired and wireless devices with NAT. In this mode, the gateway is a WiFi AP and a hotspot. -
Page 19: Wireless Client List
DEVICE MANAGEMENT Authentication Type Description WPA-PSK/WPA2-PSK This mode is used when some clients only support WPA-PSK and others use WPA2- PSK. You don't need an additional RADIUS server for user authentication. WPA/WPA2 This mode is used when some clients only support WPA and others use WPA2. The key value is shared by the device and RADIUS server. -
Page 20: Lan Client List
DEVICE MANAGEMENT LAN Client List LAN Client List: This shows a list of all the current Ethernet and WiFi client devices that are detected and active on the LAN and WiFi interfaces. WAN and Internet Setup for 4G This device has Cellular WAN interfaces. Configure these individually to maximize Internet connection setup. To configure Cellular WAN settings go to Basic Network >... -
Page 21: Ethernet Lan
DEVICE MANAGEMENT Data Load Check: Enable this option if there are continuous incoming and outgoing data packets passing through the WAN connection. If no data traffic is detected for the duration of the check interval, it disconnects and reconnects the cellular WAN connection. Check Interval: Indicate how often to check the data traffic on the WAN connection. -
Page 22: Routing
DEVICE MANAGEMENT Server IP: Enter the LAN device IP address. Private Port: Enter the LAN device IP port number. Protocol: Select TCP or UDP or both. Time Schedule: Select a time schedule when this rule will take effect. Rule: Check to enable the rule. DMZ (Demilitarized Zone) Host: This is a host without the protection of a firewall. -
Page 23: Advanced Network
DEVICE MANAGEMENT Subnet Mask: Select the subnet mask for the DHCP server. The subnet mask defines how many clients are allowed in one network or subnet. The default subnet mask is 255.255.255.0/24. This means a maximum of 254 IP addresses are allowed in the subnet. However, the gateway's LAN IP occupies one of them. IP Pool Starting/Ending Address: Specify the IP address pool's starting/ending addresses. -
Page 24: Options
DEVICE MANAGEMENT Options Stealth Mode: When enabled, the router will not respond to port scans from the WAN. This makes the router less susceptible to discovery and attacks. SPI (Stateful Packet Inspection): Also known as dynamic packet filtering. This helps to prevent cyber attacks by tracking more states per session. -
Page 25: Chapter 5 - System
SYSTEM Chapter 5 – System System This section includes system information, system logs, system tools (i.e. firmware updates), scheduling, and external syslog server setup. Change Password Old, New, and Confirmation Password: To change your password, type in your old password, then enter in the new password in the new password and confirm password fields. -
Page 26: Scheduling
SYSTEM Backup/Restore Configuration Settings: Save all current settings to a configuration file or restore a backup configuration file. Scheduling Enable the schedule function and setup a rule for each schedule. The rule can be used in many other functions, such as scheduling an auto-reboot, scheduling an auto WAN connectivity, etc. Click Save to store all schedule settings. -
Page 27: Chapter 6 - Safety/Regulatory Information
SAFETY/REGULATORY INFORMATION Chapter 6 – Safety/Regulatory Information Ethernet Ports CAUTION: Ethernet ports and command ports are not designed to be connected to a public telecommunication network. Radio Frequency (RF) Safety Due to the possibility of radio frequency (RF) interference, it is important that you follow any special regulations regarding the use of radio equipment. -
Page 28: 47 Cfr Part 15 Regulation Class B Devices
SAFETY/REGULATORY INFORMATION Keep the device on the opposite side of the body from the pacemaker to add extra distance between the pacemaker and the device. Avoid placing a turned-on device next to the pacemaker (for example, don’t carry the device in a shirt or jacket pocket directly over the pacemaker). -
Page 29: Fcc Grant Information
SAFETY/REGULATORY INFORMATION FCC Grant Information FCC Class B Part 15 FCC Identifier: XMR201909EG12GT Equipment Class: Part 15 Class B Computing Device Peripheral Notes: LTE-A Cat 12 LGA Module Approval: Single Modular FCC Part 96 FCC Identifier: XMR201909EG12GT Equipment Class: Citizens Band End User Devices Notes: LTE-A Cat 12 LGA Module Approval:... - Page 30 SAFETY/REGULATORY INFORMATION that the final composite product complies with the FCC requirements by a technical assessment or evaluation to the FCC rules, including the transmitter operation and should refer to guidance in KDB 996369. Approval is limited to OEM installation only. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device.
-
Page 31: Restriction Of The Use Of Hazardous Substances (Rohs)
Substances) complements the WEEE Directive by banning the presence of specific hazardous substances in the products at the design phase. The WEEE Directive covers all MultiTech products imported into the EU as of August 13, 2005. EU-based manufacturers, distributors, retailers and importers are obliged to finance the costs of recovery from municipal collection points, reuse, and recycling of specified percentages per the WEEE requirements. - Page 32 SAFETY/REGULATORY INFORMATION it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or where you purchased the product.
