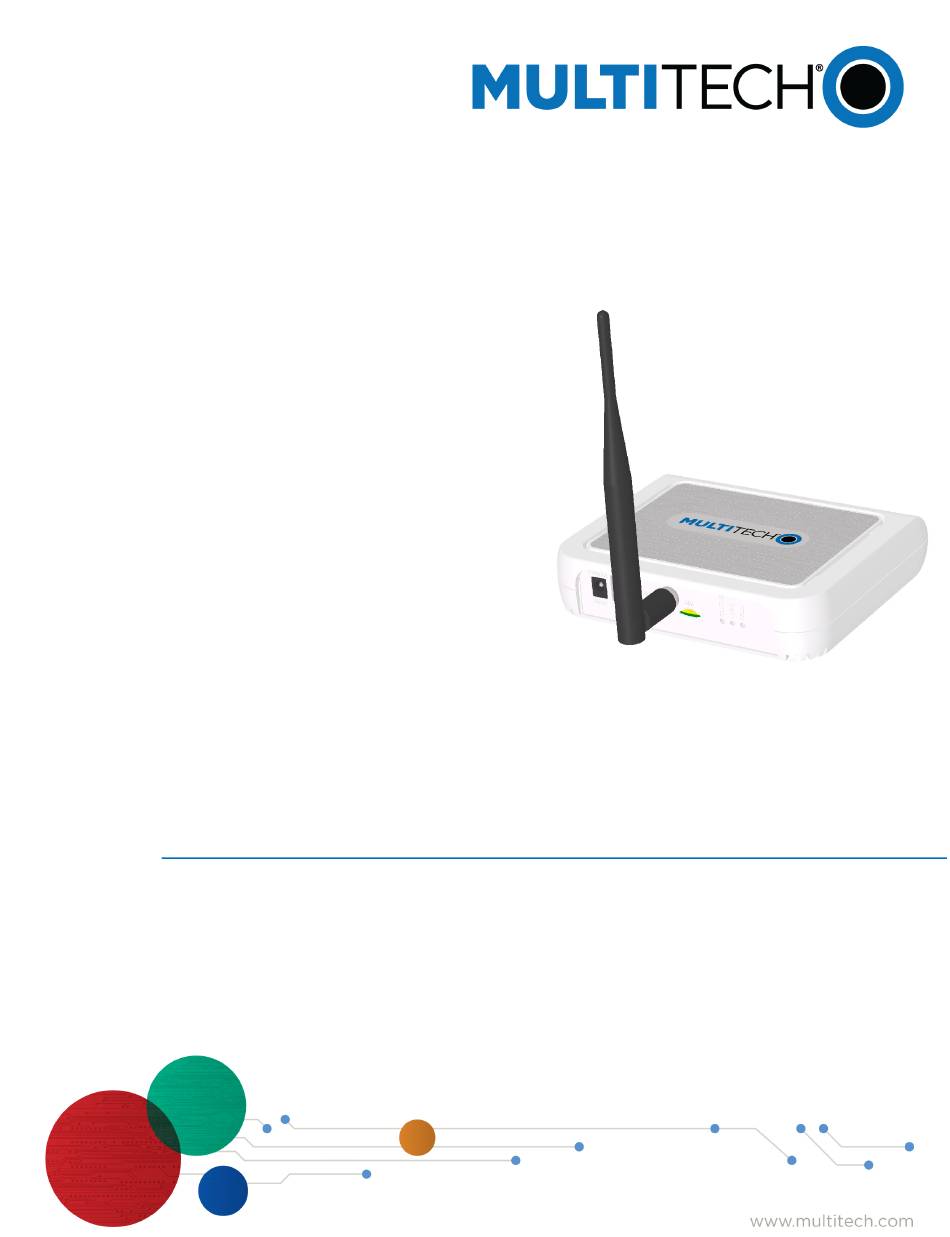

- Page 1 ® Conduit MTCAP2-LNA3-915-042x-POE and MTCAP2-915- 042x-POE User Guide...
- Page 2 Legal Notices The MultiTech products are not designed, manufactured or intended for use, and should not be used, or sold or re-sold for use, in connection with applications requiring fail-safe performance or in applications where the failure of the products would reasonably be expected to result in personal injury or death, significant property damage, or serious physical or environmental damage.
-
Page 3: Table Of Contents
CONTENTS Contents Chapter 1 – Product Overview ..........................5 Overview ..................................5 Product Build Options ..............................5 Package Contents................................5 Documentation Overview ............................. 6 Developer Documentation............................6 Power over Ethernet (PoE) ............................6 Chapter 2 – Specifications and Hardware Information ..................... 7 Dimensions.................................. - Page 4 CONTENTS -LNA3-042 Models ..............................17 Chapter 5 – Setting Up Hardware........................... 18 Installing a SIM Card ..............................18 Removing a SIM Card..............................18 Attaching the Antenna ..............................18 Cabling the Device............................... 18 Chapter 6 – Getting Started ........................... 19 mPower Models ................................19 mLinux Models................................
-
Page 5: Chapter 1 - Product Overview
LoRa end points and a centrally located network server on the cloud, in a data center, or a public network. Note: Check for an updated version of this document at https://www.multitech.com/brands/multiconnect- conduit-ap/. Product Build Options Product... -
Page 6: Documentation Overview
PRODUCT OVERVIEW Documentation Overview The following documents are available at http://www.multitech.com/brands/multiconnect-conduit-ap. Select your model to find the documents specific for that device. Document Description Part Number Conduit AP MTCAP2-LNA3-915-042x and This document. Hardware, regulatory, and S000745 MTCAP2-915-042x User Guide getting started information. -
Page 7: Chapter 2 - Specifications And Hardware Information
SPECIFICATIONS AND HARDWARE INFORMATION Chapter 2 – Specifications and Hardware Information Dimensions ® Conduit AP MTCAP2-LNA3-915-042x-POE and MTCAP2-915-042x-POE User Guide... -
Page 8: Specifications
SPECIFICATIONS AND HARDWARE INFORMATION Specifications Category Description General Standards LoRaWAN 1.0.2 specifications LTE 3GPP Release 9 HSPA+ 256MB Flash 256MB Radio Frequency ISM Band 915 MHz ISM band for US and Canada 4G/LTE 1900 (B2) / AWS 1700 (B4) / 850 (B5) / 700 (B12/13) 1900 (B2) / 850 (B5) Physical Description Weight... -
Page 9: Connectors And Leds
SPECIFICATIONS AND HARDWARE INFORMATION Connectors and LEDs LoRa only models LoRa and cellular radio models Item Description Connectors Power 5 Volt power jack. Ethernet RJ45 Ethernet jack. Reset Reset button. Reboots device or restores factory defaults. Refer to Resetting the Device details. -
Page 10: Resetting The Device
SPECIFICATIONS AND HARDWARE INFORMATION Resetting the Device You need: A pin, paperclip, or similar thin object that can fit into the reset hole To reset the device: Find the hole labeled RESET. The reset button is recessed into the case. Use the pin to press and release the RESET button as follows: Reset options: To reboot, press RESET for less than 3 seconds. -
Page 11: Mtcap2-Lna3-915
Pulse Electronics Antenna Manufacturer: Pulse Electronics Description: 868-928 MHz RP-SMA Antenna, 8" Model Number: W1063 MultiTech Part Number: 45009830L ® Conduit AP MTCAP2-LNA3-915-042x-POE and MTCAP2-915-042x-POE User Guide... - Page 12 SPECIFICATIONS AND HARDWARE INFORMATION MultiTech ordering information: Ordering Part Number Quantity AN868-915A-1HRA AN868-915A-10HRA AN868-915A-50HRA Antenna Specifications Category Description Frequency Range 868-928 MHz Impedance 50 Ohms VSWR < 2.0 Gain 3.0 dBi Radiation Omni Polarization Vertical ® Conduit AP MTCAP2-LNA3-915-042x-POE and MTCAP2-915-042x-POE User Guide...
-
Page 13: Chapter 3 - Safety Information
Power over Ethernet (PoE) Certification does not apply or extend to voltages outside of standard PoE range. Any PoE voltages beyond 0vdc to 60Vdc have not been evaluated by UL or MULTITECH. Nominal PoE voltage is 38 Vdc to 57 VDC. The end user supplies the PoE cable. -
Page 14: General Safety
SAFETY INFORMATION General Safety The device is designed for and intended to be used in fixed and mobile applications. Fixed means the device is physically secured at one location and cannot be easily moved to another location. Mobile means the device is used in other than fixed locations. -
Page 15: Interference With Pacemakers And Other Medical Devices
SAFETY INFORMATION Éteignez votre appareil sans fil à proximité des pompes à essence ou de diesel avant de remplir le réservoir de votre véhicule de carburant. Éteignez votre appareil sans fil dans les hôpitaux ou dans toutes les zones où des appareils médicaux sont susceptibles d'être utilisés. -
Page 16: Ul Notice
Do not place the device alongside computer discs, credit or travel cards, or other magnetic media. The information contained on discs or cards may be affected by the device. Using accessories, such as antennas, that MultiTech has not authorized or that are not compliant with MultiTech's accessory specifications may invalidate the warranty. -
Page 17: Chapter 4 - Labels
(2) this device must accept any interference received, including interference that may cause undesired operation. The label shown is not the actual size. 1 - MultiTech Model Identification. 2 - MultiTech Ordering Part Number. 3 - IMEI Number 4 - Device Node Number 5 - UUID... -
Page 18: Chapter 5 - Setting Up Hardware
SETTING UP HARDWARE Chapter 5 – Setting Up Hardware Installing a SIM Card Models with cellular capability have a micro SIM slot, you'll need a micro (3FF) SIM card from your network provider. Note: -LNA3 models work on both Verizon and AT&T networks. The device detects the carrier based on your SIM card. -
Page 19: Chapter 6 - Getting Started
If your device uses the mPower platform, getting started information is in mPower Software Guide (S000727), available through your model's page at https://www.multitech.com/brands/multiconnect-conduit-ap mLinux Models If your device uses the mLinux platform, getting started information is at http://www.multitech.net/developer/software/mlinux/getting-started-with-conduit-mlinux/ Dual Carrier Firmware for Cellular Radio This device uses a cellular radio with dual carrier firmware meaning that it can be used on different carrier networks (not simultaneously). -
Page 20: Chapter 7 - Mounting The Device
MOUNTING THE DEVICE Chapter 7 – Mounting the Device Mounting the Device The device ships with a mounting bracket. You will need Device Mounting bracket Four #6 screws, with anchors (not provided) Screwdriver Drill Mounting Bracket Determining Location Follow these guidelines for best performance: For optimal performance, place the device at a level higher than the end devices. -
Page 21: Mounting The Device
MOUNTING THE DEVICE Select a location central to all devices to be connected to this device. Avoid obstructions. Important: Thick walls and reflective surfaces, such as metal, weaken the signal between the device and other devices. We recommend conducting a site survey to test the signal strength in different locations before you mount the device. - Page 22 MOUNTING THE DEVICE ® Conduit AP MTCAP2-LNA3-915-042x-POE and MTCAP2-915-042x-POE User Guide...
- Page 23 MOUNTING THE DEVICE ® Conduit AP MTCAP2-LNA3-915-042x-POE and MTCAP2-915-042x-POE User Guide...
-
Page 24: Chapter 8 - Regulatory And Environmental Information
REGULATORY AND ENVIRONMENTAL INFORMATION Chapter 8 – Regulatory and Environmental Infor- mation 47 CFR Part 15 Regulation Class B Devices This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. - Page 25 REGULATORY AND ENVIRONMENTAL INFORMATION Rule Parts Frequency Range Output Wats Frequency Tolerance Emission Designator 824.2 - 848.2 0.42554 1.0 PM 248KG7W 1850.2 - 1909.8 0.93325 1.0 PM 253KGXW 1850.2 - 1909.8 0.23439 1.0 PM 246KG7W 826.4 846.6 0.21727 1.0 PM 4M16G9W 826.4 - 846.6 0.20845...
-
Page 26: Industry Canada Class B Notice
Substances) complements the WEEE Directive by banning the presence of specific hazardous substances in the products at the design phase. The WEEE Directive covers all MultiTech products imported into the EU as of August 13, 2005. EU-based manufacturers, distributors, retailers and importers are obliged to finance the costs of recovery from municipal collection points, reuse, and recycling of specified percentages per the WEEE requirements. - Page 27 REGULATORY AND ENVIRONMENTAL INFORMATION about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or where you purchased the product. July, 2005 ® Conduit AP MTCAP2-LNA3-915-042x-POE and MTCAP2-915-042x-POE User Guide...
-
Page 28: Restriction Of The Use Of Hazardous Substances (Rohs)
2015/863 of the European Parliament (Restriction of the use of certain Hazardous Substances in electrical and electronic equipment - RoHS 3). These MultiTech products do not contain the following banned chemicals Lead, [Pb] < 1000 PPM Mercury, [Hg] <... -
Page 29: Information On Hs/Ts Substances According To Chinese Standards
REGULATORY AND ENVIRONMENTAL INFORMATION Information on HS/TS Substances According to Chinese Standards In accordance with China's Administrative Measures on the Control of Pollution Caused by Electronic Information Products (EIP) # 39, also known as China RoHS, the following information is provided regarding the names and concentration levels of Toxic Substances (TS) or Hazardous Substances (HS) which may be contained in Multi-Tech Systems Inc. -
Page 30: Information On Hs/Ts Substances According To Chinese Standards (In Chinese)
REGULATORY AND ENVIRONMENTAL INFORMATION Information on HS/TS Substances According to Chinese Standards (in Chinese) 依 依 照 照 中 中 国 国 标 标 准 准 的 的 有 有 毒 毒 有 有 害 害 物 物 质 质 信 信 息 息 根据中华人民共和国信息产业部... -
Page 31: Index
INDEX Index antenna .................11 Industry Canada attach ...............18 Class B ..............26 interférence des radiofréquences.........14 build options ..............5 labels ................17 LEDs.................9 LORA LED.................9 CELL LED ................9 certifications..............8 Chinese hazardous substances Chinese version............30 maintenance ..............15 English version ............29 mLinux................19 Class B ................24 modem Industry Canada ............26 safety ...............14... - Page 32 INDEX specifications..............8 static................13 transmission ..............8 STATUS LED ..............9 sécurité................13 interférences RF............14 user responsibility............16 ® Conduit AP MTCAP2-LNA3-915-042x-POE and MTCAP2-915-042x-POE User Guide...
